XM-C6M5-0419D
XR-C6M5-0419D ROHS

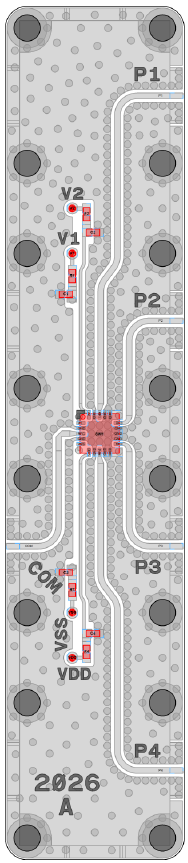

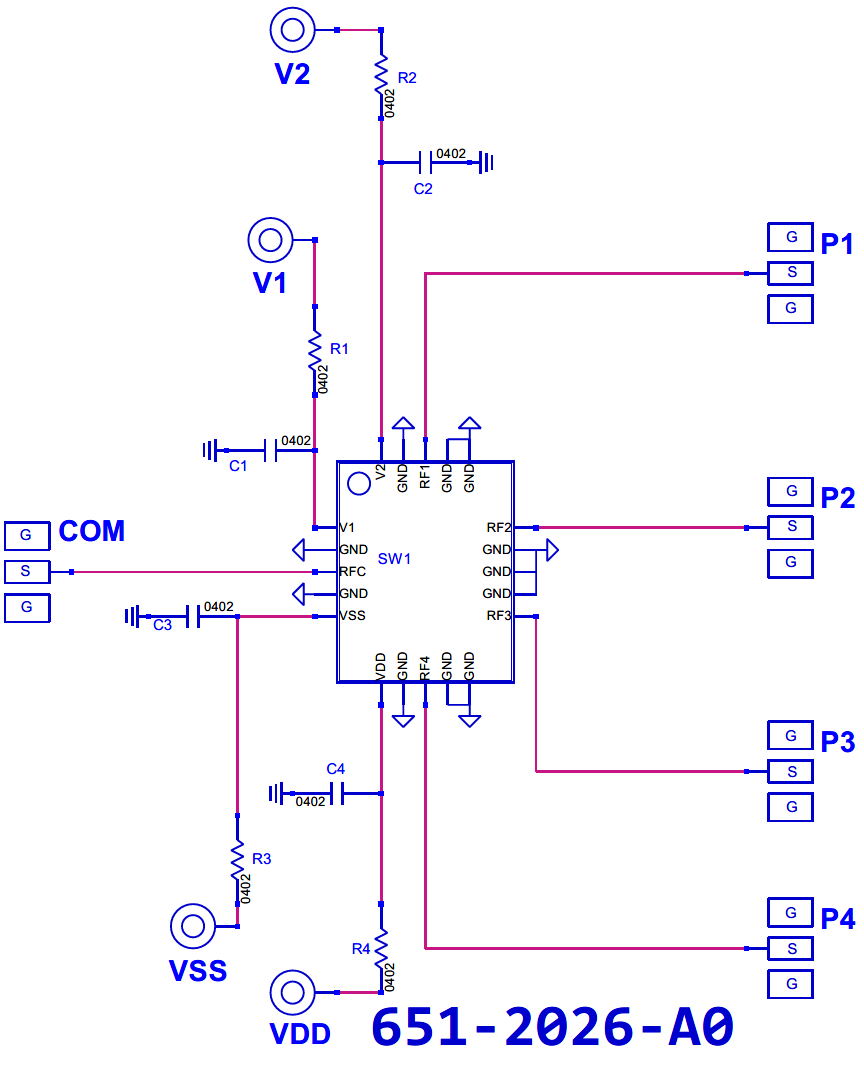

Switch, ADRF5046XCCZN [PCB: 2026]
Recommended Bias Controller: XM-B9E1-0416D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5046XCCZN

Low Freq

 N/A 100 MHz

High Freq

 N/A 44000 MHz

IL

 N/A 1.5 dB

P1dB

 N/A 27.5 dBm

IP3

 N/A 50 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.15V to +3.45V @3uA
VSS = -3.15V to -3.45V @-110uA
V1,2 HIGH = +1.2V to +3.3V @ 35uA
V1,2 LOW = 0V to 0.8V @<1uA

State 1: [V1 = LOW] [V2 = LOW] [P1 = ON] [P2-4 = OFF]
State 2: [V1 = HIGH] [V2 = LOW] [P2 = ON] [P1,3,4 = OFF]
State 3: [V1 = LOW] [V2 = HIGH] [P3 = ON] [P1,2,4 = OFF]
State 4: [V1 = HIGH] [V2 = HIGH] [P4 = ON] [P1-3 = OFF]

Part Number

 N/A XR-C6M5-0419D
