XM-C6L8-0409D
XR-C6L8-0409D ROHS

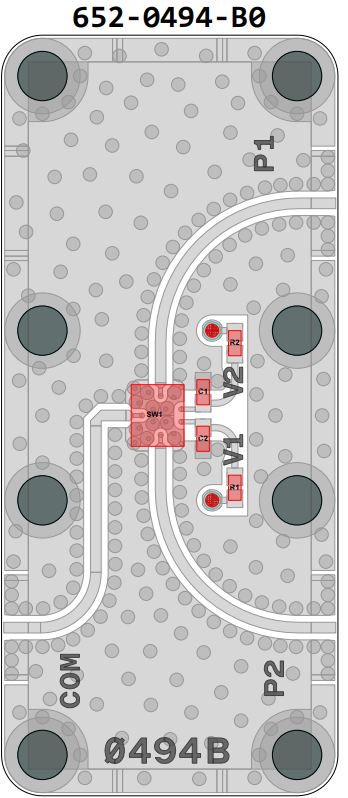

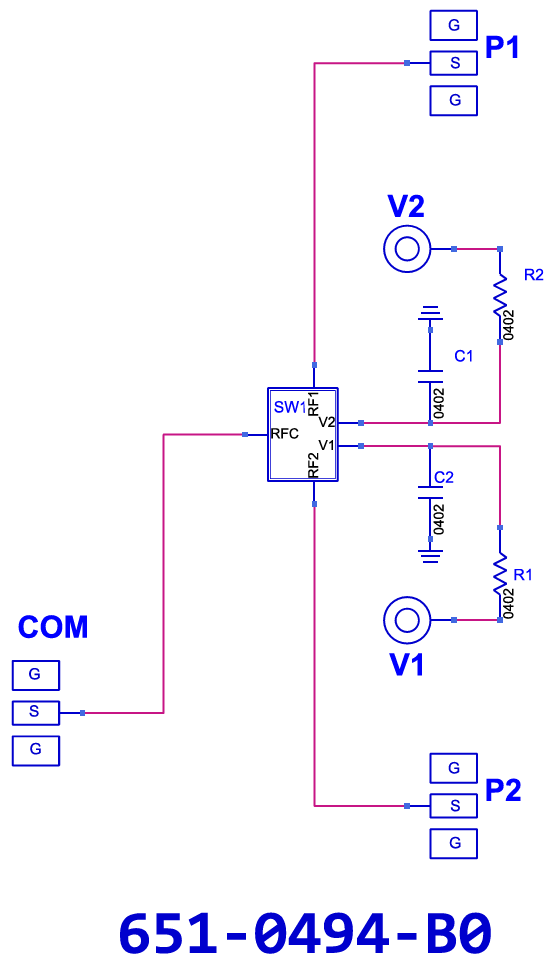

Switch, PE42525A [PCB: 0494]
Recommended Bias Controller: XM-A6K1-0409D-SP

Product Page

 N/A pSemi

Spec Sheet

 N/A PE42525A

Low Freq

 N/A 0.01 MHz

High Freq

 N/A 60000 MHz

IL

 N/A 1.3 dB

P1dB

 N/A 35 dBm

IP3

 N/A 48 dBm

N/A

Bias Instruction

 N/A

Notes: V1,2 = ±3V@390nA

State 1: [V1 = LOW] [V2 = LOW] [P1 = OFF] [P2 = OFF]
State 2: [V1 = LOW] [V2 = HIGH] [P1 = OFF] [P2 = ON]
State 3: [V1 = HIGH] [V2 = LOW] [P1 = ON] [P2 = OFF]
State 4: [V1 = HIGH] [V2 = HIGH] [P1 = ON] [P2 = ON]

Part Number

 N/A XR-C6L8-0409D
