XM-C6K9-0409D
XR-C6K9-0409D ROHS

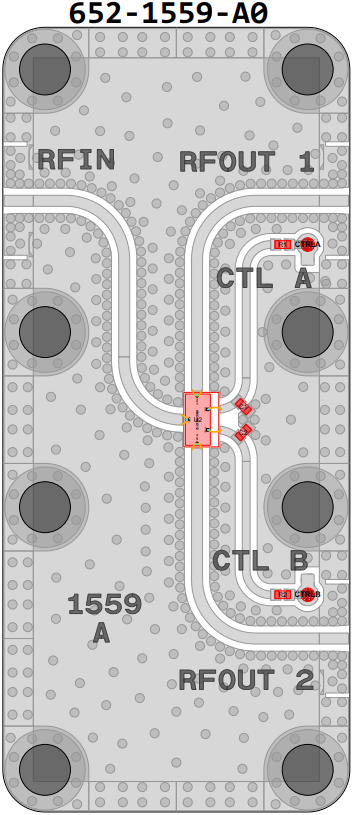

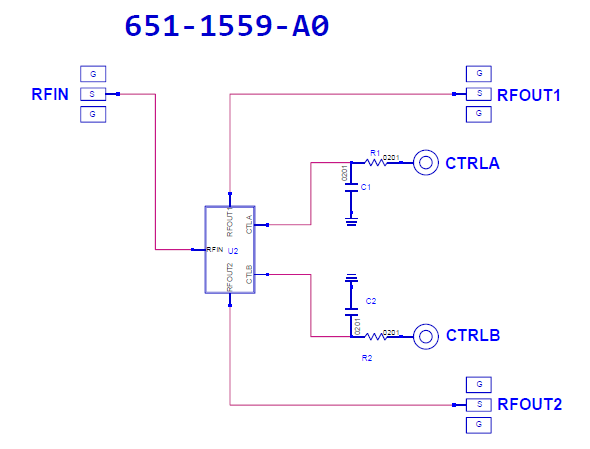

Switch, HMC-SDD112 [PCB: 1559]

Product Page

 N/A ADI

Spec Sheet

 N/A HMC-SDD112

Low Freq

 N/A 55000 MHz

High Freq

 N/A 86000 MHz

IL

 N/A 2 dB

Bias Instruction

 N/A

Notes: CTLA,B LOW = -5V @63nA
CTLA,B HIGH = +5V @22mA

State 1: [CTLA = LOW] [CTLB = HIGH] [RFOUT1 = ON] [RFOUT2 = OFF]
State 2: [CTLA = ] [CTLB = ] [RFOUT1 = OFF] [RFOUT2 = ON]

Part Number

 N/A XR-C6K9-0409D
