XM-C6G9-0409D
XR-C6G9-0409D ROHS

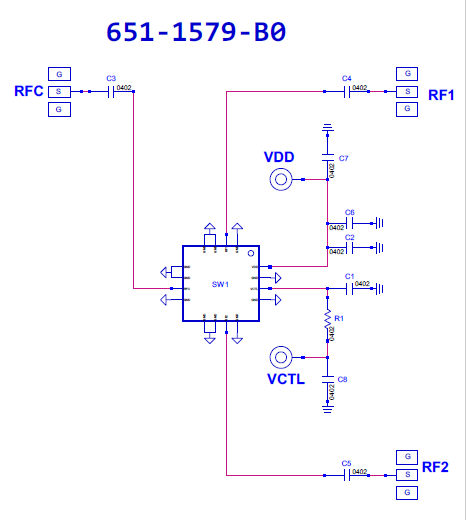

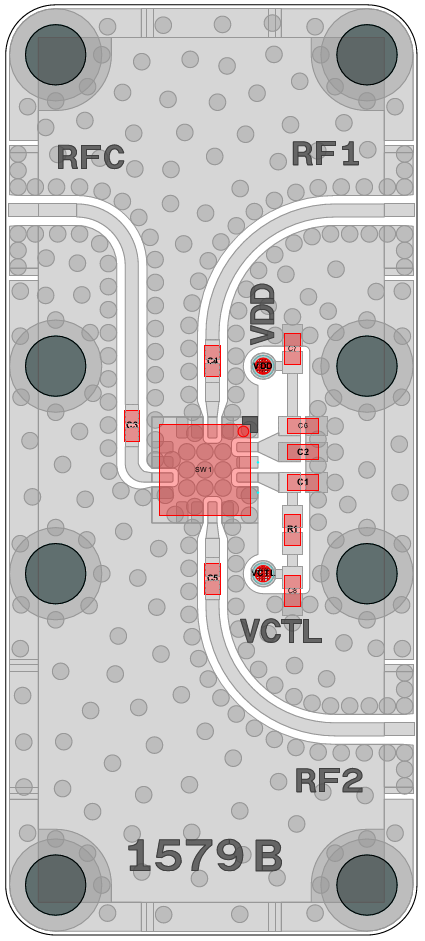

Switch, ADRF5132BCPZN [PCB: 1579]
Recommended Bias Controller: XM-A8D8-0409D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5132BCPZN

Low Freq

 N/A 700 MHz

High Freq

 N/A 5000 MHz

IL

 N/A 0.6 dB

P1dB

 N/A 42.5 dBm

IP3

 N/A 65 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +5V @1.1mA.
VCTL= 0V (LOW) or VDD(HIGH)


State 1: [CTL = LOW] [RF1 = ON] [RF2 = OFF]
State 2: [CTL = HIGH] [RF1 = OFF] [RF2 = ON]

Part Number

 N/A XR-C6G9-0409D
