XM-C6G1-0404C-01
XR-C6G1-0404C-01 ROHS

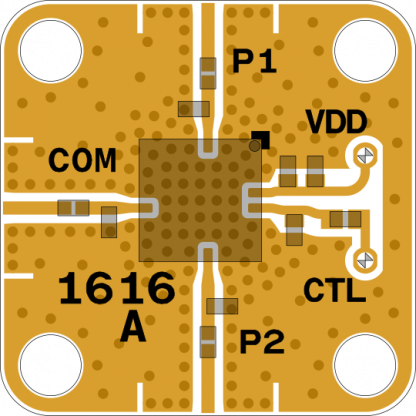

Switch, ADRF5130BCPZ [PCB: 1616]
Connectorized Housing
Included Bias Controller: XM-C6G2-0404D
Product Page |
N/A ADI |
Spec Sheet |
N/A ADRF5130BCPZ |
Low Freq |
N/A 700 MHz |
High Freq |
N/A 3800 MHz |
IL |
N/A 0.6 dB |
P1dB |
N/A 46 dBm |
IP3 |
N/A 68 dBm |
Connector Series |
N/A SuperSMA |
Bias Instruction |
N/A
Contact Us |
Part Number |
N/A XR-C6G1-0404C-01 |
