XM-C567-0409D
XR-C567-0409D ROHS

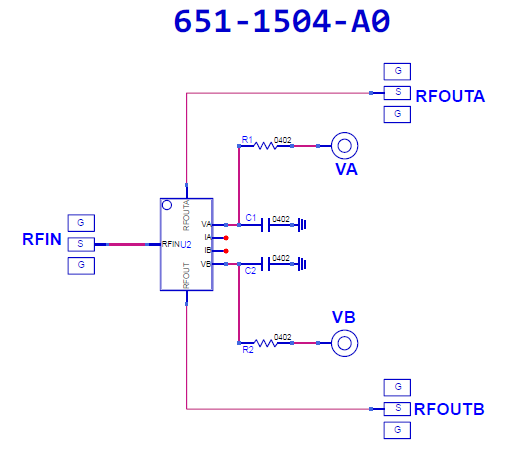

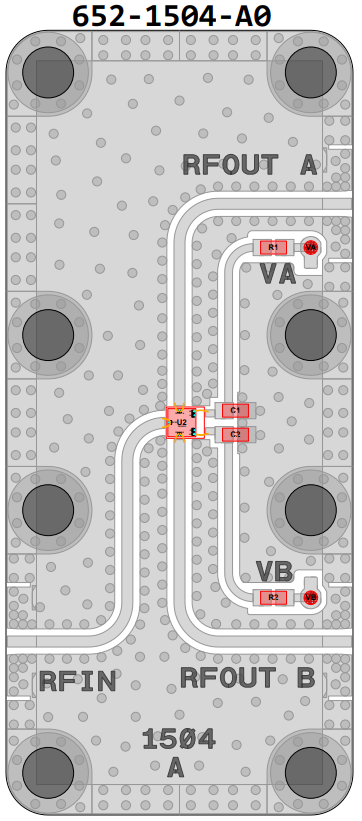

Switch, TGS4302 [PCB: 1504]
Recommended Bias Controller: XM-C3U6-0409D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A TGS4302

Low Freq

 N/A 27000 MHz

High Freq

 N/A 46000 MHz

IL

 N/A 0.9 dB

P1dB

 N/A 33 dBm

N/A

Bias Instruction

 N/A

Notes: VA,B = +5V (HIGH) or -4V (LOW)
IA,B = 0mA (HIGH) or 20mA(LOW)

State 1: [VA = HIGH] [VB = LOW] [RFOUTA = ON] [RFOUTB = OFF]
State 2: [VA = LOW] [VB = HIGH] [RFOUTA = OFF] [RFOUTB = ON]

Part Number

 N/A XR-C567-0409D
