XM-C3V7-0409D
XR-C3V7-0409D ROHS

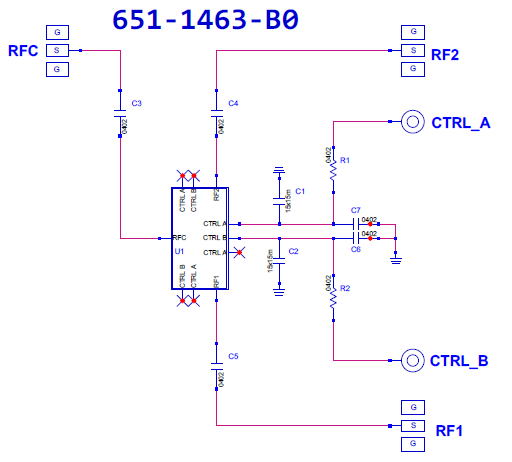

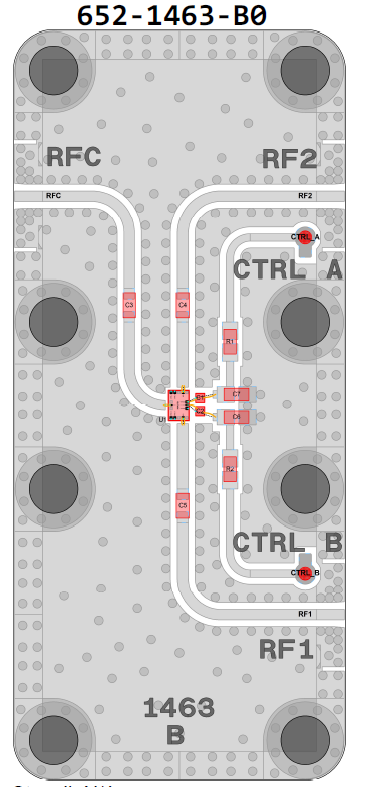

Switch, HMC347B [PCB: 1463]
Recommended Bias Controller: XM-C3V8-0409D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC347B

Low Freq

 N/A 100 MHz

High Freq

 N/A 20000 MHz

IL

 N/A 1.7 dB

P1dB

 N/A 25 dBm

IP3

 N/A 41 dBm

N/A

Bias Instruction

 N/A

Notes: VCTRLA,B = -5V @ 10uA (HIGH) or 0V @3uA (LOW)

State 1: [CTRLA = HIGH] [CTRLB = LOW] [RF1 = ON] [RF2 = OFF]
State 1: [CTRLA = LOW] [CTRLB = HIGH] [RF1 = OFF] [RF2 = ON]

Part Number

 N/A XR-C3V7-0409D
