XM-C2W5-0604D
XR-C2W5-0604D ROHS

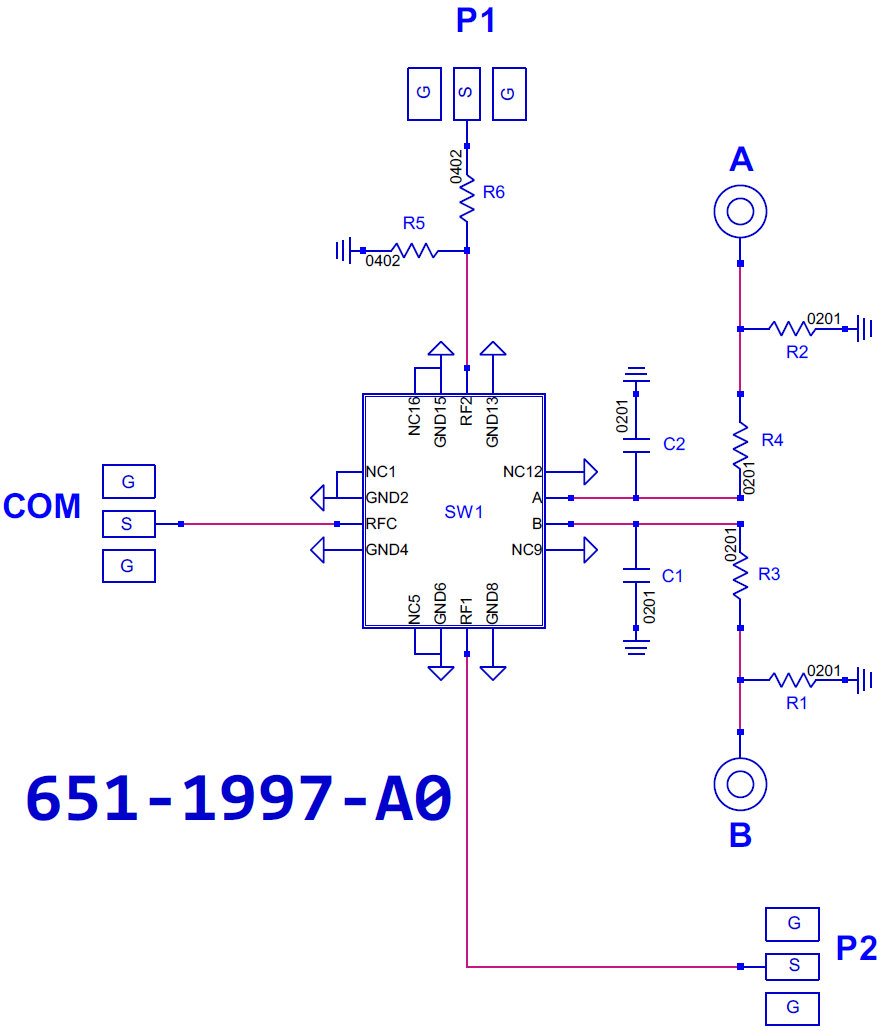

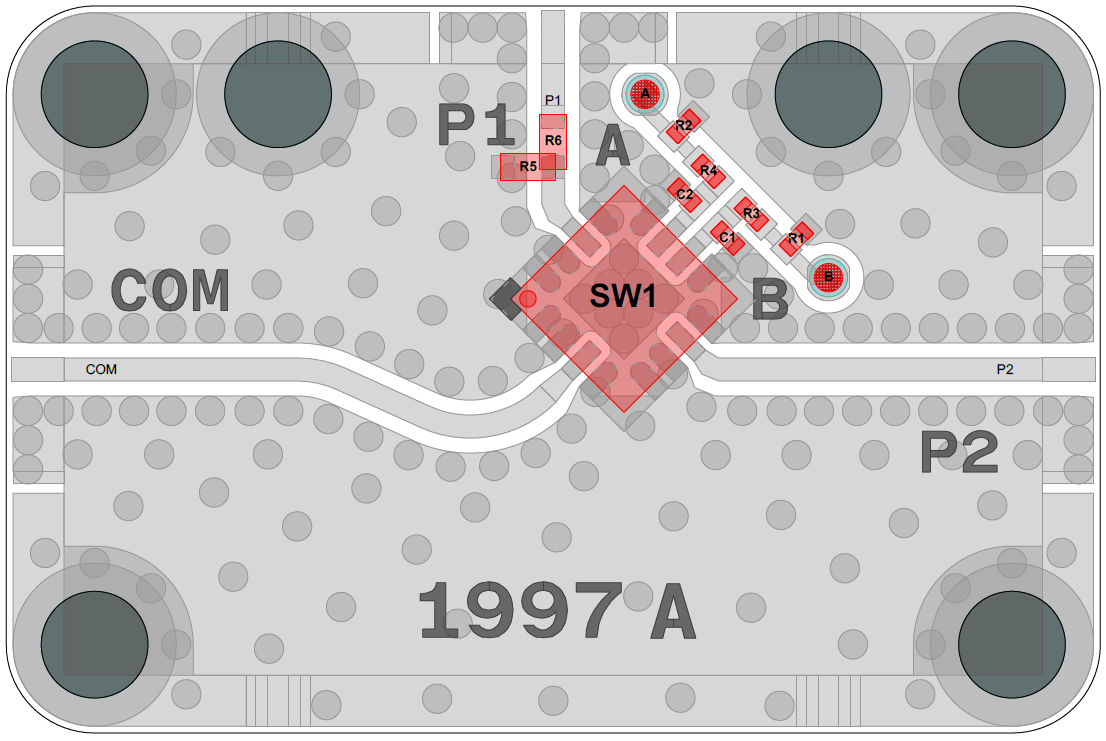

Switch, CMD196C3 [PCB: 1997]
Recommended Bias Controller: XM-A7K7-0404D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD196C3

Low Freq

 N/A 0 MHz

High Freq

 N/A 18000 MHz

IL

 N/A 1.5 dB

P1dB

 N/A 23 dBm

IP3

 N/A 38 dBm

N/A

Bias Instruction

 N/A

Notes: VA,B = 0V@1µA (LOW) or -5V@6µA max (HIGH)

State 1: [A = HIGH] [B = LOW] [P1 = OFF] [P2 = ON]
State 1: [A = LOW] [B = HIGH] [P1 = ON] [P2 = OFF]

Part Number

 N/A XR-C2W5-0604D
