XM-B9N9-0404D
XR-B9N9-0404D ROHS

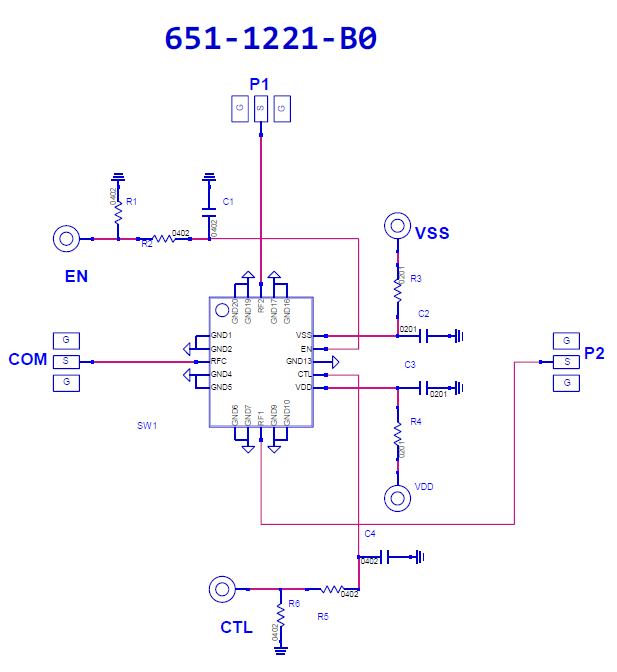

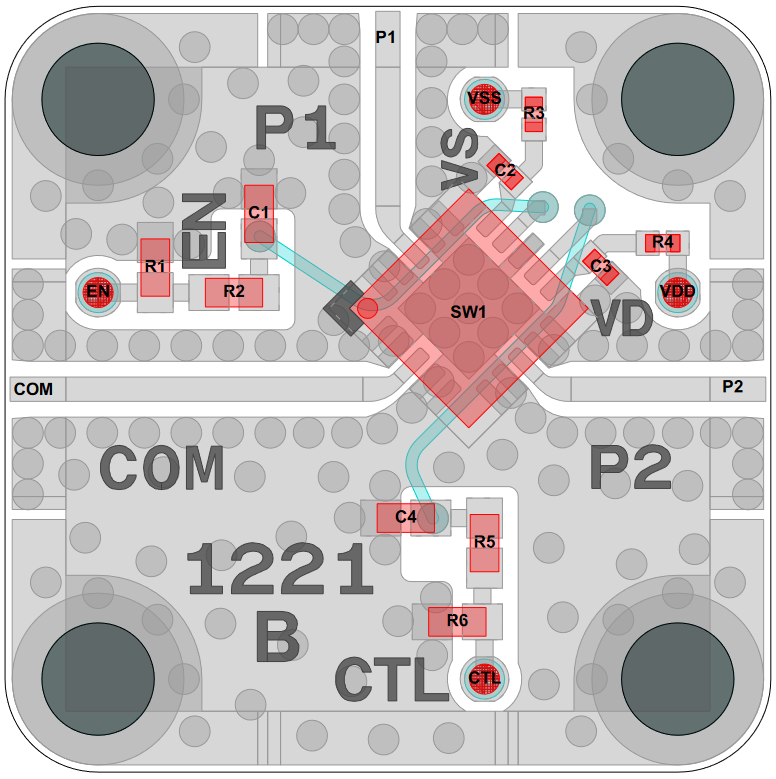

Switch, ADRF5020BCCZN [PCB: 1221]
Recommended Bias Controller: XM-B8R4-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5020BCCZN

Low Freq

 N/A 100 MHz

High Freq

 N/A 30000 MHz

IL

 N/A 2 dB

P1dB

 N/A 28 dBm

IP3

 N/A 52 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +5V@100uA
VSS = -2.5V@<1uA
Vctrl,En = 0V or VDD @<1uA

State 1: [EN = LOW] [CTL = LOW] [P1 = ON] [P2 = OFF]
State 2: [EN = LOW] [CTL = HIGH] [P1 = OFF] [P2 = ON]
State 3: [EN = HIGH] [CTL = LOW] [P1 = OFF] [P2 = OFF]
State 4: [EN = HIGH] [CTL = HIGH] [P1 = OFF] [P2 = OFF]

Part Number

 N/A XR-B9N9-0404D
