XM-B9N5-0406D
XR-B9N5-0406D ROHS

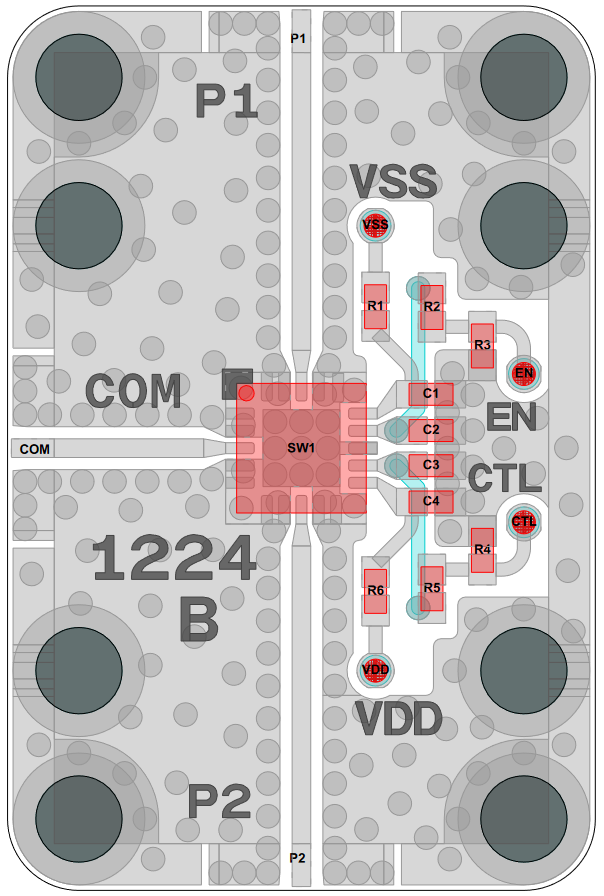

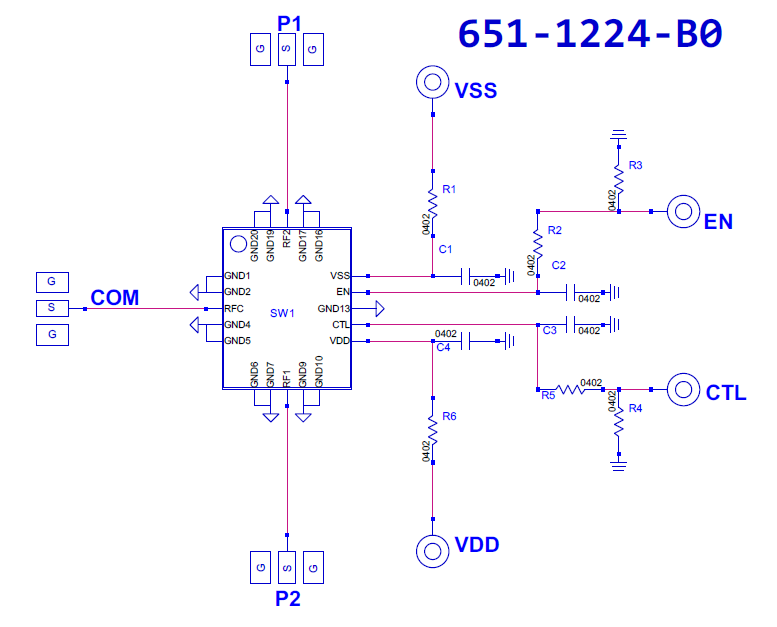

Switch, ADRF5026BCCZN [PCB: 1224]
Recommended Bias Controller: XM-B9P3-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5026BCCZN

Low Freq

 N/A 100 MHz

High Freq

 N/A 44000 MHz

IL

 N/A 1.2 dB

P1dB

 N/A 27 dBm

IP3

 N/A 53 dBm

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply +VDD = +3.3V @2uA
2. Apply -VSS = -3.3V @100uA
3. Apply Control Voltage to CTL / EN
(0V = Low, +3.3V = High)
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust CTL/EN to 0V
3. Adjust -VSS to 0V
4. Adjust +VDD to 0V

State 1: [EN = LOW] [CTL = LOW] [P1 = ON] [P2 = OFF]
State 2: [EN = LOW] [CTL = HIGH] [P1 = OFF] [P2 = ON]
State 3: [EN = HIGH] [CTL = LOW] [P1 = OFF] [P2 = OFF]
State 4: [EN = HIGH] [CTL = HIGH] [P1 = OFF] [P2 = OFF]

Part Number

 N/A XR-B9N5-0406D
