XM-B6G9-0404D
XR-B6G9-0404D ROHS

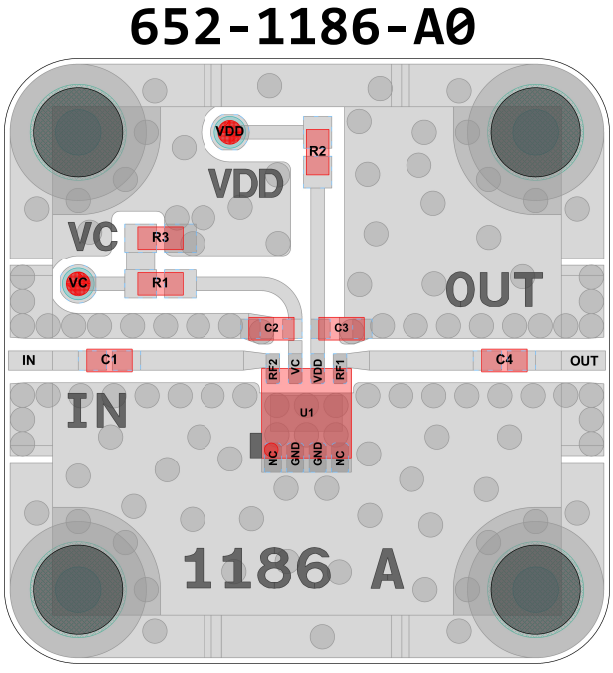

Switch, QPC6014 [PCB: 1186]
Recommended Bias Controller: XM-C6A9-0404D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPC6014

Low Freq

 N/A 5 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.84 dB

P1dB

 N/A 36 dBm

IP3

 N/A 58 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V@75µA (or VDD=+5V)
VC = 0V(LOW) or +VDD@0.1µA (HIGH)

State 1: [VC = LOW] [IN to OUT OFF]
State 1: [VC = HIGH] [IN to OUT ON]

Part Number

 N/A XR-B6G9-0404D
