XM-B2M8-0609D
XR-B2M8-0609D ROHS

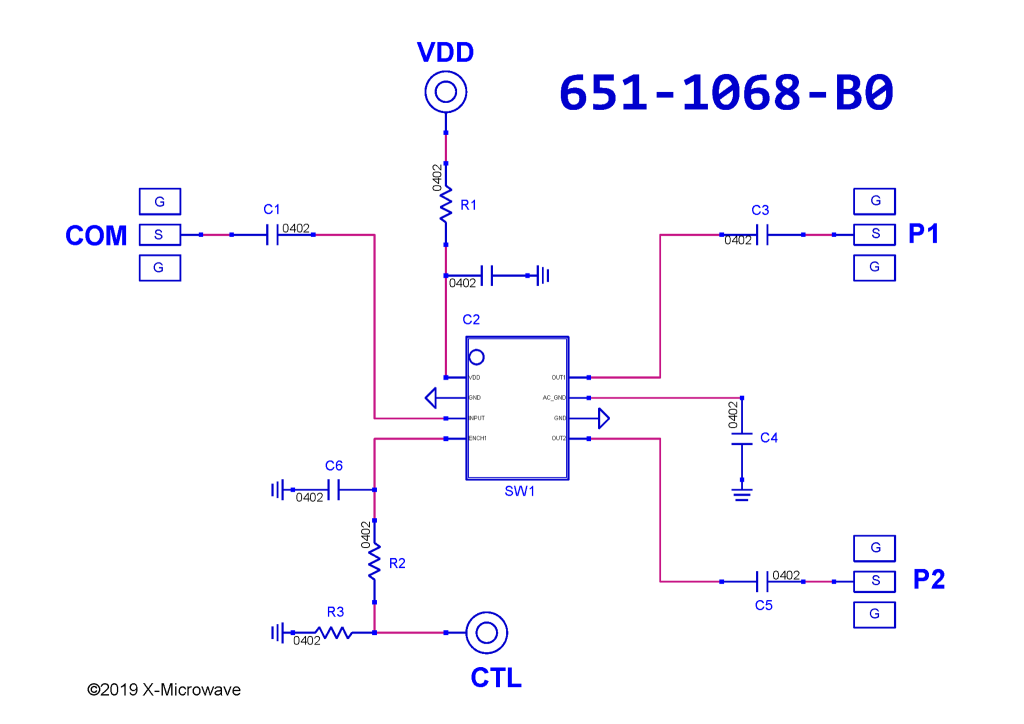

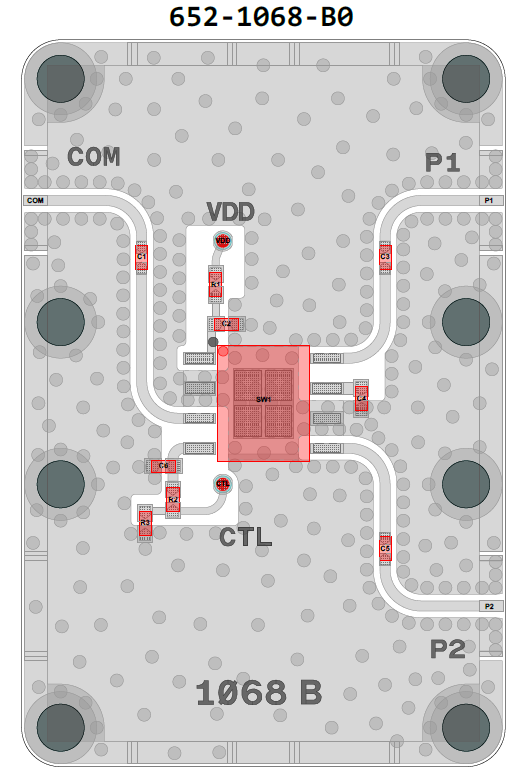

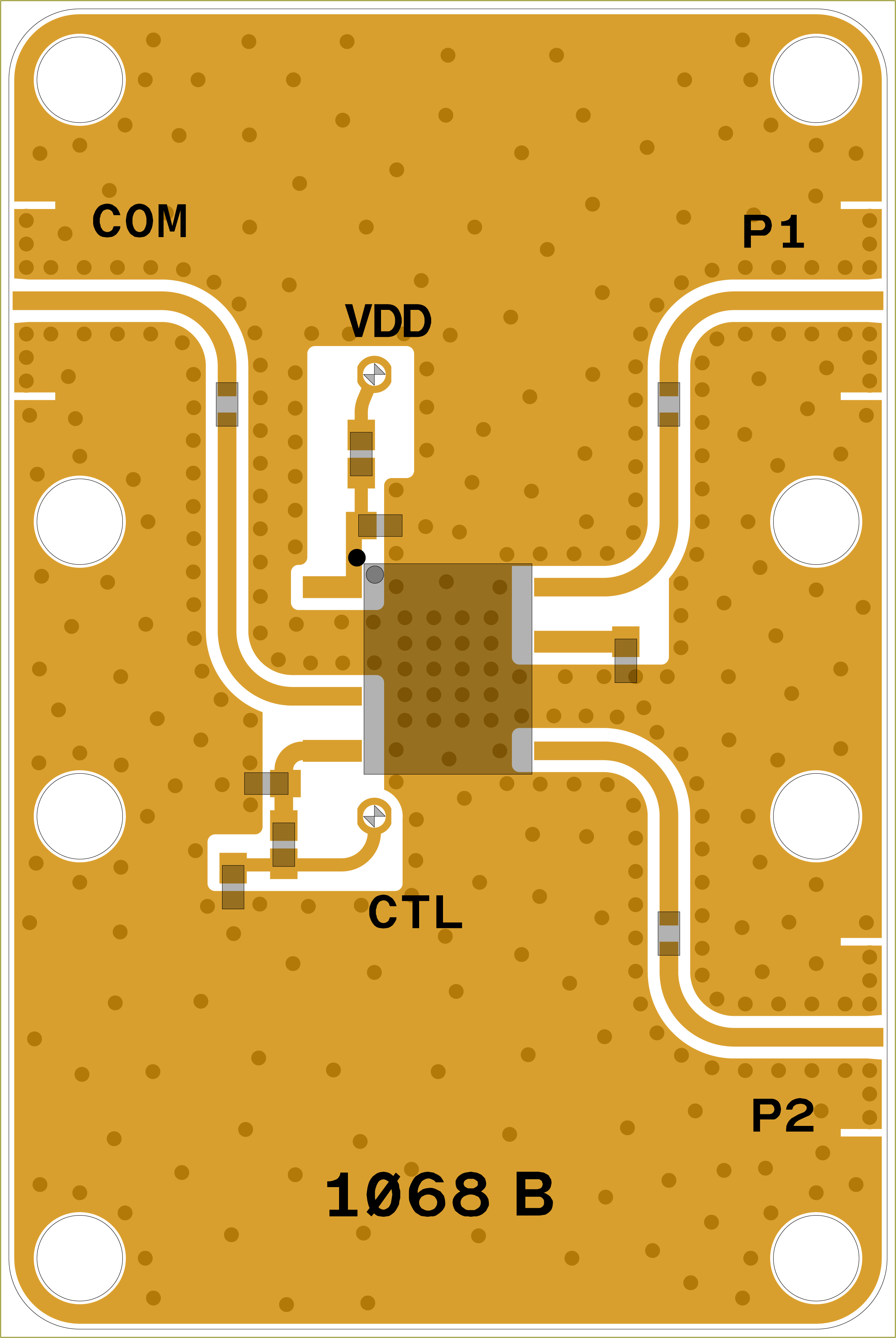

Switch, SA630D [PCB: 1068]
Recommended Bias Controller: XM-A768-0409D-SP

Configurations

Product Page

 N/A NXP

Spec Sheet

 N/A SA630D

Low Freq

 N/A 0 MHz

High Freq

 N/A 1000 MHz

IL

 N/A 1 dB

P1dB

 N/A 18 dBm

IP3

 N/A 33 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3V to +5.5V
CTL HIGH = +2V to VDD
CTL LOW = -0.3V to +0.8V

State 1: [CTL = HIGH] [P1 = ON] [P2 = OFF]
State 2: [CTL = LOW] [P1 = OFF] [P2 = ON]

Part Number

 N/A XR-B2M8-0609D
