XM-A829-0409D
XR-A829-0409D ROHS

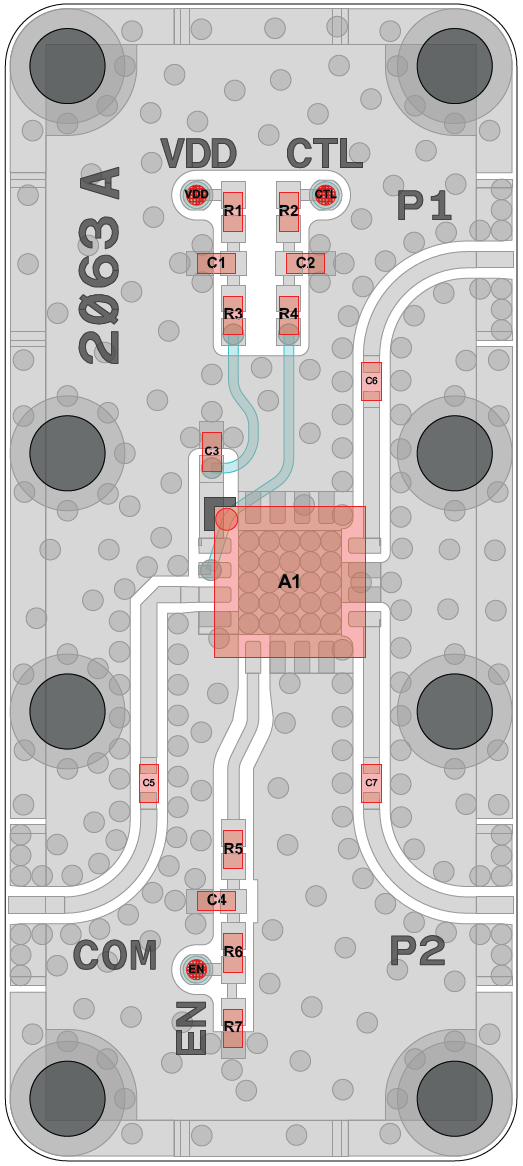

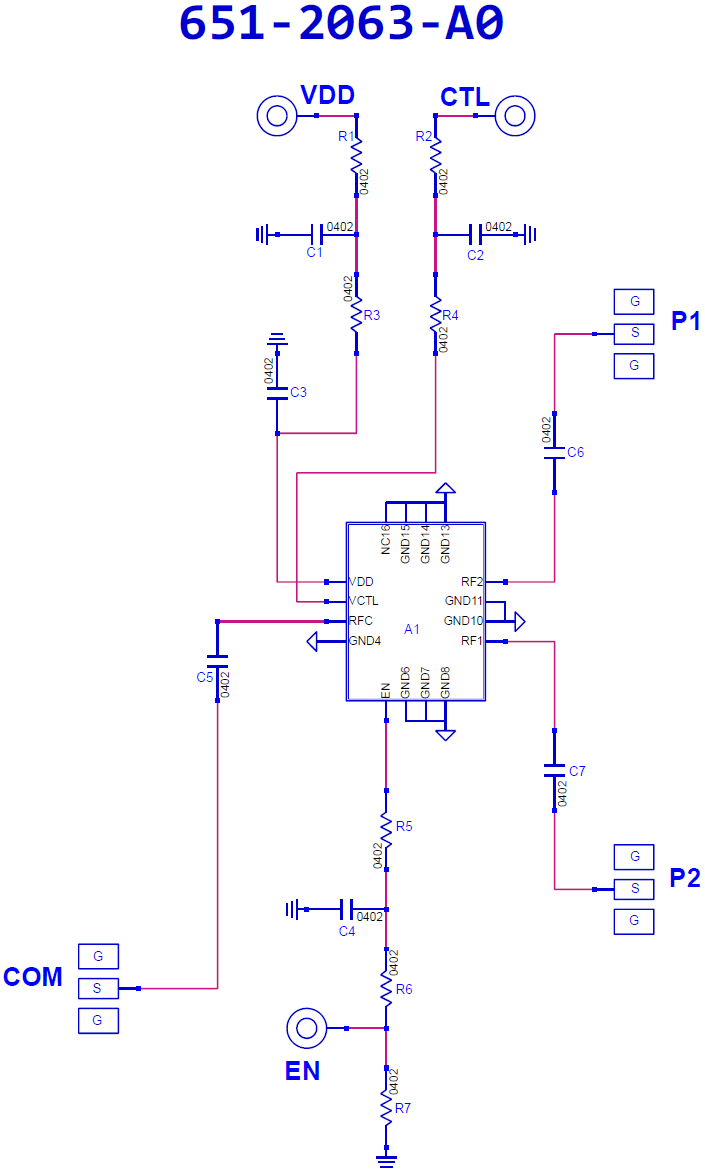

Switch, HMC349ALP4CE [PCB: 2063]
Recommended Bias Controller: XM-A8E2-0409D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC349ALP4CE

Low Freq

 N/A 100 MHz

High Freq

 N/A 4000 MHz

IL

 N/A 1 dB

P1dB

 N/A 34 dBm

IP3

 N/A 53 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +5V @ 1mA typ.
EN = 0V (Insertion loss) or VDD (Isolation state) (TTL logic) @ 35µA max
CTL = 0V or VDD (TTL logic) @ 35µA max

State 1: [EN = LOW] [CTL = LOW] [P1 = ON] [P2 = OFF]
State 2: [EN = LOW] [CTL = HIGH] [P1 = OFF] [P2 = ON]
State 3: [EN = HIGH] [CTL = LOW] [P1 = OFF] [P2 = OFF]
State 4: [EN = HIGH] [CTL = HIGH] [P1 = OFF] [P2 = OFF]

Part Number

 N/A XR-A829-0409D
