XM-A7V8-0804D
XR-A7V8-0804D ROHS

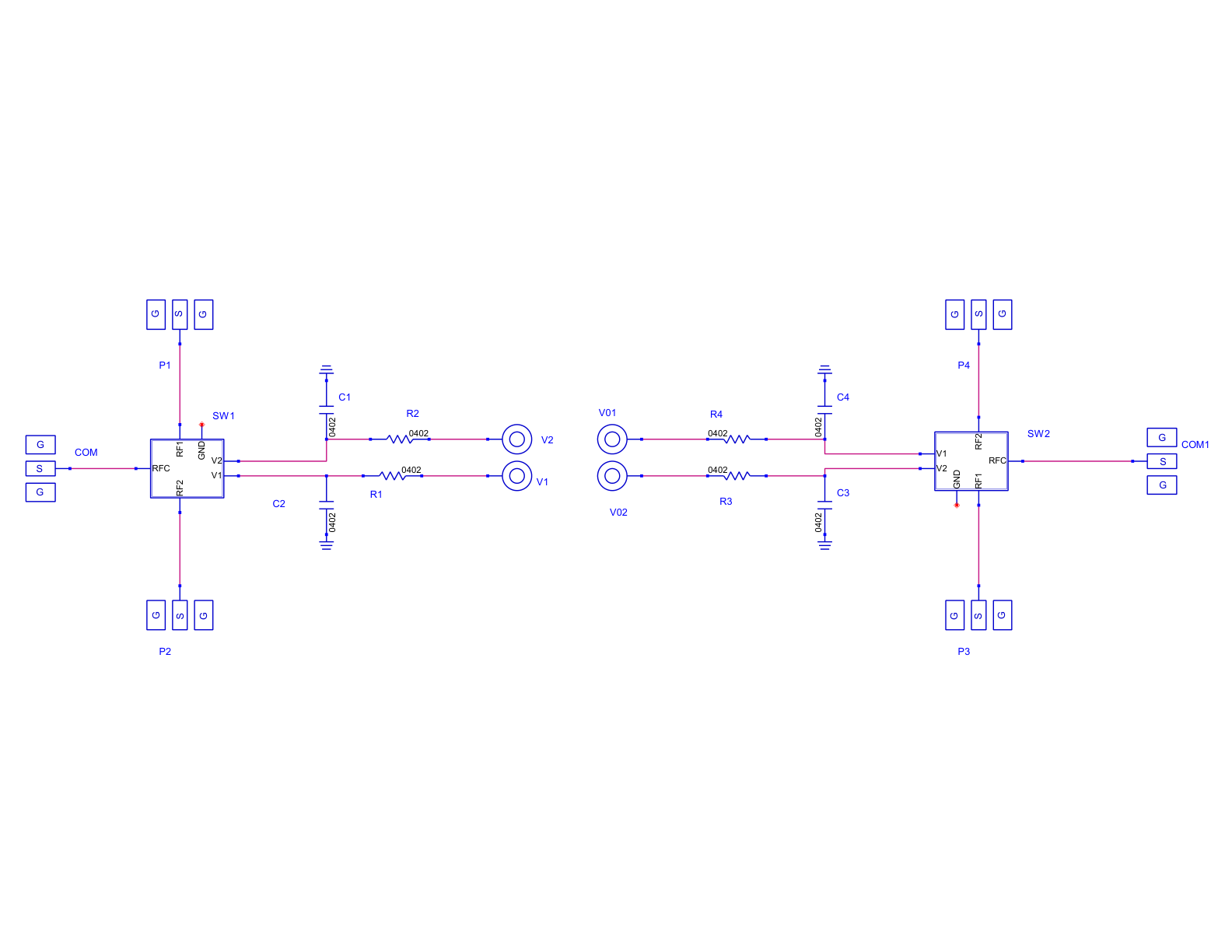

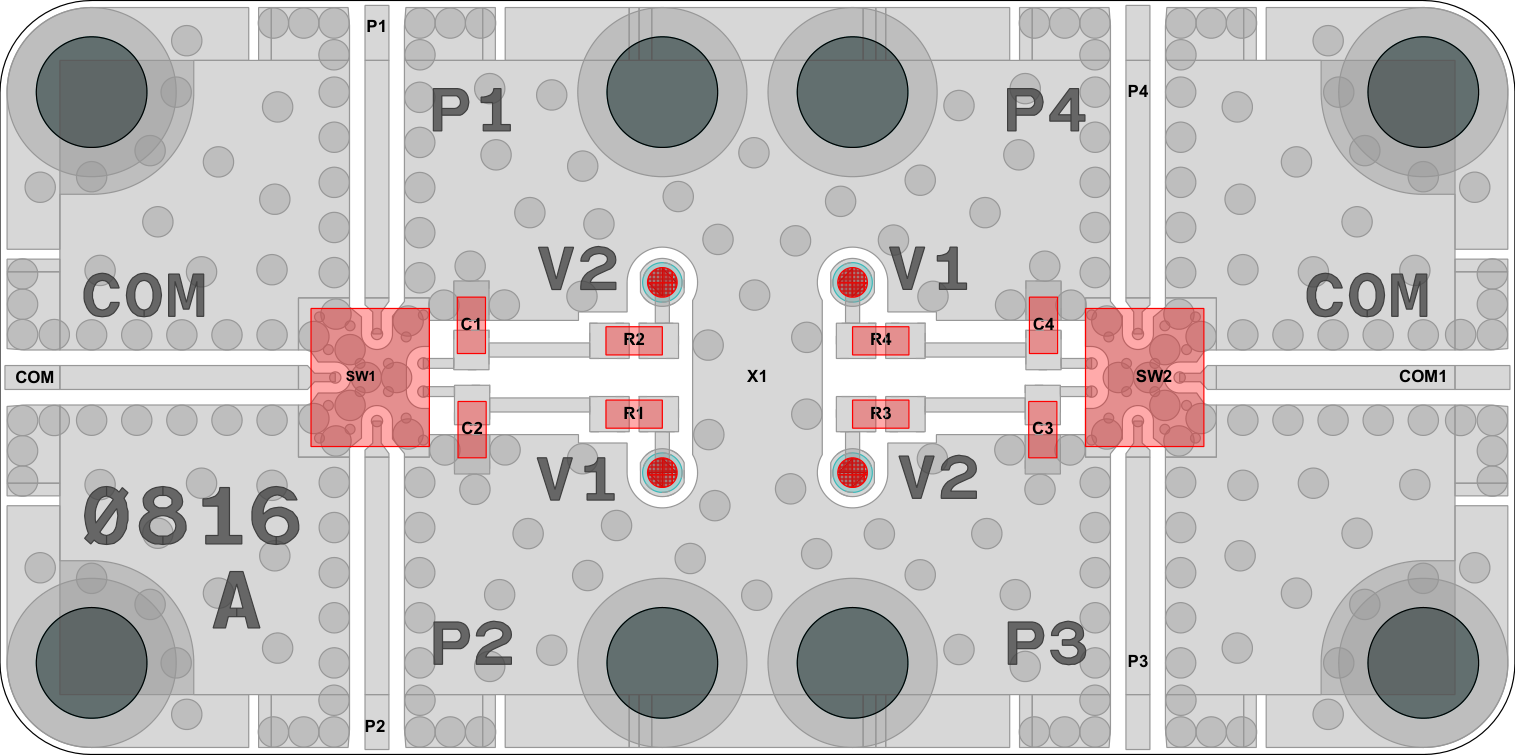

Switch, PE42524B-X [PCB: 0816]

Product Page

 N/A pSemi

Spec Sheet

 N/A PE42524B-X

Low Freq

 N/A 10 MHz

High Freq

 N/A 40000 MHz

IL

 N/A 1.8 dB

P1dB

 N/A 31.5 dBm

IP3

 N/A 50 dBm

Bias Instruction

 N/A

Notes: V1,2 HIGH = +3.1V to +3.5V (+3.3V @ 2nA typ.)
V1,2 LOW = -3.1V to -3.5V (-3.3V @ 2nA typ.)

State 1: [V1 = LOW] [V2 = LOW] [All OFF]
State 2: [V1 = LOW] [V2 = HIGH] [RF1 OFF] [RF2 ON]
State 3: [V1 = HIGH] [V2 = LOW] [RF1 ON] [RF2 OFF]
State 4: [V1 = HIGH] [V2 = HIGH] [All ON]

Part Number

 N/A XR-A7V8-0804D
