XM-A7T5-0809D
XR-A7T5-0809D ROHS

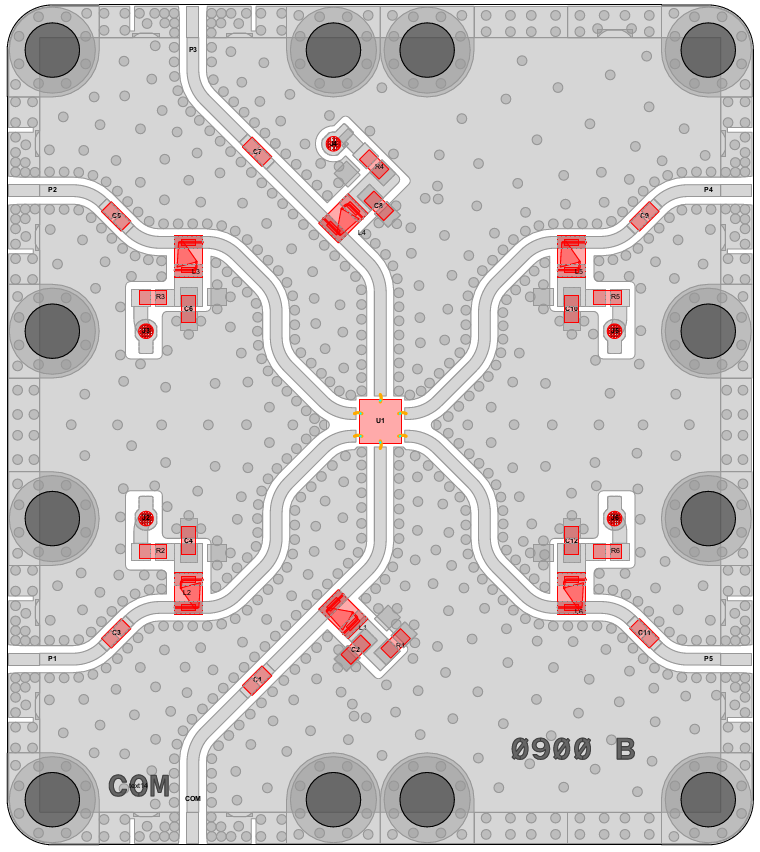

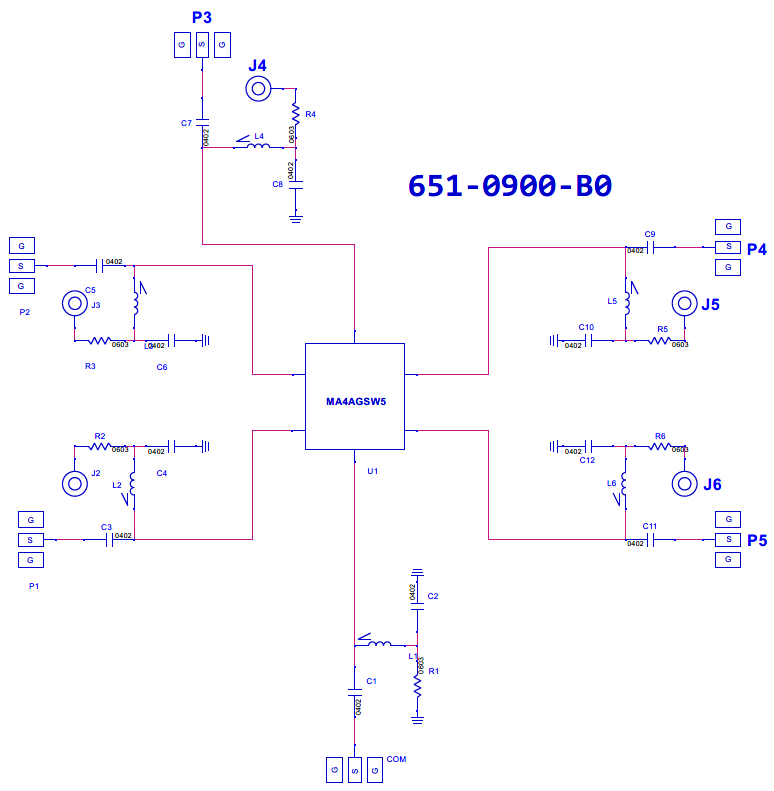

Switch, MA4AGSW5 [PCB: 0900]
Recommended Bias Controller: XM-A7T6-0809D-SP

Configurations

Product Page

 N/A Macom

Spec Sheet

 N/A MA4AGSW5

Low Freq

 N/A 50 MHz

High Freq

 N/A 70000 MHz

IL

 N/A 1.7 dB

N/A

Bias Instruction

 N/A

State 1: COM to P1 [P1 = -10mA] [P2 = +10mA] [P3 = +10mA] [P4 = +10mA] [P5 = +10mA]
State 2: COM to P2 [P1 = +10mA] [P2 = -10mA] [P3 = +10mA] [P4 = +10mA] [P5 = +10mA]
State 3: COM to P3 [P1 = +10mA] [P2 = +10mA] [P3 = -10mA] [P4 = +10mA] [P5 = +10mA]
State 4: COM to P4 [P1 = +10mA] [P2 = +10mA] [P3 = +10mA] [P4 = -10mA] [P5 = +10mA]
State 5: COM to P5 [P1 = +10mA] [P2 = +10mA] [P3 = +10mA] [P4 = +10mA] [P5 = -10mA]

Part Number

 N/A XR-A7T5-0809D
