XM-A7D8-0409C-01
XR-A7D8-0409C-01 ROHS

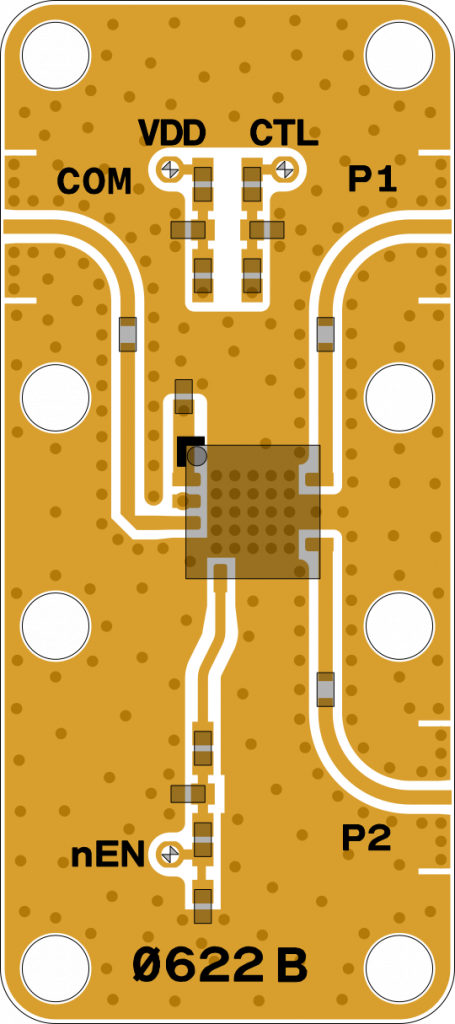

Switch, F2933NBGP [PCB: 0622]
Connectorized Housing
Included Bias Controller: XM-A8E2-0409D

Configurations

Product Page

 N/A IDT

Spec Sheet

 N/A F2933NBGP

Low Freq

 N/A 50 MHz

High Freq

 N/A 8000 MHz

IL

 N/A 0.79 dB

P1dB

 N/A 36.5 dBm

IP3

 N/A 64 dBm

Connector Series

 N/A SuperSMA

Bias Instruction

 N/A

Notes: +VIN = +6V to +10V
VDD=+5V@260µA

State 1: [CTL = 0V] [P1 = ON] [P2 = OFF]
State 2: [CTL = VDD (@ 1µA max)] [P1 = OFF] [P2 = ON]

Part Number

 N/A XR-A7D8-0409C-01
