XM-A6D5-0409D
XR-A6D5-0409D ROHS

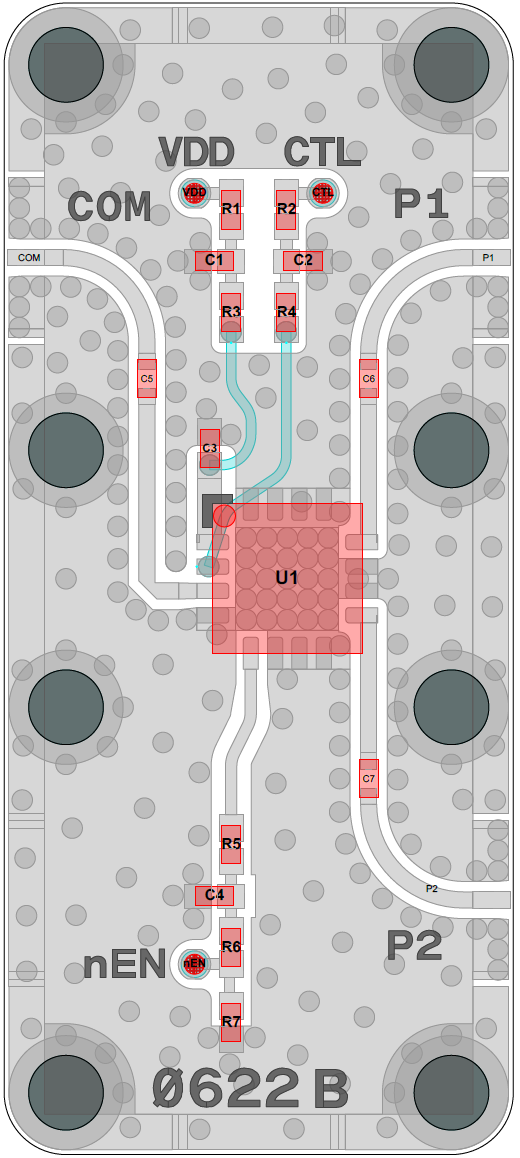

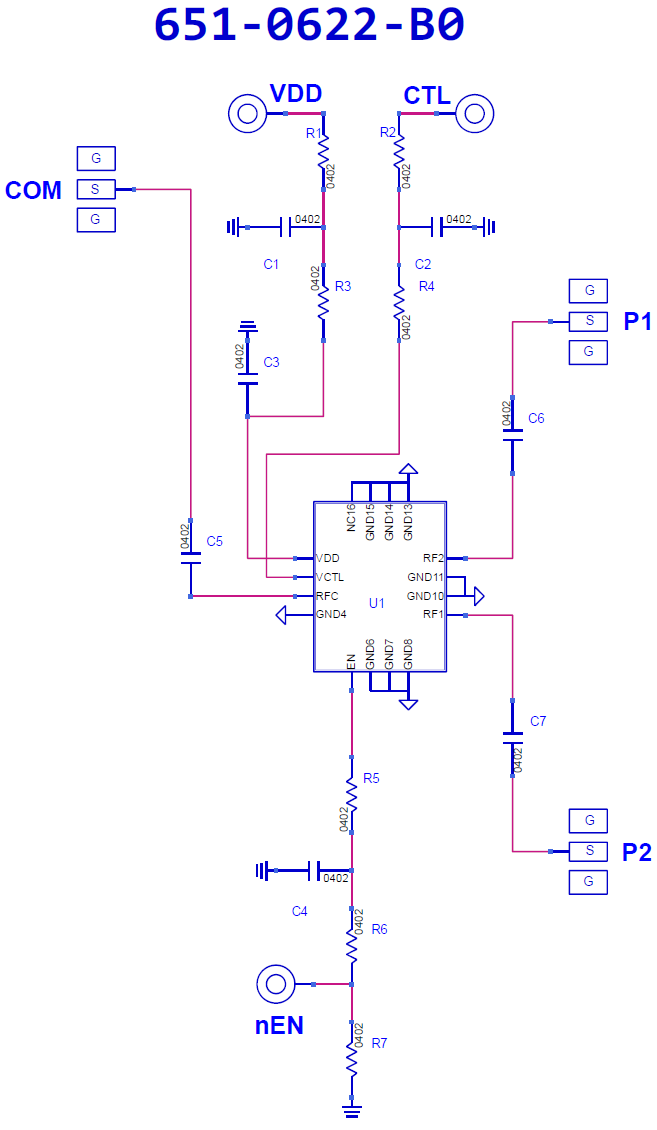

Switch, HMC8038LP4CE [PCB: 0622]
Recommended Bias Controller: XM-E2M2-0409D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC8038LP4CE

Low Freq

 N/A 100 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.8 dB

P1dB

 N/A 36 dBm

IP3

 N/A 60 dBm

Bias Instruction

 N/A

Notes: VDD = +3.3V@0.14mA to +5V@0.16mA
VCTL,EN = 0V(LOW) or VDD (HIGH)

State 1: [EN = LOW] [CTL = LOW] [P1 = ON] [P2 = OFF]
State 2: [EN = LOW] [CTL = HIGH] [P1 = OFF] [P2 = ON]
State 3: [EN = HIGH] [CTL = X] [P1 = OFF] [P2 = OFF]

Part Number

 N/A XR-A6D5-0409D
