XM-A5A6-0409D
XR-A5A6-0409D ROHS

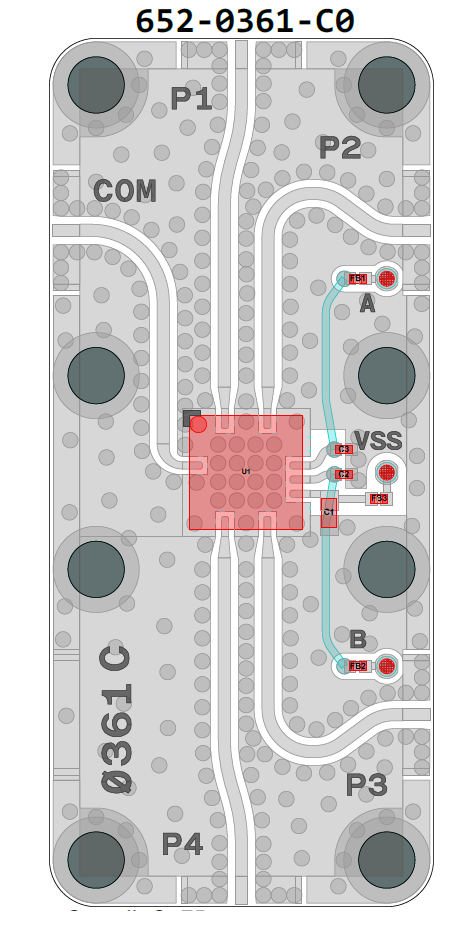

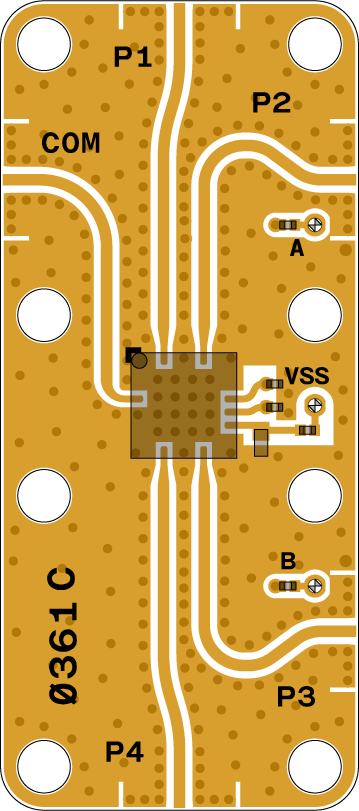

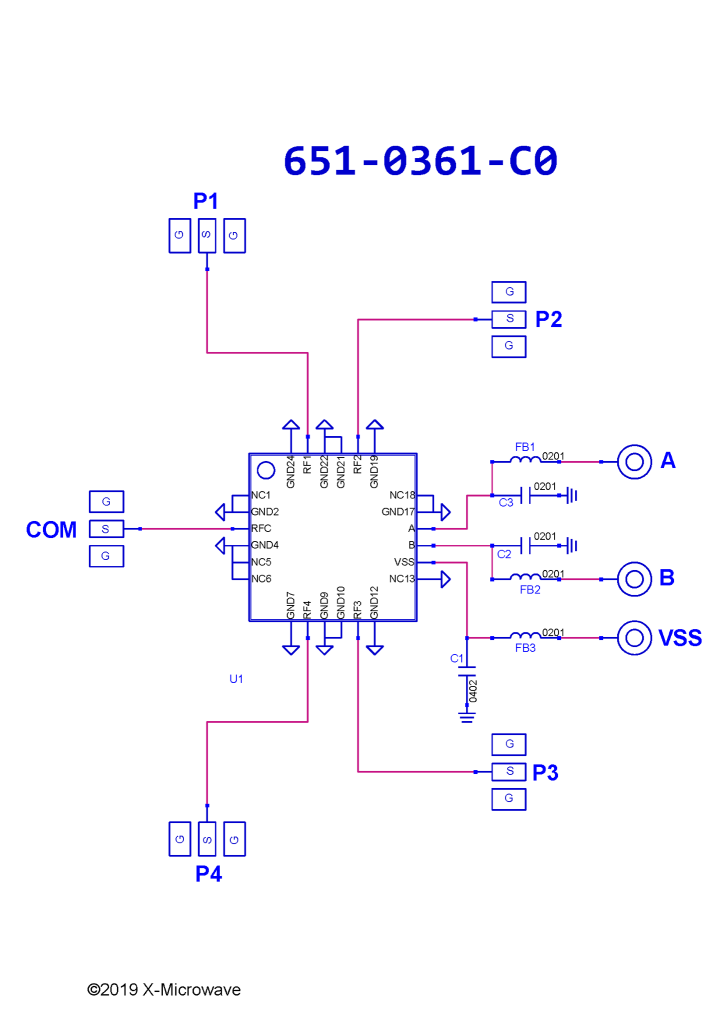

Switch, CMD203C4 [PCB: 0361]
Recommended Bias Controller: XM-A7A6-0409D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD203C4

Low Freq

 N/A 0 MHz

High Freq

 N/A 20000 MHz

IL

 N/A 2.40 dB

P1dB

 N/A 21 dBm

IP3

 N/A 30 dBm

N/A

Bias Instruction

 N/A

Notes: LOW = -1V to 0V @ 0.5 mA typ
HIGH = -7V to -3V @ 1 uA typ
Vss = -7V
Iss = 4.5mA typ (8mA max)

State 1: [A = HIGH] [B = HIGH] [RF1 = ON] [RF2-4 = OFF]
State 1: [A = LOW] [B = HIGH] [RF2 = ON] [RF1,3,4 = OFF]
State 1: [A = HIGH] [B = LOW] [RF3 = ON] [RF1,2,4 = OFF]
State 1: [A = LOW] [B = LOW] [RF4 = ON] [RF1-3 = OFF]

Part Number

 N/A XR-A5A6-0409D
