XM-A5A4-0419C-01
XR-A5A4-0419C-01 ROHS

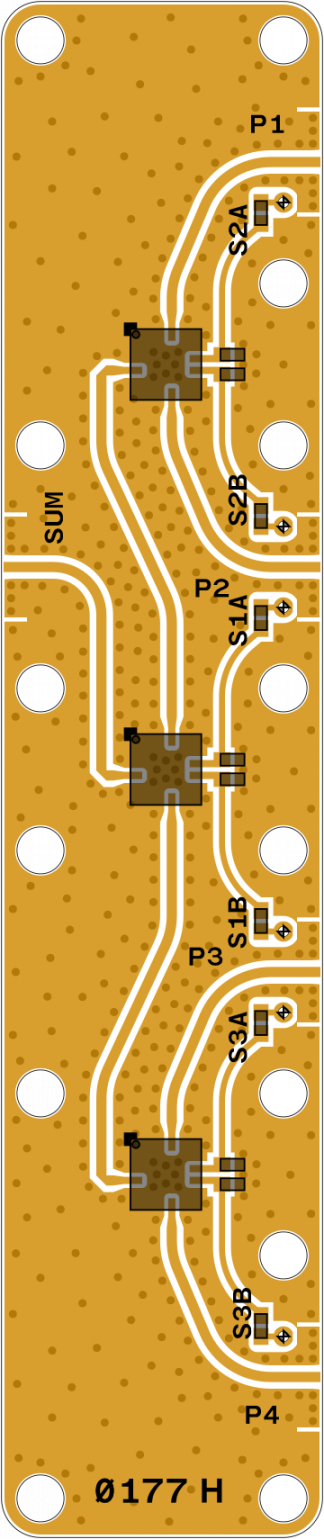

Switch, CMD196C3 [PCB: 0177]
Connectorized Housing
Included Bias Controller: XM-A5A5-0419D

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD196C3

Low Freq

 N/A 0 MHz

High Freq

 N/A 18000 MHz

IL

 N/A 1.5 dB

P1dB

 N/A 23 dBm

IP3

 N/A 38 dBm

Connector Series

 N/A SuperSMA

Bias Instruction

 N/A

Notes: -VIN = -6V to -10V

State 1: [E0 = 0V] [E1 = 0V] [P1 OFF] [P2 OFF] [P3 OFF] [P4 ON]
State 2: [E0 = 0V] [E1 = +5V] [P1 OFF] [P2 OFF] [P3 ON] [P4 OFF]
State 3: [E0 = +5V] [E1 = 0V] [P1 OFF] [P2 ON] [P3 OFF] [P4 OFF]
State 4: [E0 = +5V] [E1 = +5V] [P1 ON] [P2 OFF] [P3 OFF] [P4 OFF]

Part Number

 N/A XR-A5A4-0419C-01
