XM-A5A2-0419D
XR-A5A2-0419D ROHS

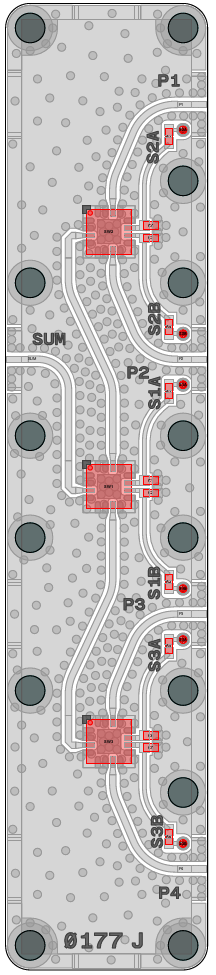

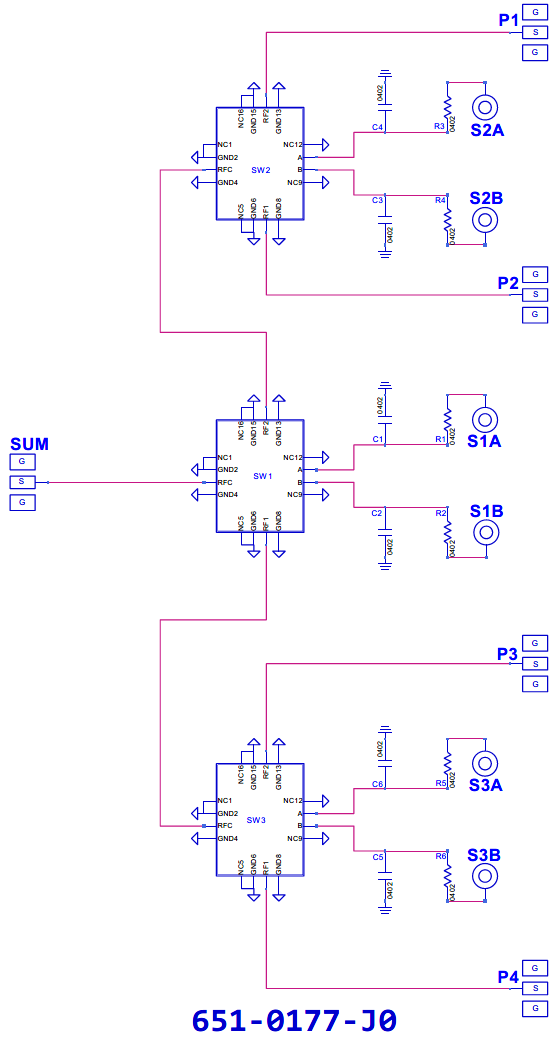

Switch, CMD195C3 [PCB: 0177]
Recommended Bias Controller: XM-A5A3-0419D-SP

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD195C3

Low Freq

 N/A 0 MHz

High Freq

 N/A 18000 MHz

IL

 N/A 2 dB

P1dB

 N/A 25 dBm

IP3

 N/A 40 dBm

Bias Instruction

 N/A

Notes: VCTL@1uA typ (6uA max)

SUM to P1: [S1A = 0V] [S1B = -5V] [S2A = 0V] [S2B = -5V] [S3A = X] [S3B = X]
SUM to P2: [S1A = 0V] [S1B = -5V] [S2A = 0V] [S2B = -5V] [S3A = X] [S3B = X]
SUM to P3: [S1A = -5V] [S1B = 0V] [S2A = X] [S2B = X] [S3A = 0V] [S3B = -5V]
SUM to P4: [S1A = -5V] [S1B = 0V] [S2A = X] [S2B = X] [S3A = -5V] [S3B = 0V]

Part Number

 N/A XR-A5A2-0419D
