XM-A599-0409D
XR-A599-0409D ROHS

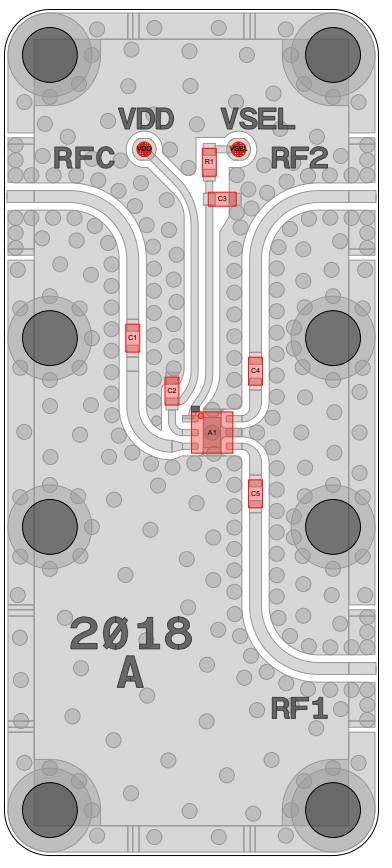

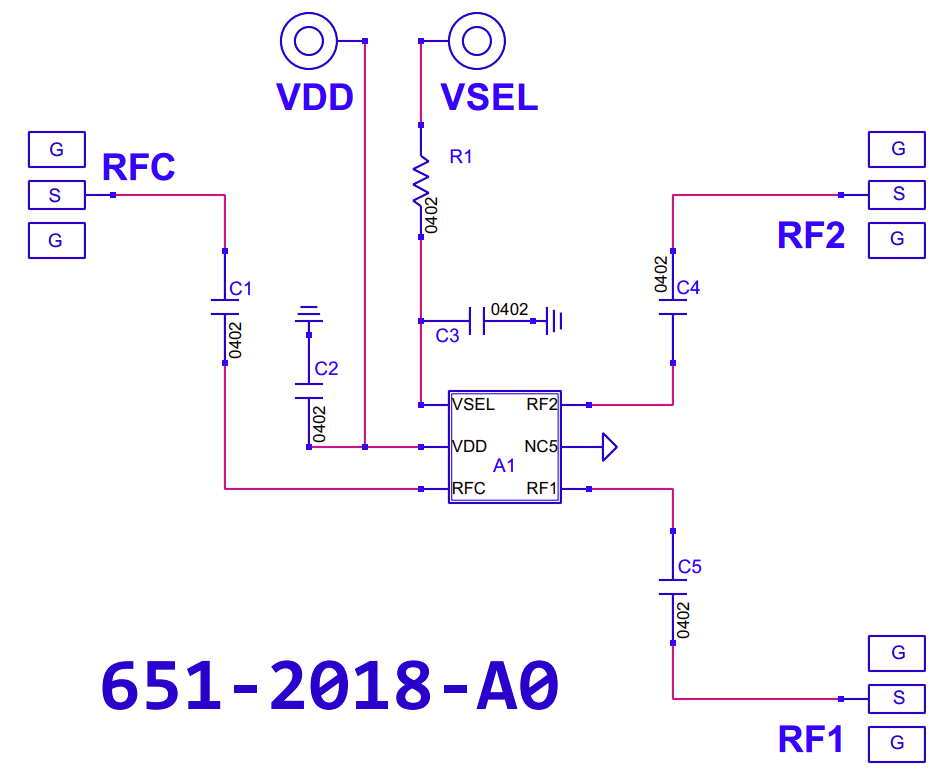

Switch, GRF6011 [PCB: 2018]
Recommended Bias Controller: XM-B1B3-0409D-SP

Product Page

 N/A Guerrilla RF

Spec Sheet

 N/A GRF6011

Low Freq

 N/A 10 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.64 dB

P1dB

 N/A 32 dBm

IP3

 N/A 55 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V typ. (up to +5V)
Vsel HIGH = 3V to VDD
Vsel LOW = <0.1V
Failsafe when Vdd=Vsel=0V or float

State 1: [Vsel = H] [RF1 = ON] [RF2 = OFF] [Idd = 1mA] [Isel = 0.8mA]
State 2: [Vsel = L] [RF1 = OFF] [RF2 = ON] [Idd = 0.3 mA] [Isel = 0mA]

Part Number

 N/A XR-A599-0409D
