XM-A3M8-0404D
XR-A3M8-0404D ROHS

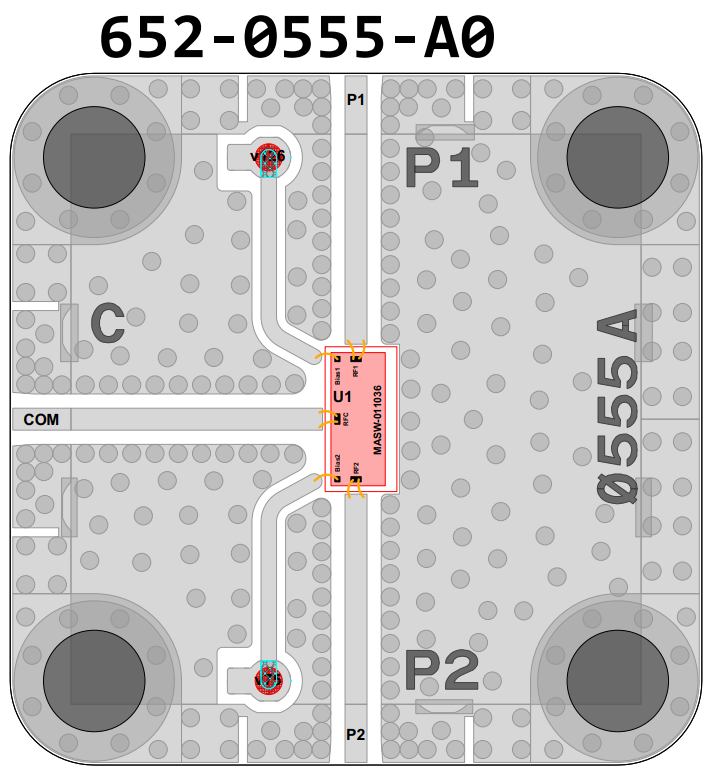

Switch, MASW-011036 [PCB: 0555]
Recommended Bias Controller: XM-A3M9-0404D-SP

Configurations

Product Page

 N/A Macom

Spec Sheet

 N/A MASW-011036

Low Freq

 N/A 26000 MHz

High Freq

 N/A 40000 MHz

IL

 N/A 1 dB

IP3

 N/A 23 dBm

N/A

Bias Instruction

 N/A

Notes: Work w/ bias A3M9

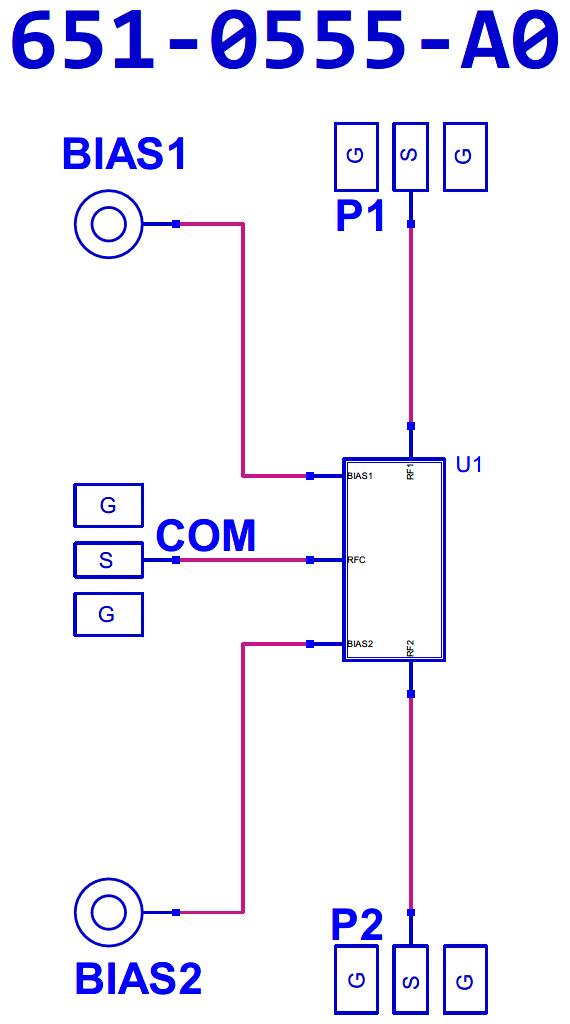

State 1: [BIAS1 = -7V min @25nA] [BIAS2 = +4V @25mA] [P1 = ON] [P2 = OFF]
State 2: [BIAS1 = +4V @25mA] [BIAS2 = -7V min @25nA] [P1 = OFF] [P2 = ON]

Part Number

 N/A XR-A3M8-0404D
