XM-A2L7-0409D
XR-A2L7-0409D ROHS

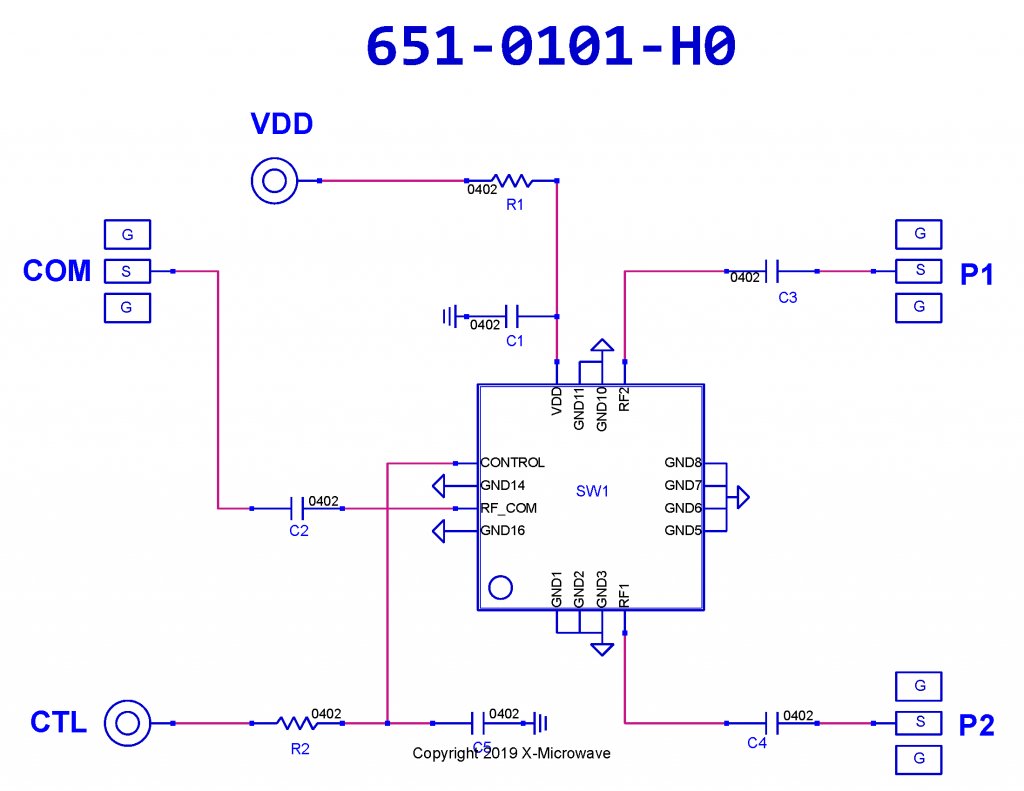

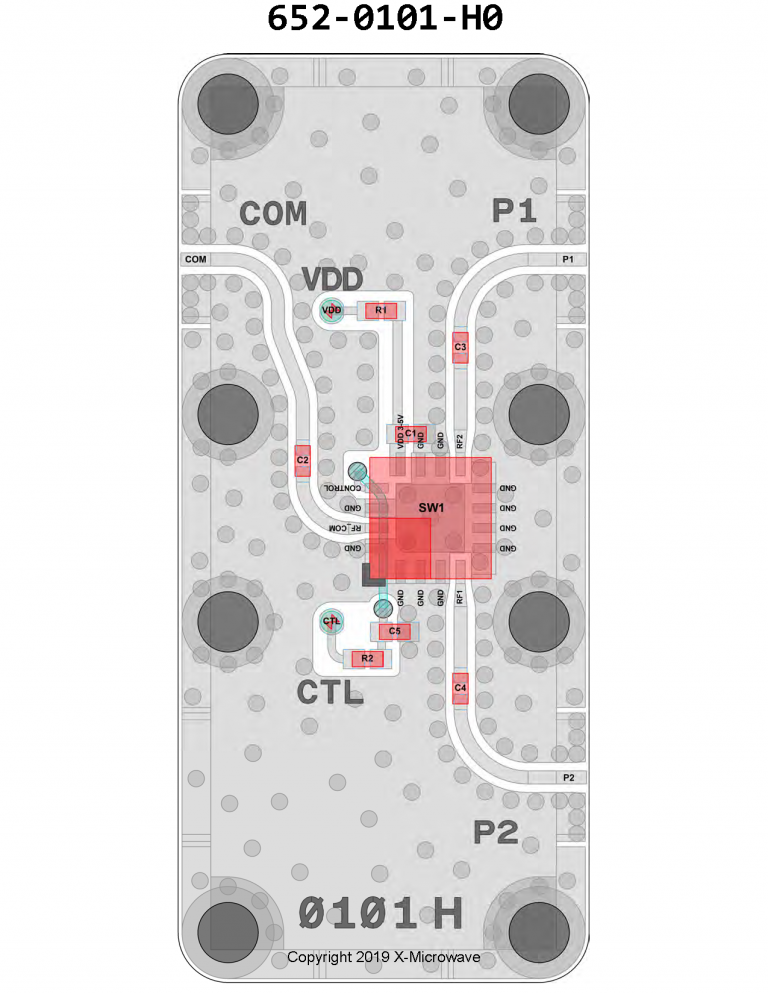

Switch, CSWA2-63DR+ [PCB: 0101]
Recommended Bias Controller: XM-A768-0409D-SP

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A CSWA2-63DR+

Low Freq

 N/A 500 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 1 dB

P1dB

 N/A 30 dBm

IP3

 N/A 50 dBm

Bias Instruction

 N/A

Notes: VDD = +3V to +5V (@ 50uA typ)
CTL LOW = 0 to +0.5V (@ 5uA typ)
CTL HIGH = +2.7V to VDD (@ 5uA typ); *+3.5V for VDD=+4 to 5V


State 1: [CTL = LOW] [P1 = OFF] [P2 = ON]
State 2: [CTL = HIGH] [P1 = ON] [P2 = OFF]

Part Number

 N/A XR-A2L7-0409D
