XM-A3R8-0409D
XR-A3R8-0409D ROHS

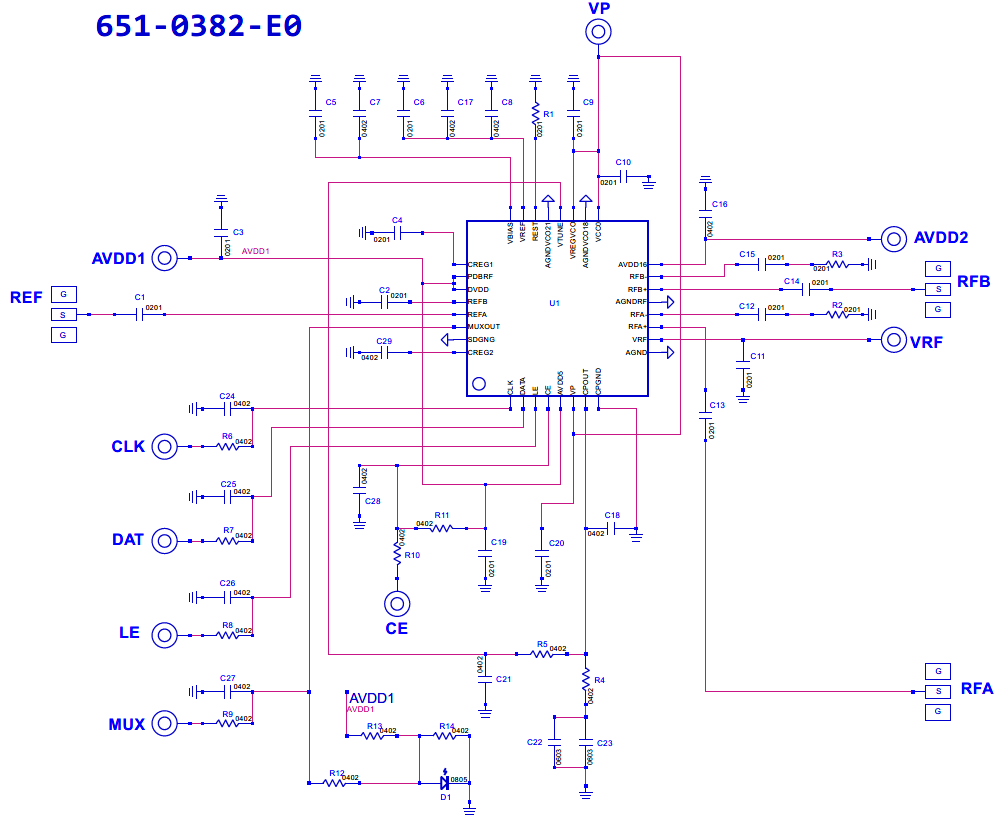

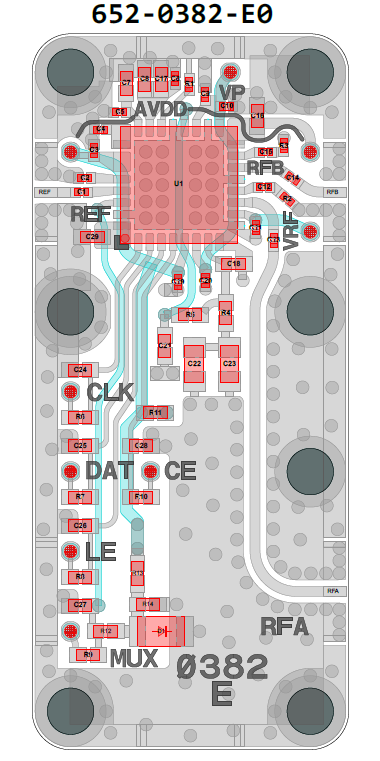

Phase Lock Loop with Int VCO, ADF4355-2BCPZ [PCB: 0382]
Recommended Bias Controller: XM-A3R9-0409D-SP
Product Page |
N/A ADI |
Spec Sheet |
N/A ADF4355-2BCPZ |
Low Freq |
N/A 54 MHz |
High Freq |
N/A 4400 MHz |
Power |
N/A 5 mW |
Part Number |
N/A XR-A3R8-0409D |
