XM-B9L5-0304D
XR-B9L5-0304D ROHS

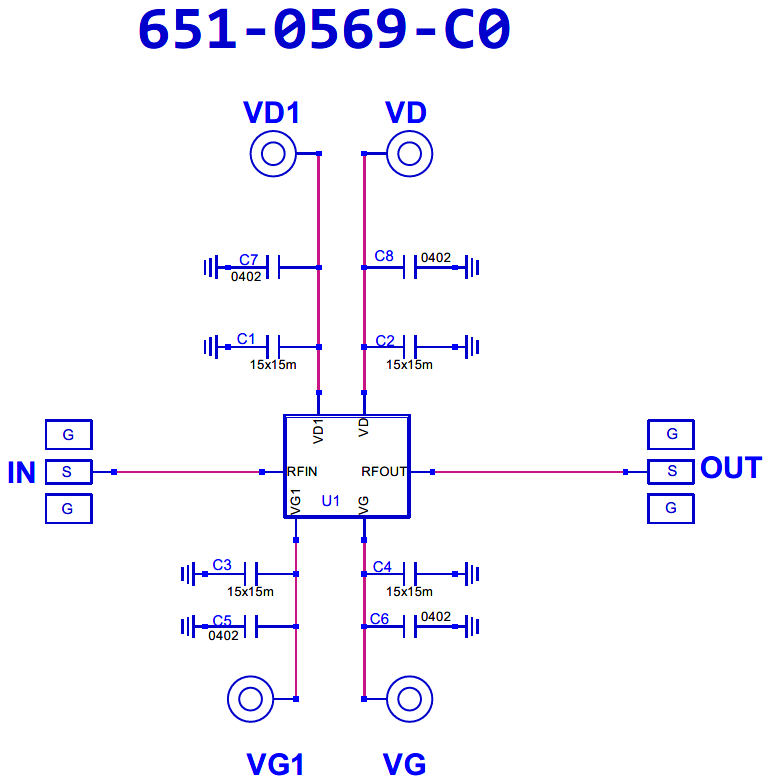

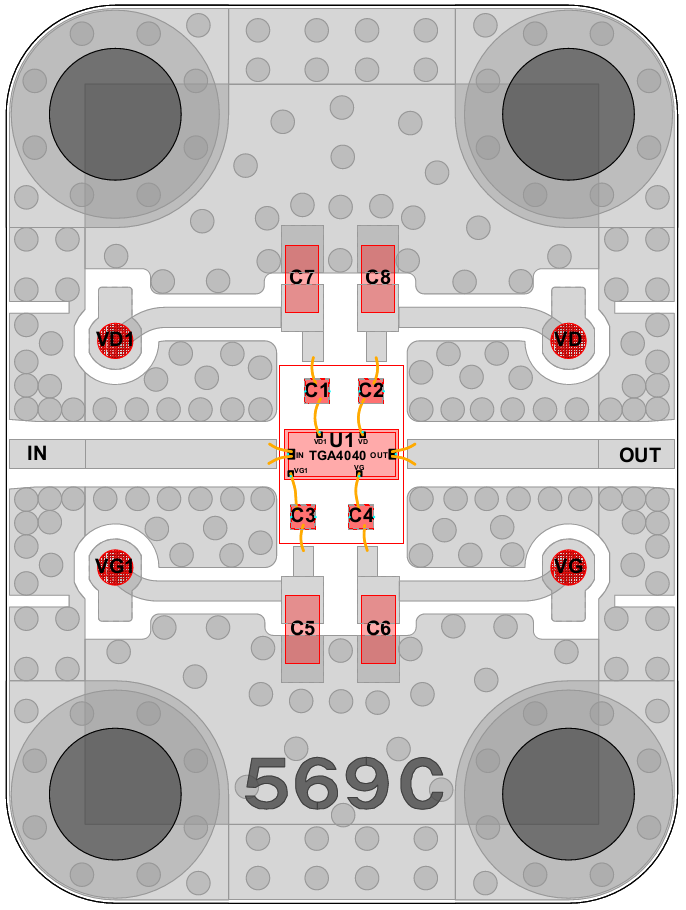

Multiplier, TGA4040 [PCB: 0569]
Recommended Bias Controller: XM-B9L3-0304D
Mult N |
N/A 3 |
Low Freq |
N/A 6000 MHz |
High Freq |
N/A 12000 MHz |
Conv Loss |
N/A -6 dB |
Pin Low |
N/A 9 dBm |
Pin High |
N/A 9 dBm |
Pout |
N/A 15 dBm |
Part Number |
N/A XR-B9L5-0304D |
