XM-B5H5-0404D
XR-B5H5-0404D ROHS

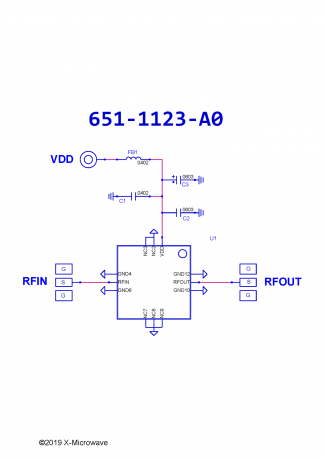

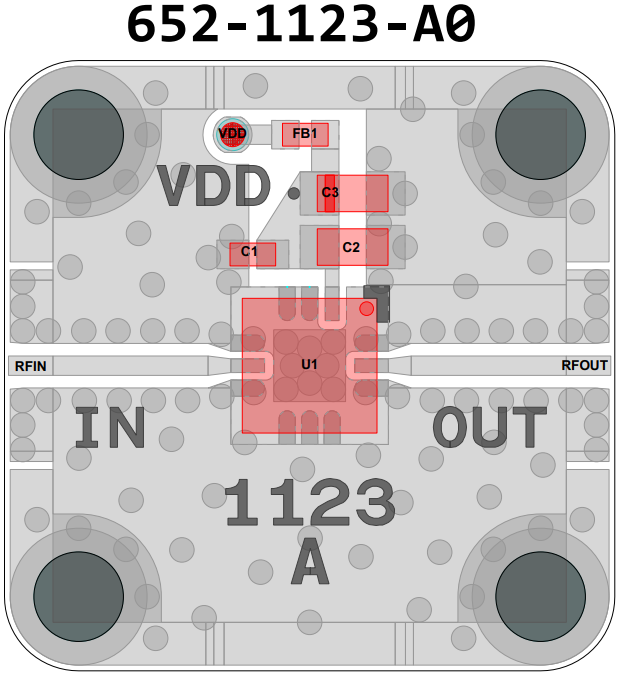

Multiplier, HMC448LC3B [PCB: 1123]
Recommended Bias Controller: XM-A2J9-0404D
Product Page |
N/A ADI |
Spec Sheet |
N/A HMC448LC3B |
Mult N |
N/A 2 |
Low Freq |
N/A 10000 MHz |
High Freq |
N/A 11000 MHz |
Pin Low |
N/A -4 dBm |
Pin High |
N/A 6 dBm |
Pout |
N/A 9 dBm |
Part Number |
N/A XR-B5H5-0404D |
