XM-A4C6-0404D
XR-A4C6-0404D RoHS

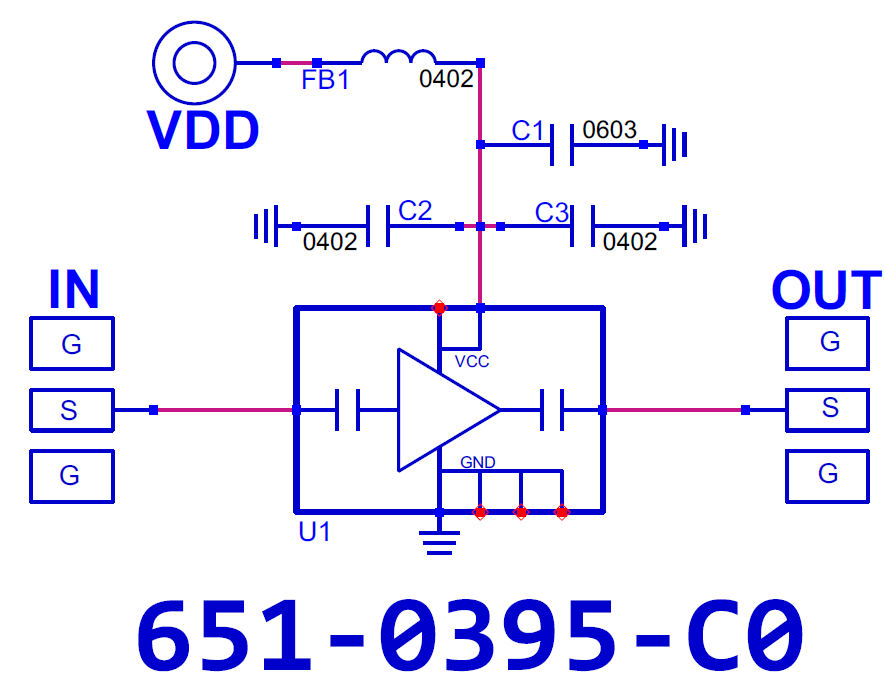

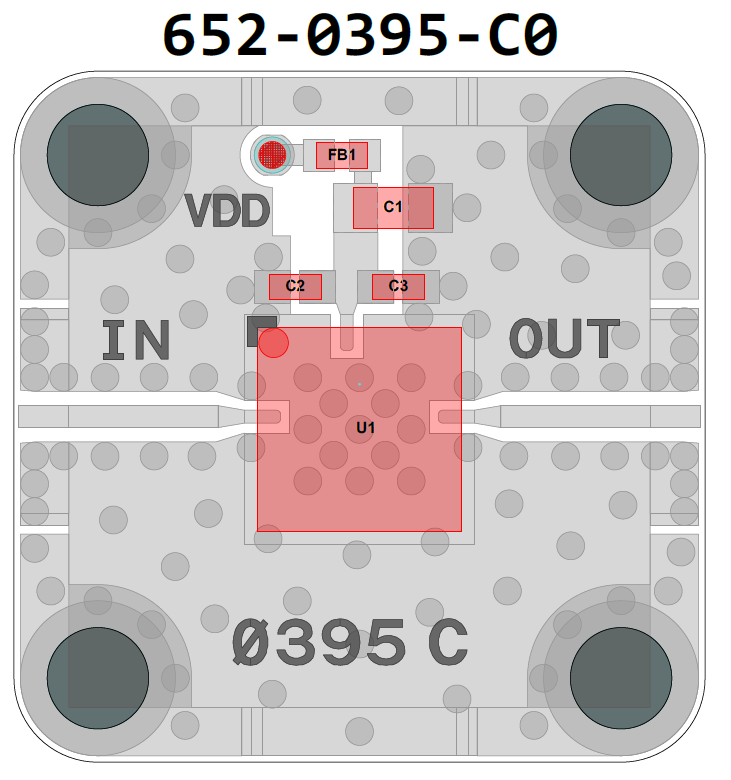

Multiplier, XX1002-QH [PCB: 0395]
x2 Fin=2.5G-6G CL=16
Recommended Bias Controller: XM-A2J9-0404D
Mult N |
N/A 2 |
Low Freq |
N/A 2500 MHz |
High Freq |
N/A 6000 MHz |
Conv Loss |
N/A 16 dB |
Pin Low |
N/A -3 dBm |
Pin High |
N/A 3 dBm |
Pout |
N/A 16 dBm |
RoHS |
N/A XR-A4C6-0404D |
