XM-D4N3-0404D
XR-D4N3-0404D ROHS

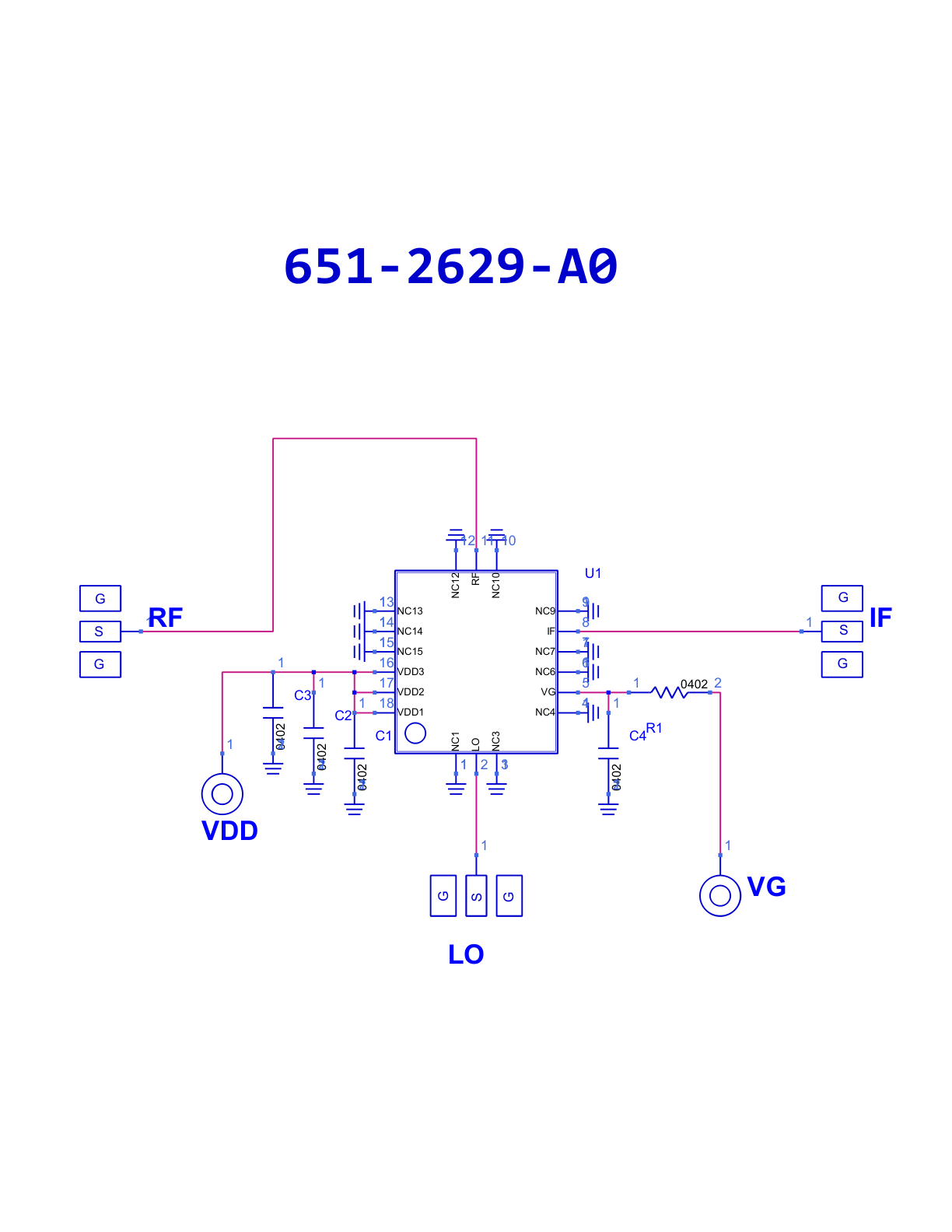

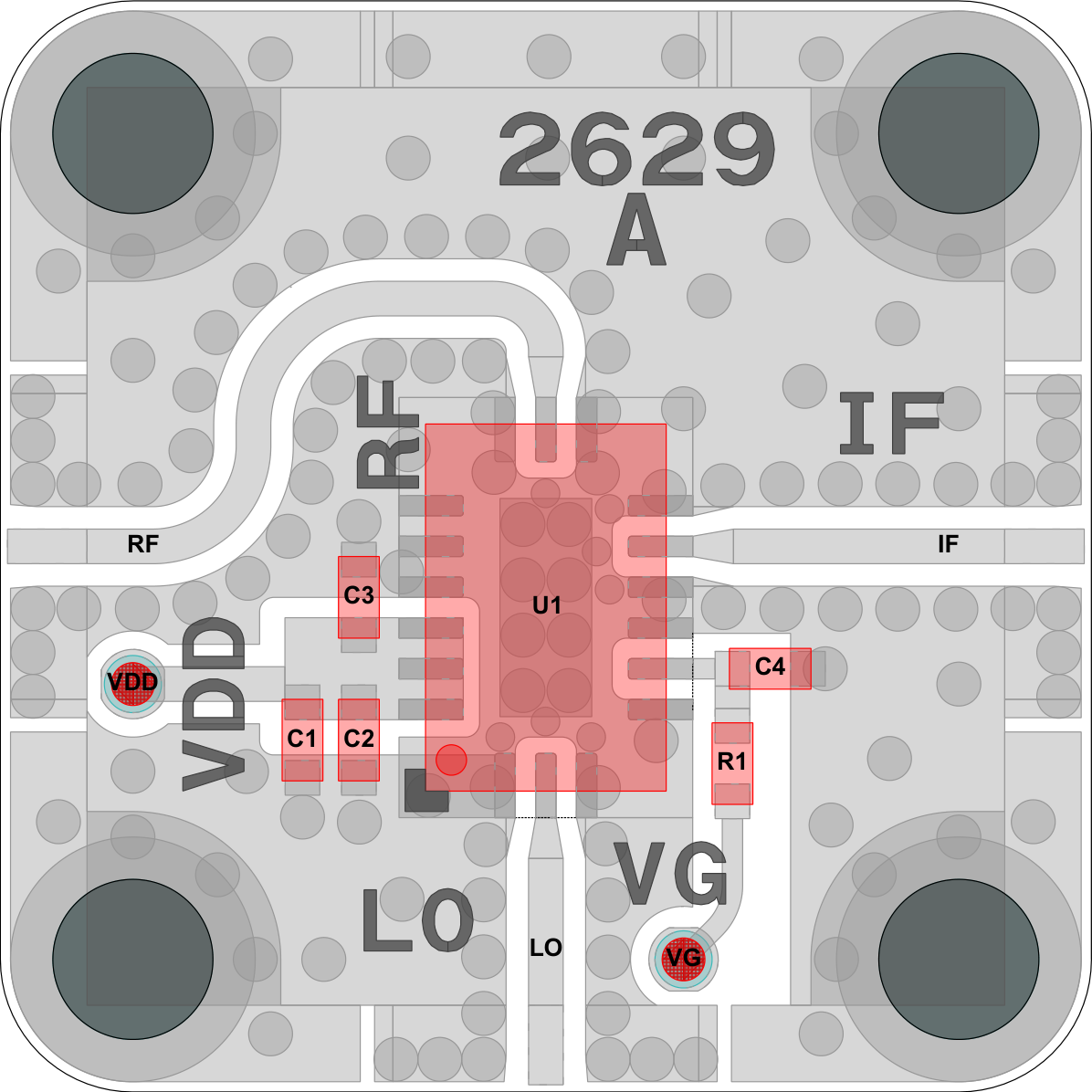

Mixer, MM1A-1855HPSM-2 [PCB: 2629]
Recommended Bias Controller: XM-D4N7-0404D-SP
Product Page |
N/A Marki Microwave |
Spec Sheet |
N/A MM1A-1855HPSM-2 |
LO Level |
N/A 6 dBm |
LO Low Freq |
N/A 18000 MHz |
LO High Freq |
N/A 55000 MHz |
RF Low Freq |
N/A 18000 MHz |
RF High Freq |
N/A 55000 MHz |
IF Low Freq |
N/A 0 MHz |
IF High Freq |
N/A 21000 MHz |
Conv Loss |
N/A 9 dB |
|
N/A |
Part Number |
N/A XR-D4N3-0404D |
