XM-D2L4-0404D
XR-D2L4-0404D ROHS

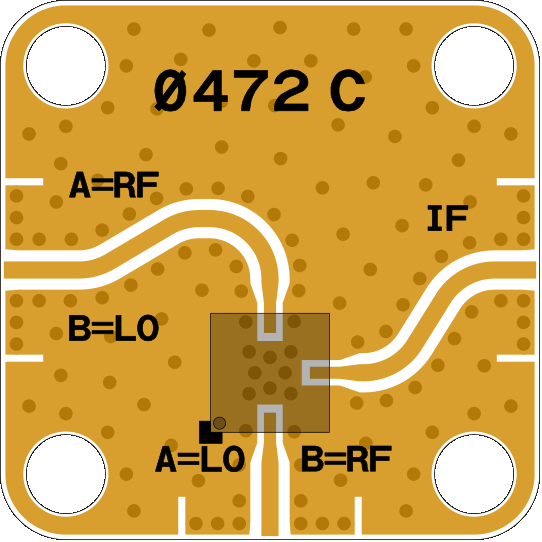

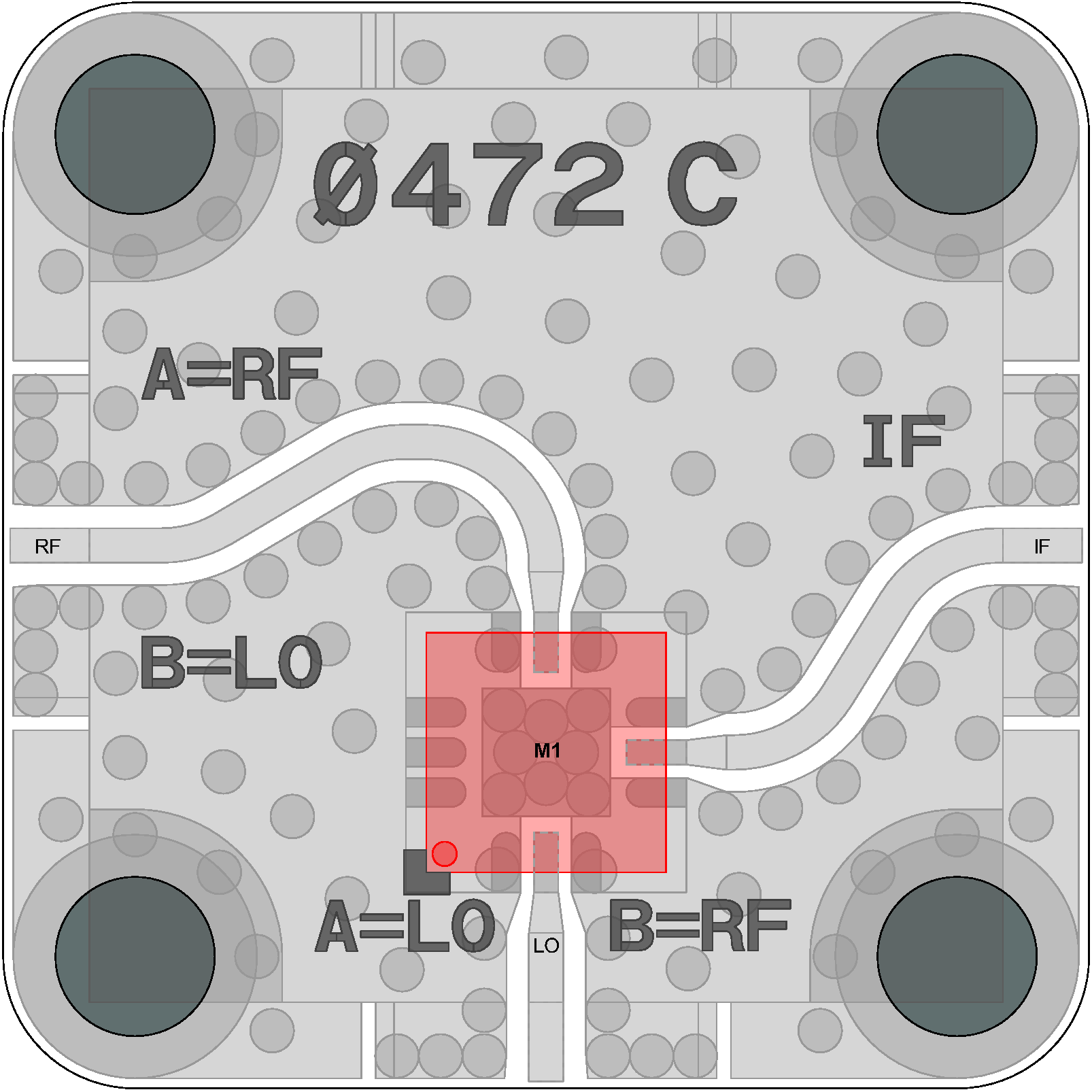

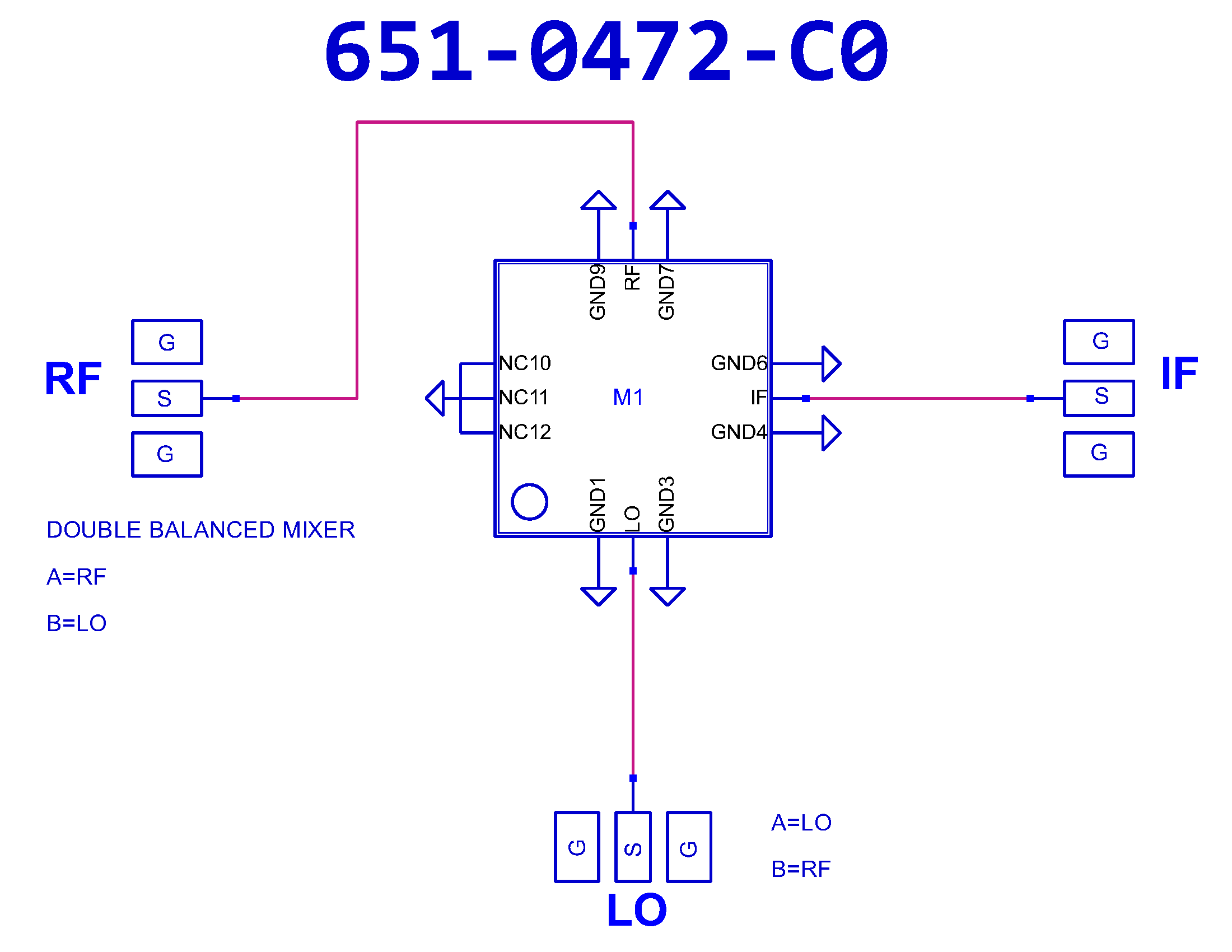

Mixer, MM1-0832HPSM-2 [PCB: 0472]
Product Page |
N/A Marki Microwave |
Spec Sheet |
N/A MM1-0832HPSM-2 |
LO Level |
N/A 18 dBm |
LO Low Freq |
N/A 8000 MHz |
LO High Freq |
N/A 32000 MHz |
RF Low Freq |
N/A 8000 MHz |
RF High Freq |
N/A 32000 MHz |
IF Low Freq |
N/A 0 MHz |
IF High Freq |
N/A 12000 MHz |
Conv Loss |
N/A 8 dB |
Part Number |
N/A XR-D2L4-0404D |
