XM-C7C8-0409D
XR-C7C8-0409D ROHS

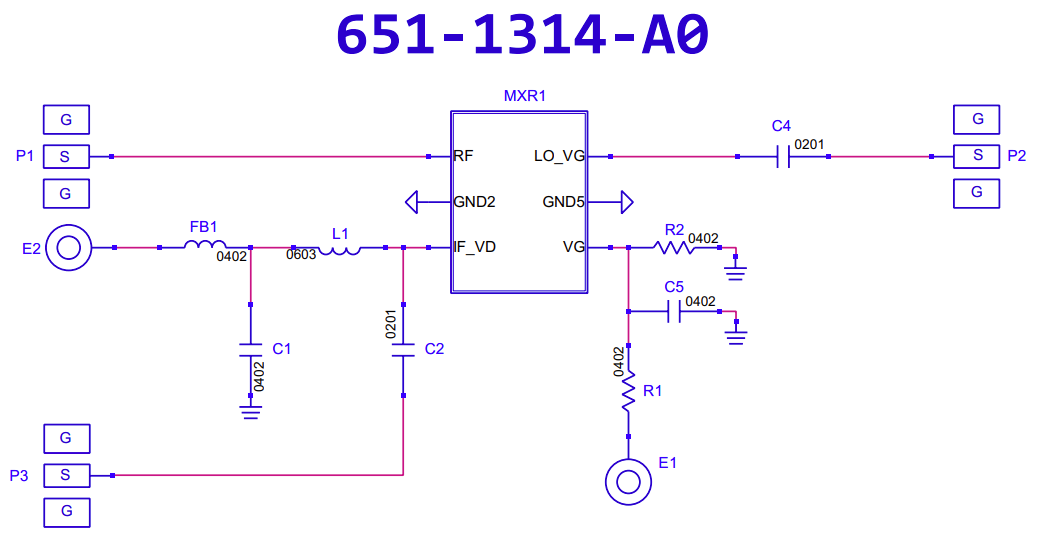

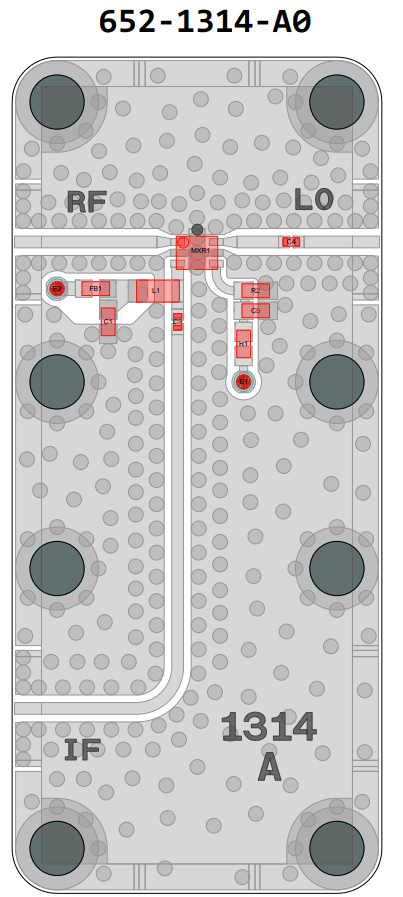

Mixer, MAMX-011009 [PCB: 1314]
Product Page |
N/A Macom |
Spec Sheet |
N/A MAMX-011009 |
LO Level |
N/A 15 dBm |
LO Low Freq |
N/A 14000 MHz |
LO High Freq |
N/A 32000 MHz |
RF Low Freq |
N/A 14000 MHz |
RF High Freq |
N/A 32000 MHz |
IF Low Freq |
N/A 0 MHz |
IF High Freq |
N/A 7000 MHz |
Conv Loss |
N/A 11 dB |
Part Number |
N/A XR-C7C8-0409D |
