XM-B5H2-0409D
XR-B5H2-0409D ROHS

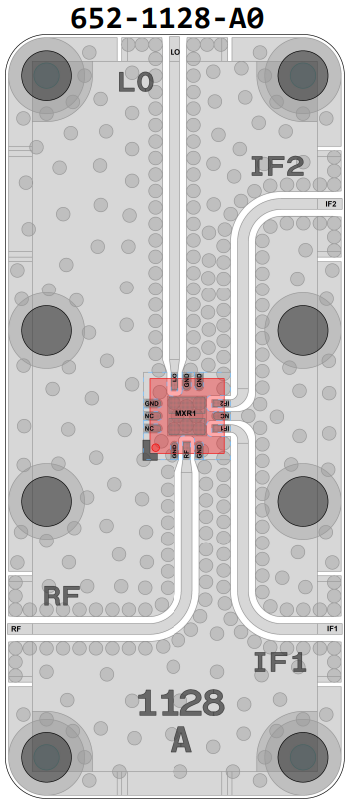

Mixer, HMC524ALC3B [PCB: 1128]
Product Page |
N/A ADI |
Spec Sheet |
N/A HMC524ALC3B |
LO Level |
N/A 17 dBm |
LO Low Freq |
N/A 22000 MHz |
LO High Freq |
N/A 32000 MHz |
RF Low Freq |
N/A 22000 MHz |
RF High Freq |
N/A 32000 MHz |
IF Low Freq |
N/A 0 MHz |
IF High Freq |
N/A 4500 MHz |
Conv Loss |
N/A 9 dB |
Part Number |
N/A XR-B5H2-0409D |
