XM-A7E6-0604D
XR-A7E6-0604D ROHS

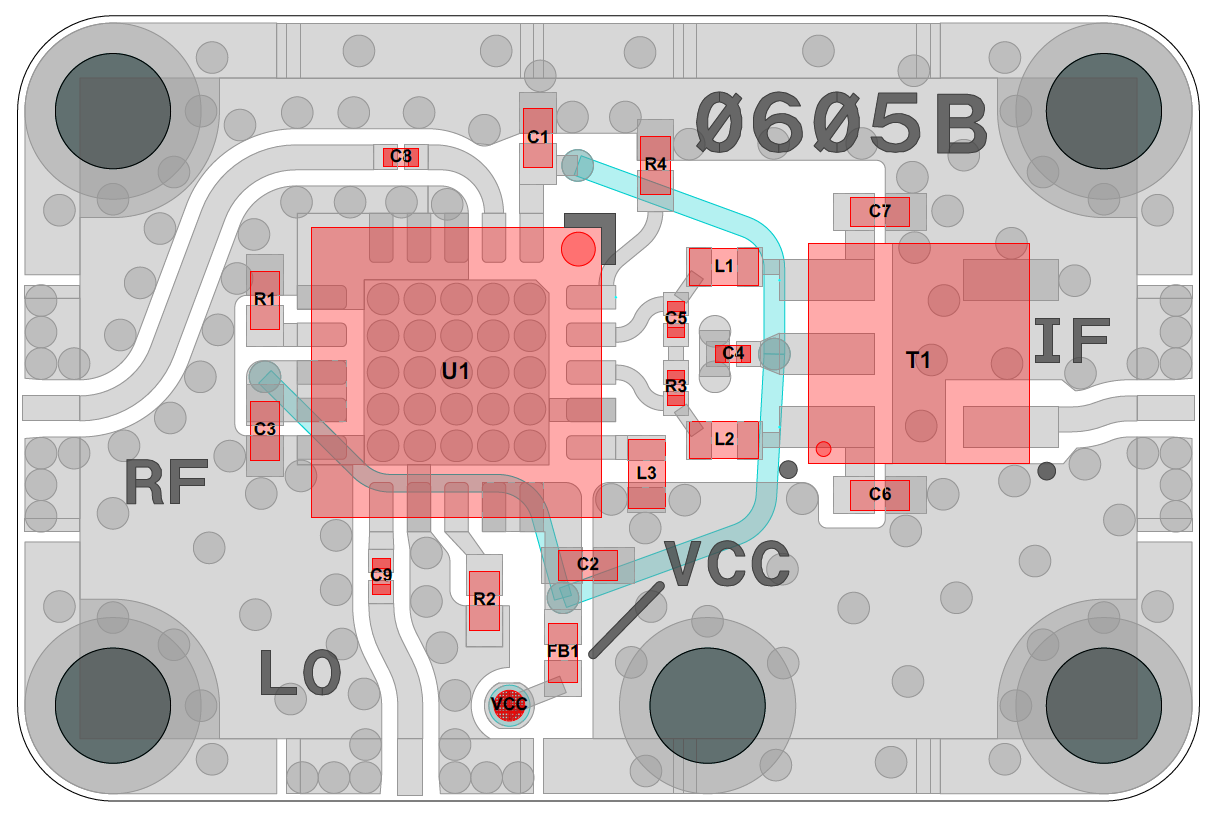

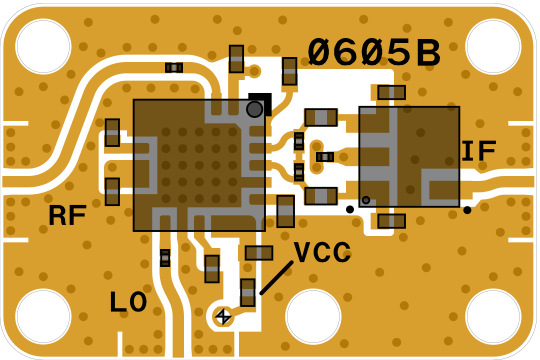

Mixer, F1701NBGI [PCB: 0605]
Recommended Bias Controller: XM-A8E8-0604D

Configurations

Product Page

 N/A IDT

Spec Sheet

 N/A F1701NBGI

LO Level

 N/A 0 dBm

LO Low Freq

 N/A 630 MHz

LO High Freq

 N/A 1260 MHz

RF Low Freq

 N/A 698 MHz

RF High Freq

 N/A 960 MHz

IF Low Freq

 N/A 70 MHz

IF High Freq

 N/A 300 MHz

Conv Loss

 N/A -11.8 dB

N/A

Part Number

 N/A XR-A7E6-0604D
