XM-A6J4-0604D
XR-A6J4-0604D ROHS

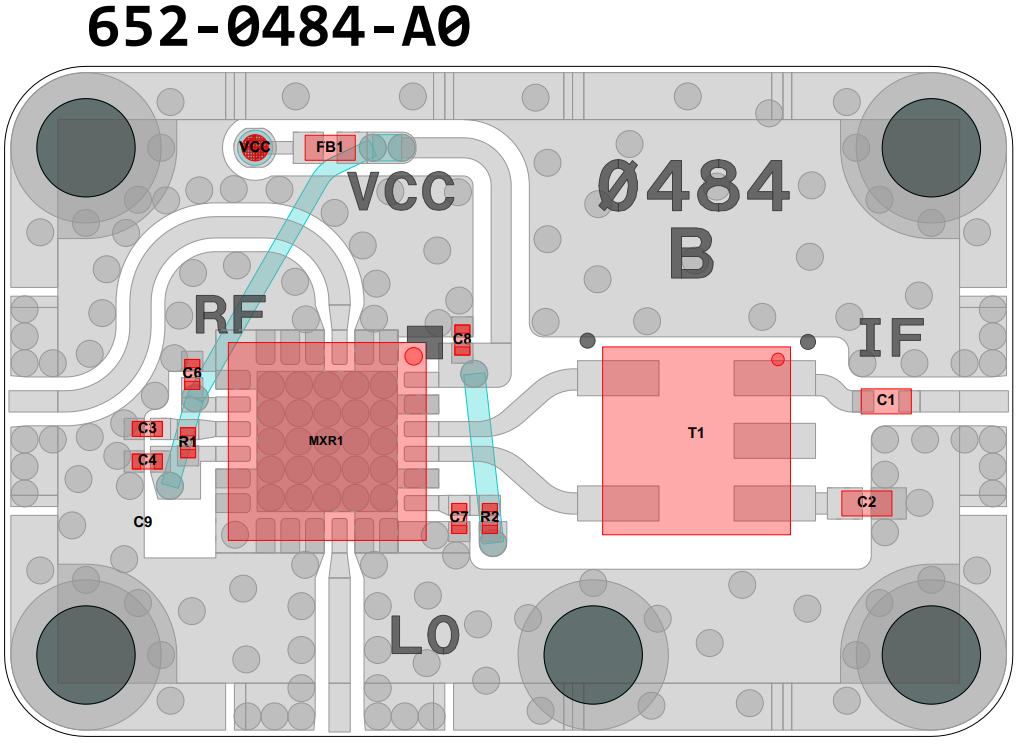

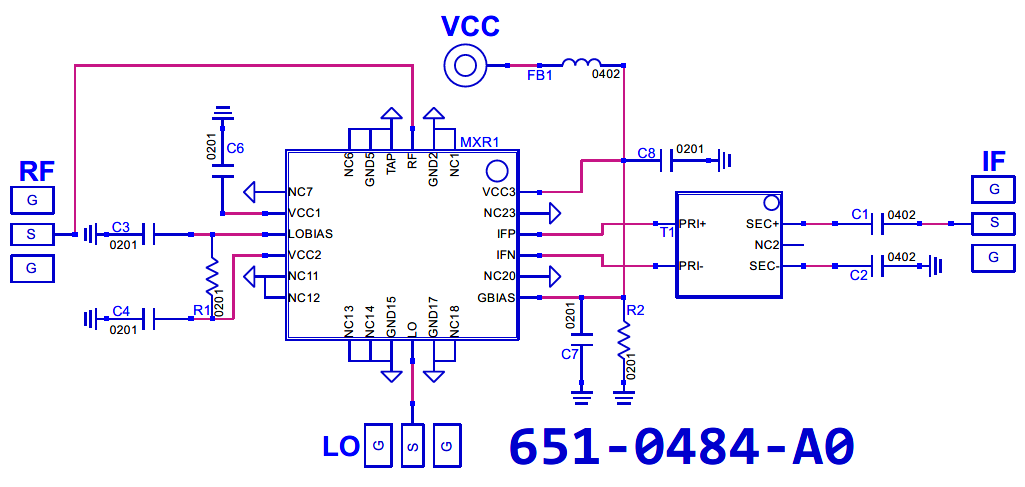

Mixer, HMC687LP4E [PCB: 0484]
Recommended Bias Controller: XM-A2J9-0404D-SP
Product Page |
N/A ADI |
Spec Sheet |
N/A HMC687LP4E |
LO Level |
N/A 0 dBm |
LO Low Freq |
N/A 1700 MHz |
LO High Freq |
N/A 2400 MHz |
RF Low Freq |
N/A 1700 MHz |
RF High Freq |
N/A 2200 MHz |
IF Low Freq |
N/A 4.5 MHz |
IF High Freq |
N/A 500 MHz |
Conv Loss |
N/A 8 dB |
Part Number |
N/A XR-A6J4-0604D |
