XM-A658-0404C-01
XR-A658-0404C-01 ROHS

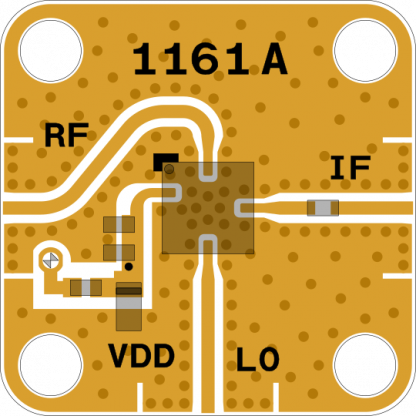

Mixer, HMC264LC3B [PCB: 1161]
Connectorized Housing
Included Bias Controller: XM-B5G7-0404D
Product Page |
N/A ADI |
Spec Sheet |
N/A HMC264LC3B |
LO Level |
N/A -4 dBm |
LO Low Freq |
N/A 10500 MHz |
LO High Freq |
N/A 15500 MHz |
RF Low Freq |
N/A 21000 MHz |
RF High Freq |
N/A 31000 MHz |
IF Low Freq |
N/A 0 MHz |
IF High Freq |
N/A 6000 MHz |
Conv Loss |
N/A 9 dB |
Connector Series |
N/A 2.92mm |
|
N/A |
Part Number |
N/A XR-A658-0404C-01 |
