XM-A4B5-0404D
XR-A4B5-0404D ROHS

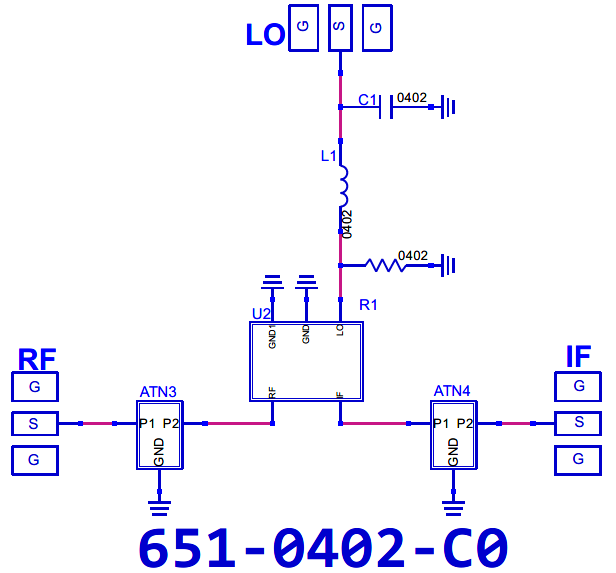

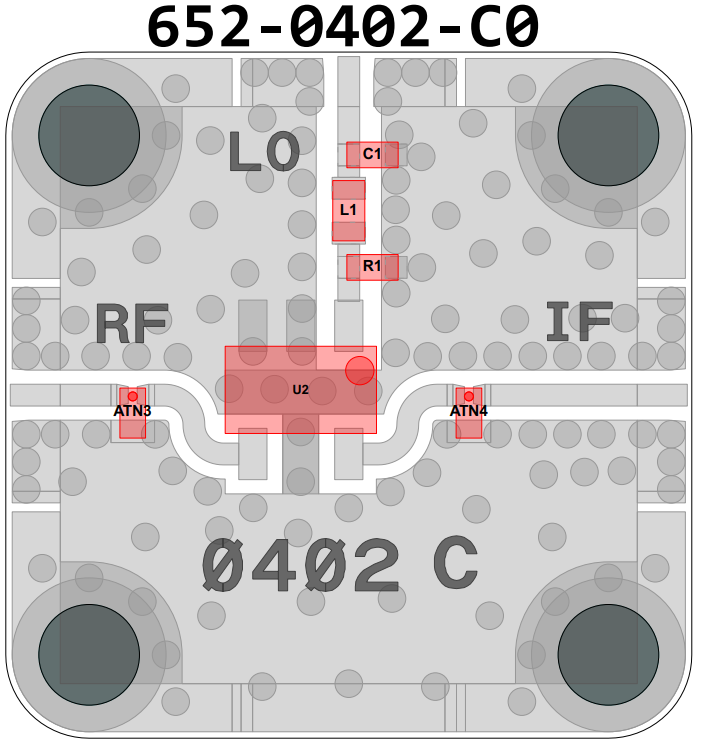

Mixer, MAMXSS0012 [PCB: 0402]
Product Page |
N/A Macom |
Spec Sheet |
N/A MAMXSS0012 |
LO Level |
N/A 5 dBm |
LO Low Freq |
N/A 800 MHz |
LO High Freq |
N/A 1000 MHz |
RF Low Freq |
N/A 800 MHz |
RF High Freq |
N/A 1000 MHz |
IF Low Freq |
N/A 0 MHz |
IF High Freq |
N/A 200 MHz |
Conv Loss |
N/A 8 dB |
Part Number |
N/A XR-A4B5-0404D |
