XM-B6K6-0409C-01
XR-B6K6-0409C-01 ROHS

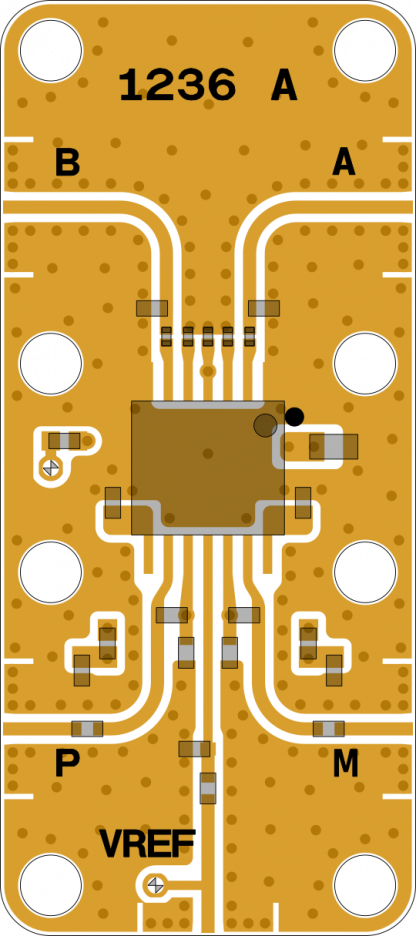

Gain and Phase Detector, AD8302ARUZ [PCB: 1236]
Included Bias Controller: XM-C111-0409D
Product Page |
N/A ADI |
Spec Sheet |
N/A AD8302ARUZ |
Low Freq |
N/A 0 MHz |
High Freq |
N/A 2700 MHz |
Pin Low |
N/A -60 dBm |
Pin High |
N/A 0 dBm |
Phase Range |
N/A 90 Deg |
Vout Low |
N/A 0.03 V |
Vout High |
N/A 1.8 V |
Connector Series |
N/A SuperSMA |
Part Number |
N/A XR-B6K6-0409C-01 |
