XM-A5R9-0404D
XR-A5R9-0404D ROHS

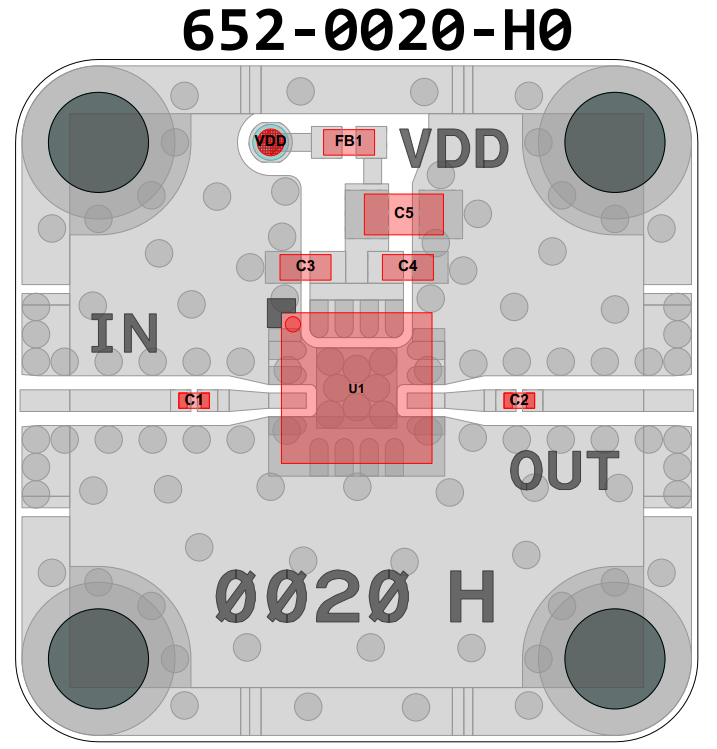

Divider, HMC447LC3 [PCB: 0020]
Recommended Bias Controller: XM-A2J9-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC447LC3

Low Freq

 N/A 10000 MHz

High Freq

 N/A 26000 MHz

Div N

 N/A 4

Pin Low

 N/A 15 dBm

Pin High

 N/A 10 dBm

Pout

 N/A -4 dBm

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5.0V
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A5R9-0404D
