XM-A5P2-0404D
XR-A5P2-0404D ROHS

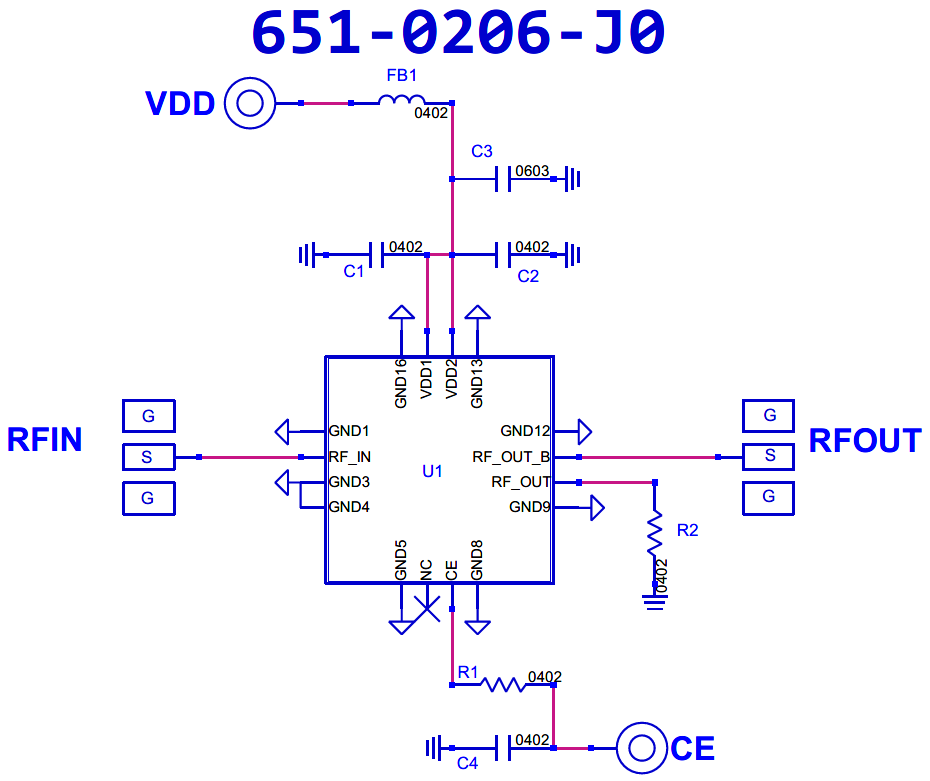

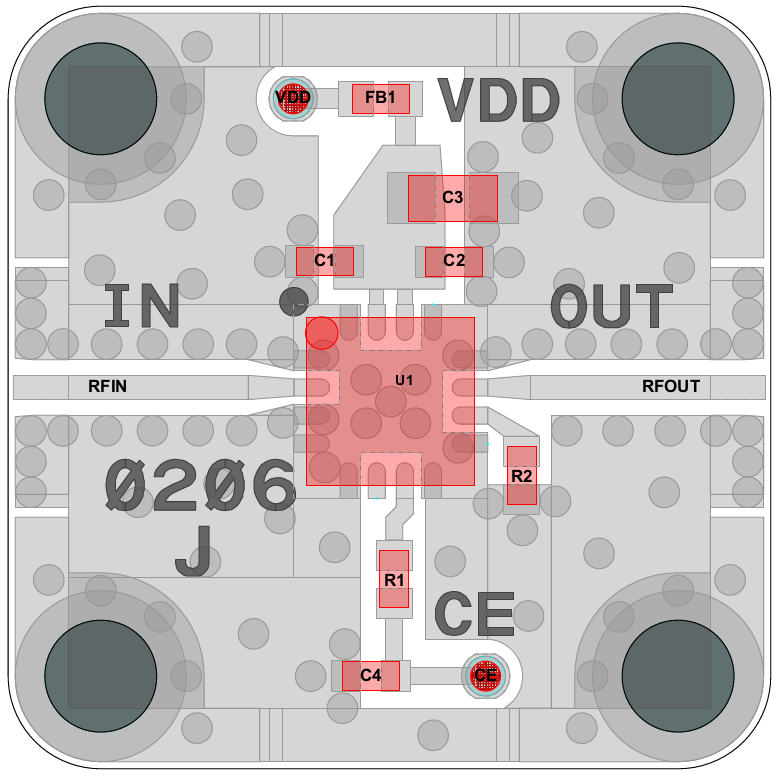

Divider, ADF5000BCPZ [PCB: 0206]
Recommended Bias Controller: XM-A2J8-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A ADF5000BCPZ

Low Freq

 N/A 4000 MHz

High Freq

 N/A 18000 MHz

Div N

 N/A 2

Pin Low

 N/A -10 dBm

Pin High

 N/A 10 dBm

Pout

 N/A -5 dBm

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = 3.3V
Verify IDD ~30mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-A5P2-0404D
