XM-D393-0409D
XR-D393-0409D ROHS

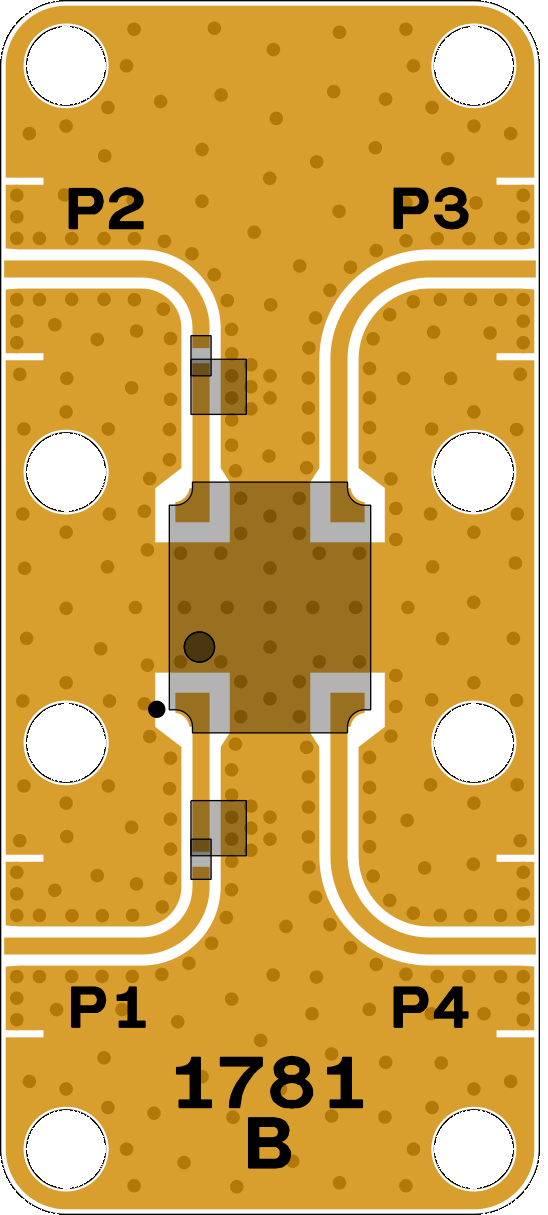

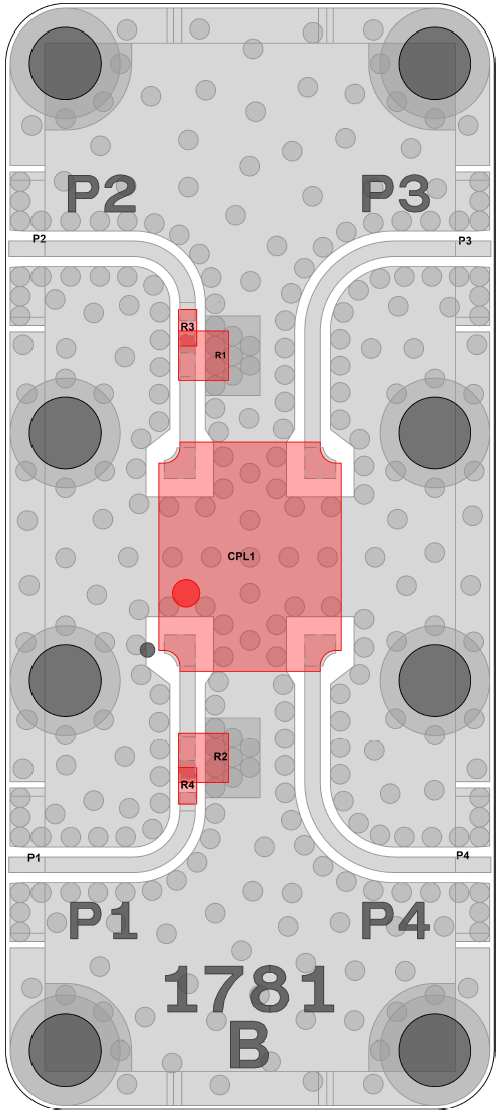

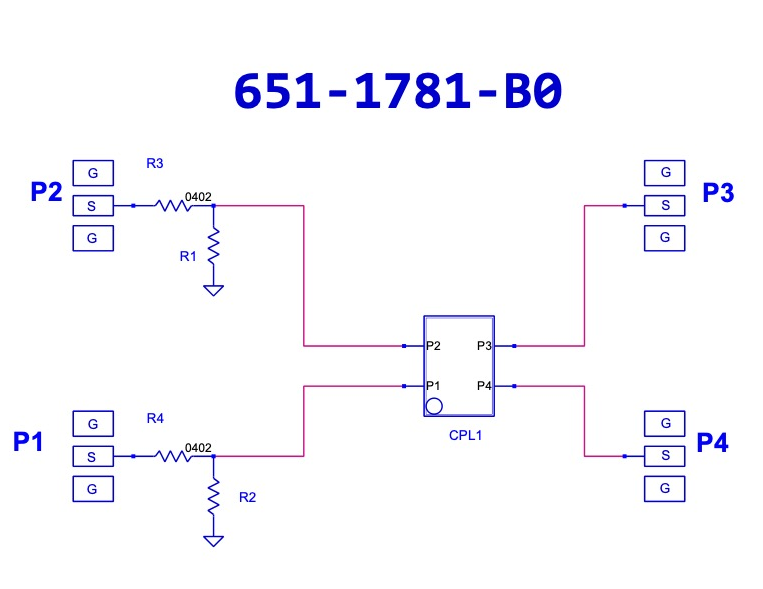

Coupler, X3C26P1-03S [PCB: 1781]
Product Page |
N/A Anaren |
Spec Sheet |
N/A X3C26P1-03S |
Low Freq |
N/A 2300 MHz |
High Freq |
N/A 2910 MHz |
Coupling |
N/A 3 dB |
IL |
N/A 0.2 dB |
Isolation |
N/A 20 dB |
Amp Bal |
N/A 0.4 dB |
Phase Bal |
N/A 4 Deg |
Directivity |
N/A 17 dB |
Part Number |
N/A XR-D393-0409D |
