XM-E278-0404D
XR-E278-0404D ROHS

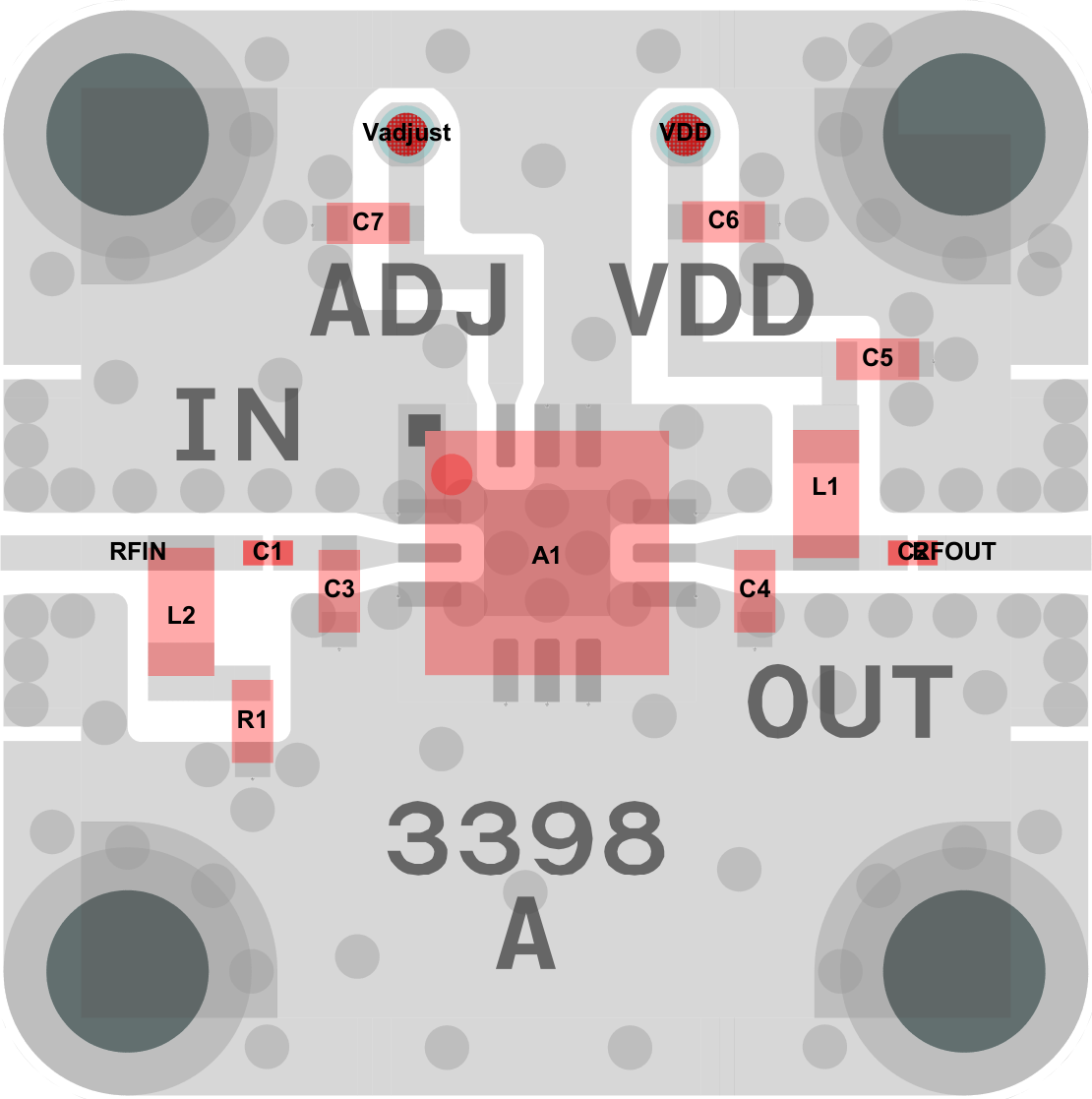

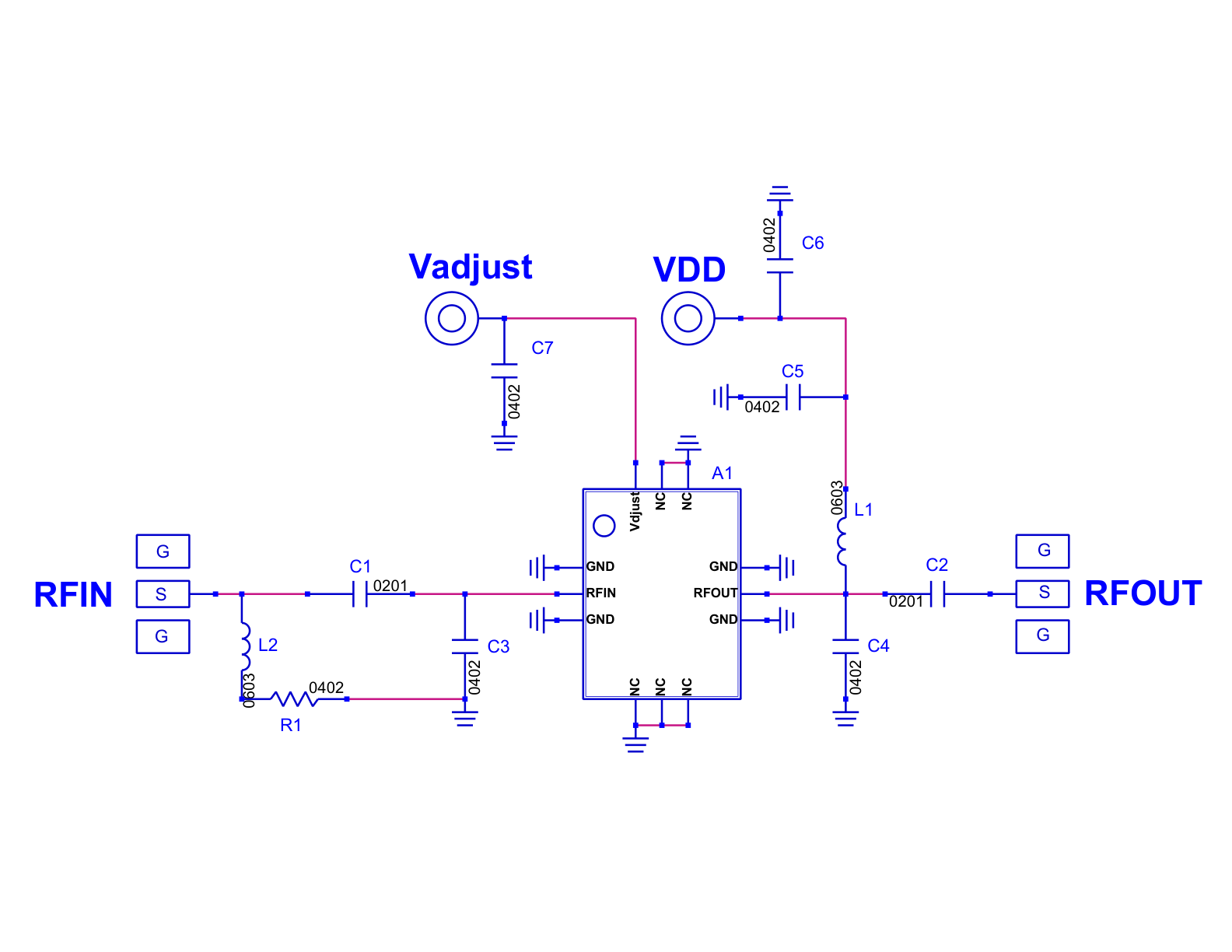

Amplifier, PMA3-73-1W+ [PCB: 3398]
Recommended Bias Controller: XM-E2N5-0404D-SP
Product Page |
N/A Mini-Circuits |
Spec Sheet |
N/A
PMA3-73-1W+ |
Low Freq |
N/A 300 MHz |
High Freq |
N/A 7500 MHz |
Gain |
N/A 19.8 dB |
NF |
N/A 2.5 dB |
P1dB |
N/A 31.7 dBm |
IP3 |
N/A 37 dBm |
Voltage |
N/A 10.0 V |
Current |
N/A 190 mA |
Part Number |
N/A XR-E278-0404D ROHS |
