XM-E267-0404D
XR-E267-0404D ROHS

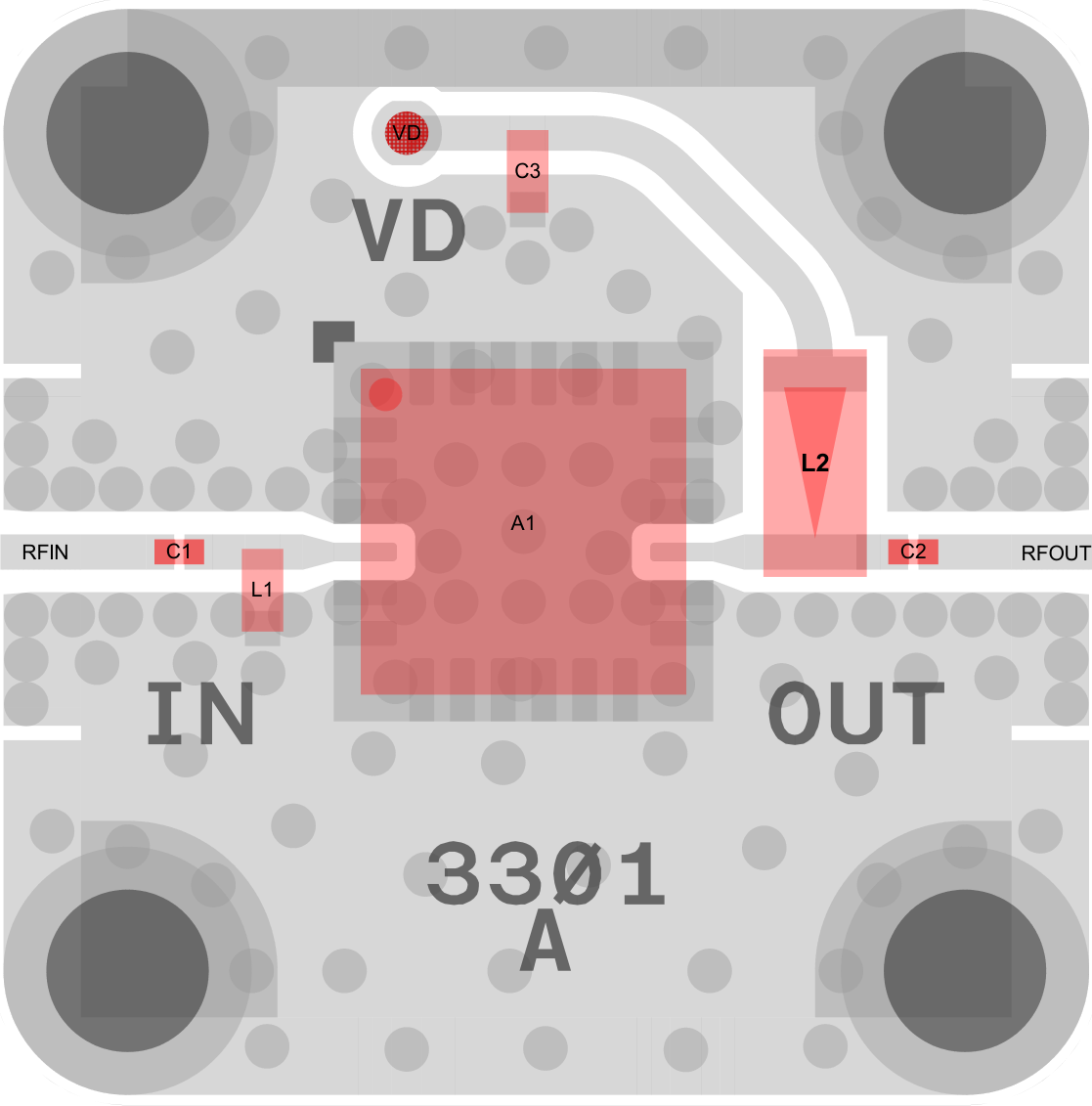

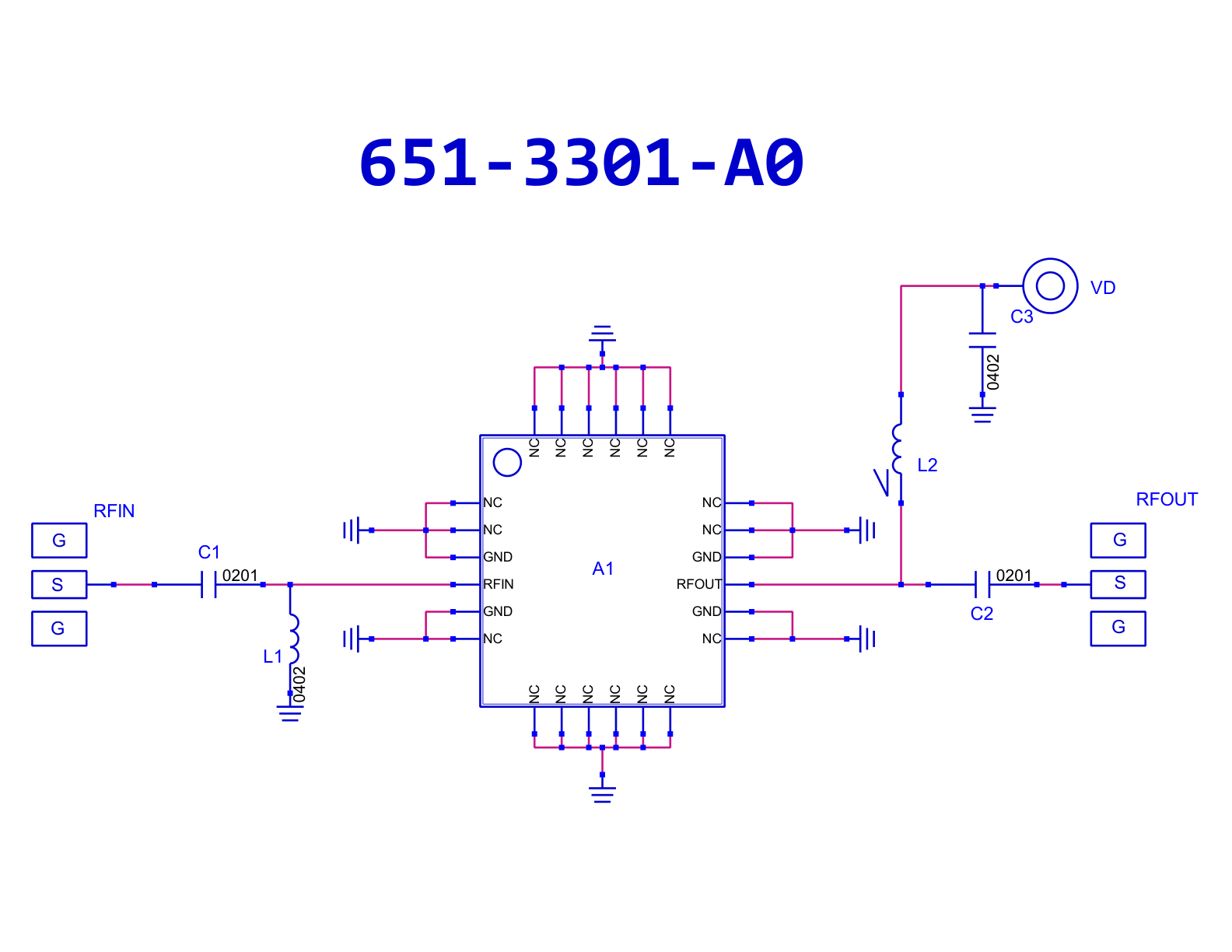

Amplifier, AM1193 [PCB: 3301]
Recommended Bias Controller: XM-A2J5-0404D-SP
Product Page |
N/A Atlanta Micro |
Spec Sheet |
N/A
AM1193 |
Low Freq |
N/A 20 MHz |
High Freq |
N/A 6000 MHz |
Gain |
N/A 15 dB |
NF |
N/A 2 dB |
P1dB |
N/A 30 dBm |
IP3 |
N/A 40 dBm |
Voltage |
N/A 12.0 V |
Current |
N/A 315 mA |
Part Number |
N/A XR-E267-0404D ROHS |
