XM-E266-0404D
XR-E266-0404D ROHS

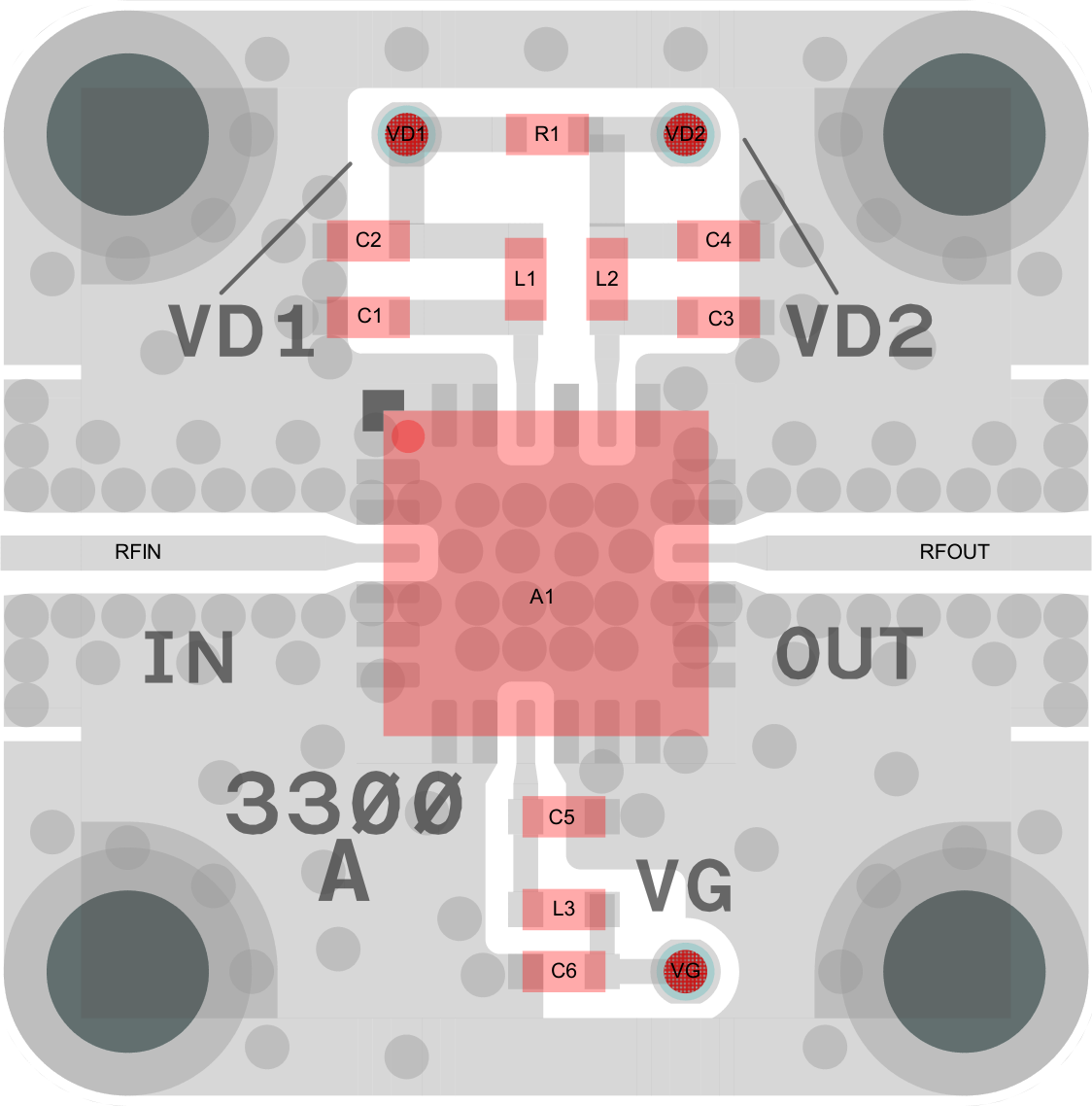

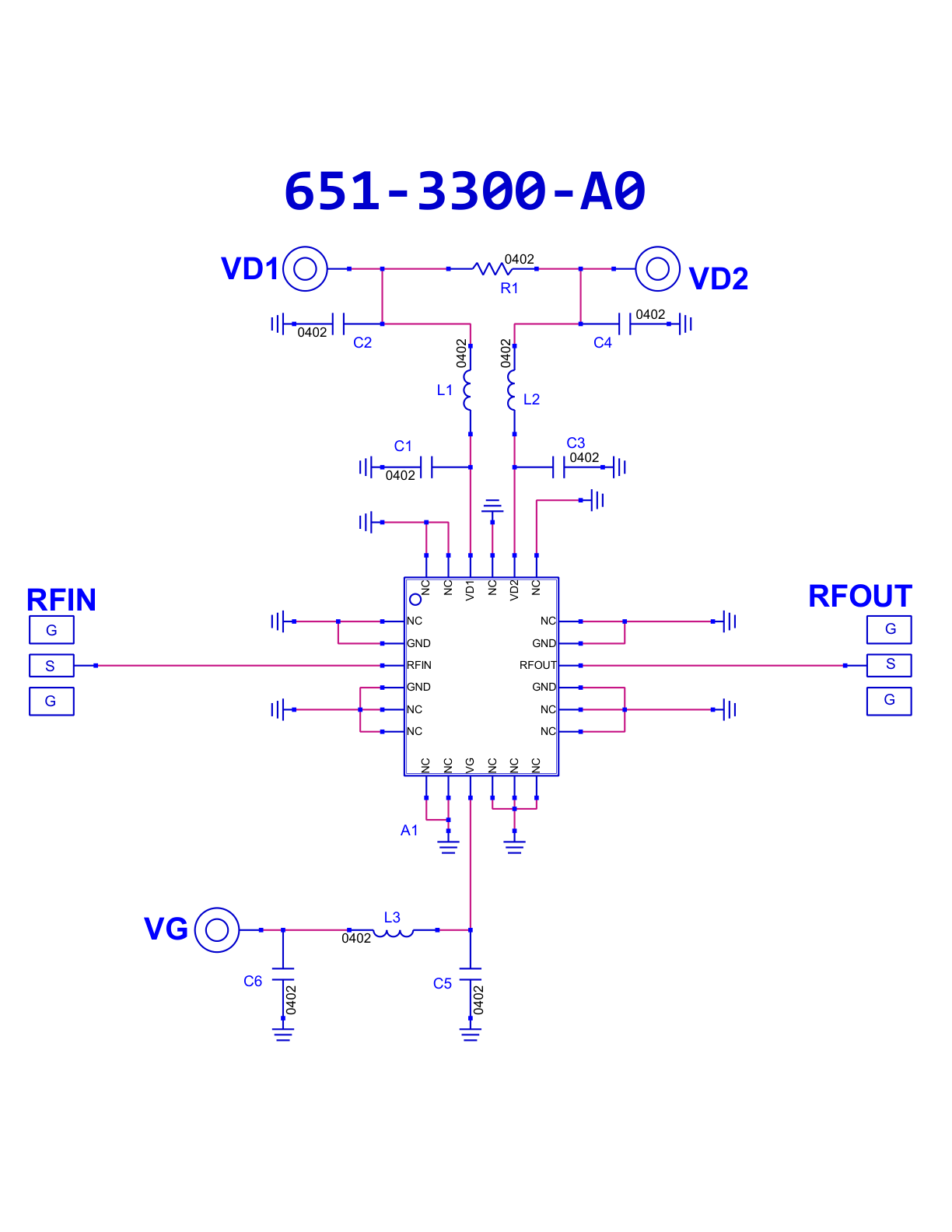

Amplifier, AM1175 [PCB: 3300]
Recommended Bias Controller: XM-E2M9-0404D-SP

Product Page

 N/A Atlanta Micro

Spec Sheet

 N/A AM1175

Low Freq

 N/A 6000 MHz

High Freq

 N/A 18000 MHz

Gain

 N/A 21 dB

NF

 N/A 3.7 dB

P1dB

 N/A 25 dBm

IP3

 N/A 35 dBm

Voltage

 N/A 5 V

Current

 N/A 175 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -4V
2. Apply VD1,2 = +5V
3. Adjust VG more positive until IDQ reaches 175mA
Note: VG1 -1.68V typ. Do not exceed 0V.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -4V
3. Adjust VD1,2 to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-E266-0404D
