XM-E259-0607D
XR-E259-0607D ROHS

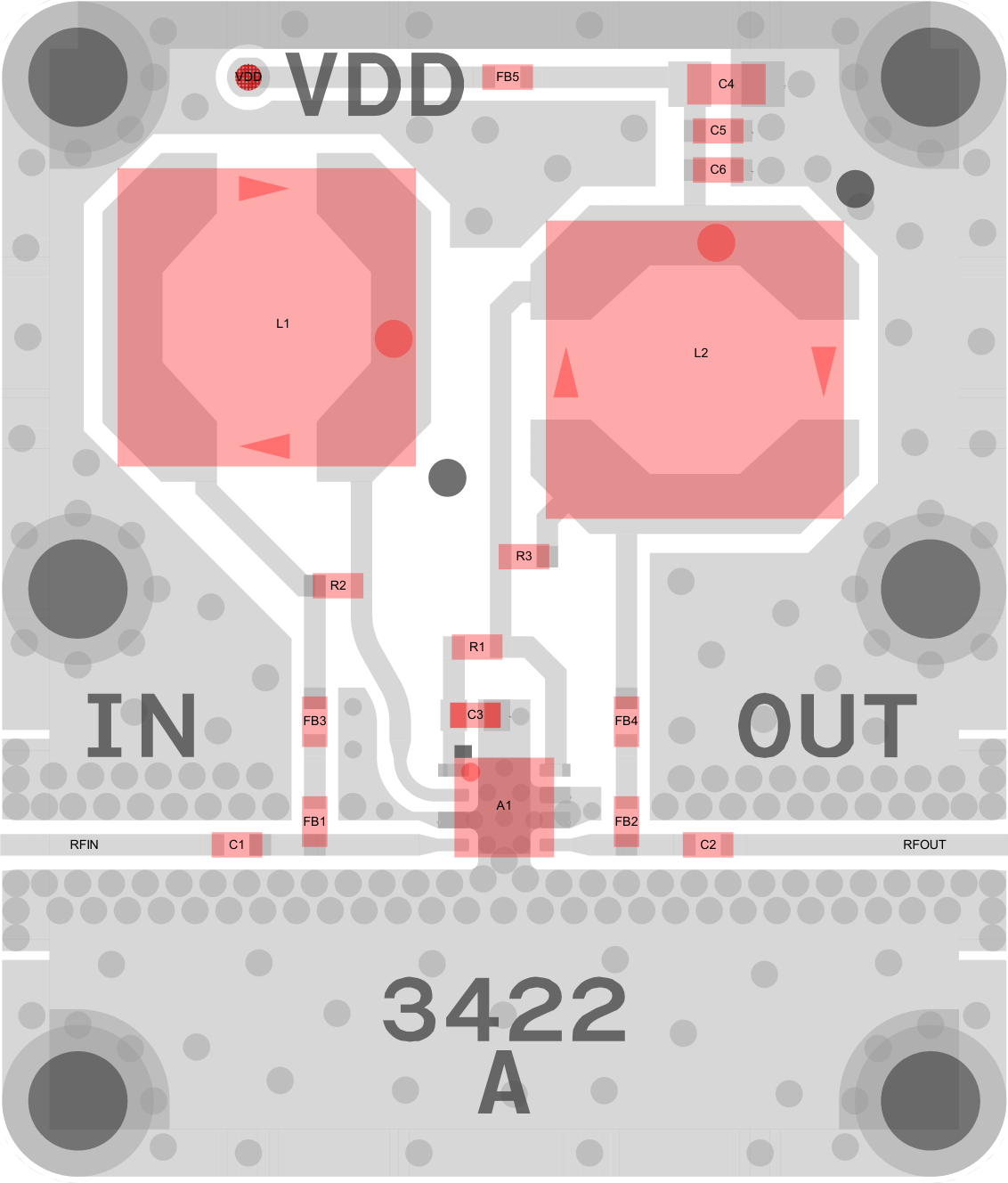

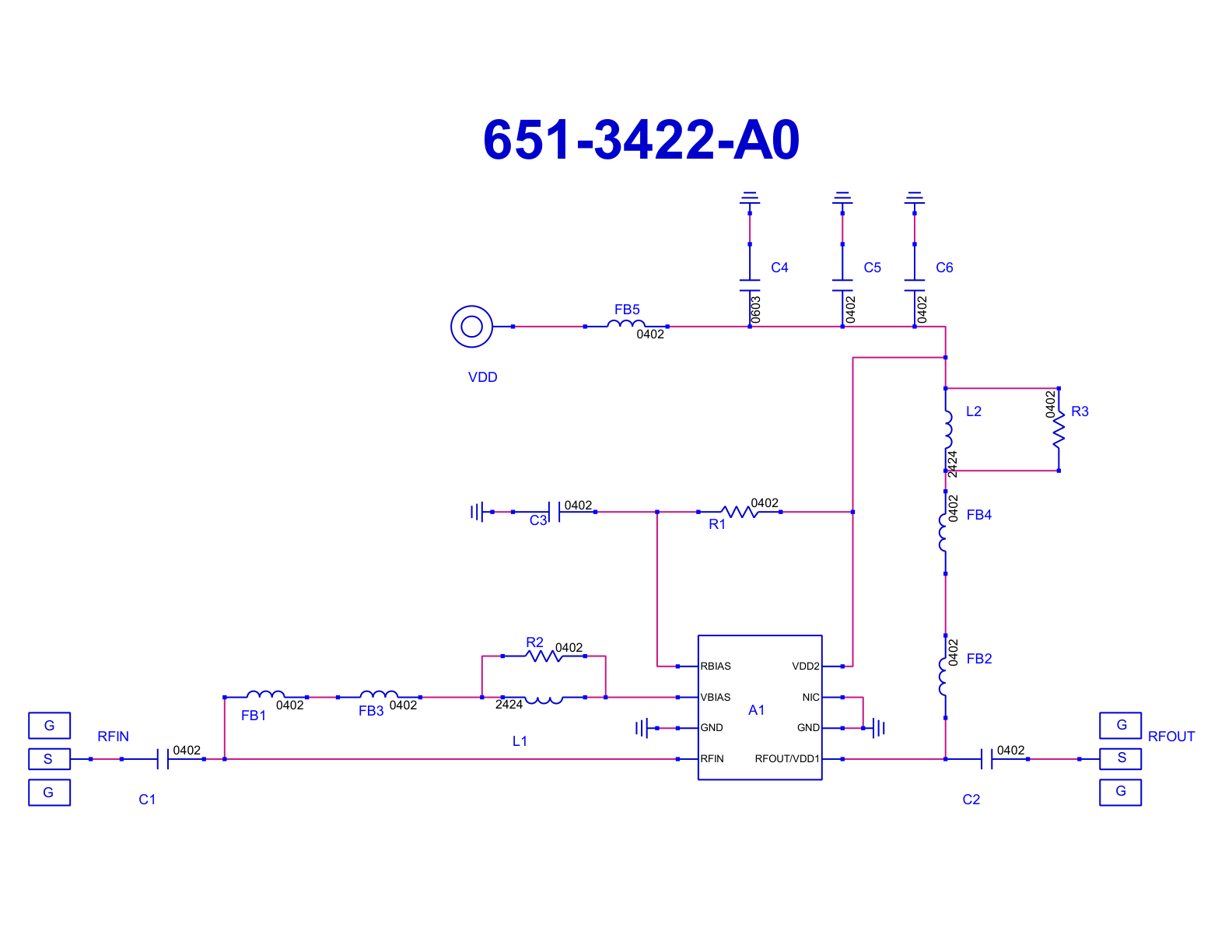

Amplifier, ADL8122ACPZN [PCB: 3422]
Recommended Bias Controller: XM-C743-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADL8122ACPZN

Low Freq

 N/A 0.01 MHz

High Freq

 N/A 10000 MHz

Gain

 N/A 16 dB

NF

 N/A 2 dB

P1dB

 N/A 20 dBm

IP3

 N/A 35 dBm

Voltage

 N/A 3 V

Current

 N/A 90 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify ID ~95mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-E259-0607D
