XM-E1J3-0404D
XR-E1J3-0404D ROHS

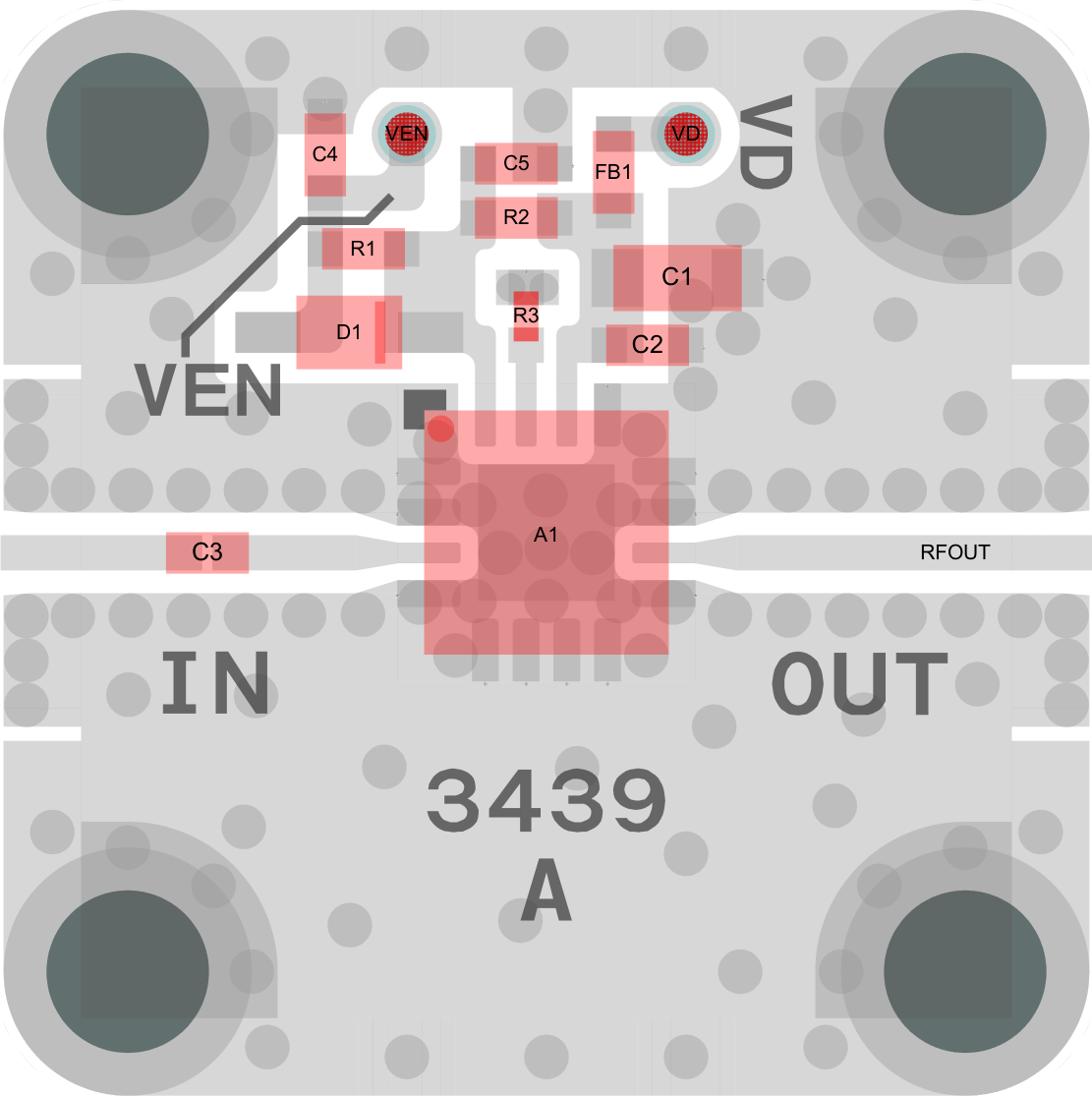

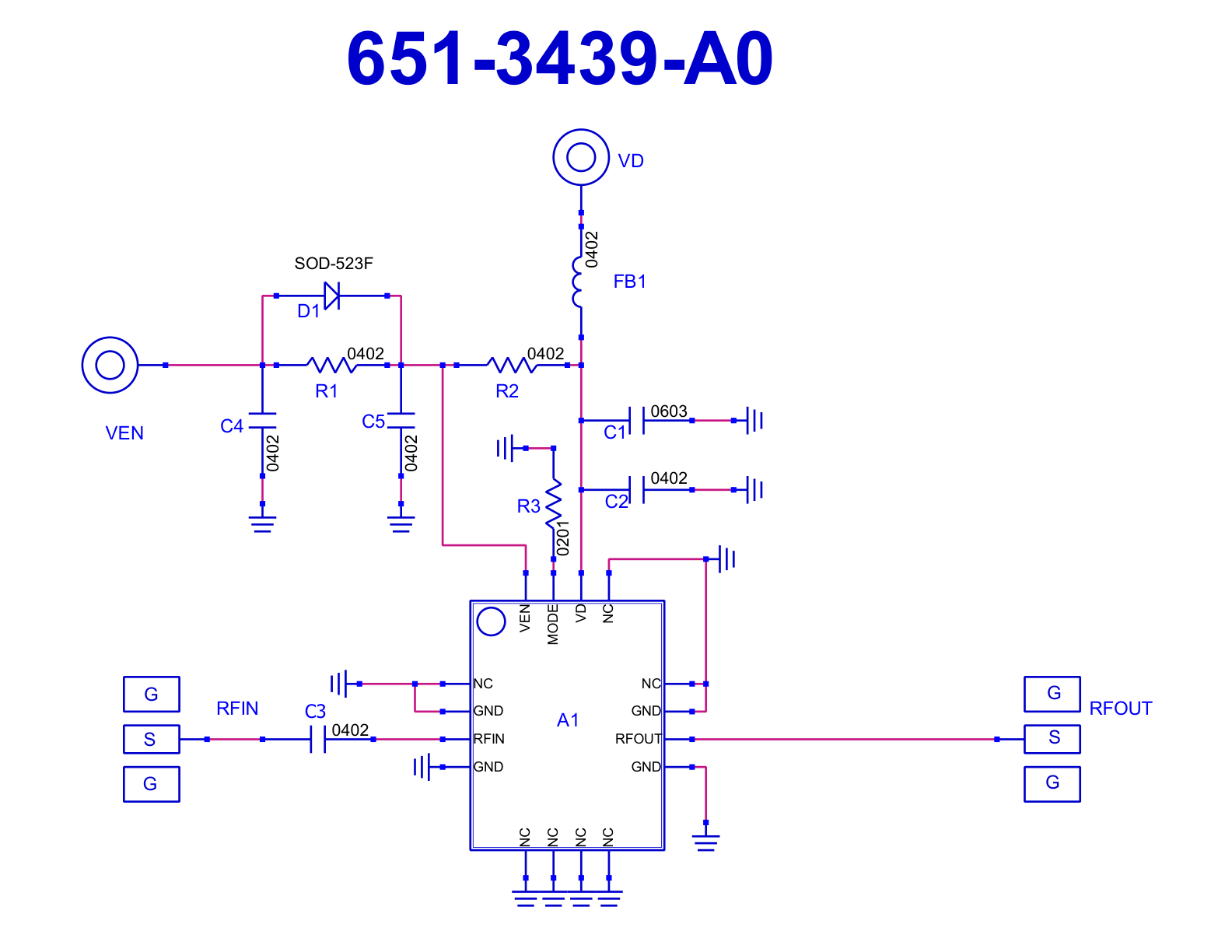

Amplifier, CMX90B701QF [PCB: 3439]

Product Page

 N/A CML Micro

Spec Sheet

 N/A CMX90B701QF

Low Freq

 N/A 17000 MHz

High Freq

 N/A 23000 MHz

Gain

 N/A 17 dB

NF

 N/A 4 dB

P1dB

 N/A 7.5 dBm

IP3

 N/A 17.5 dBm

Voltage

 N/A 3 V

Current

 N/A 10 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VD = +4V
2. Apply EN = +4V @0.37mA (ON)
Verify ID ~10mA (low current mode)
3. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust EN to 0V (OFF)
2. Adjust VD to 0V

Part Number

 N/A XR-E1J3-0404D
