XM-D8J1-0404D
XR-D8J1-0404D ROHS

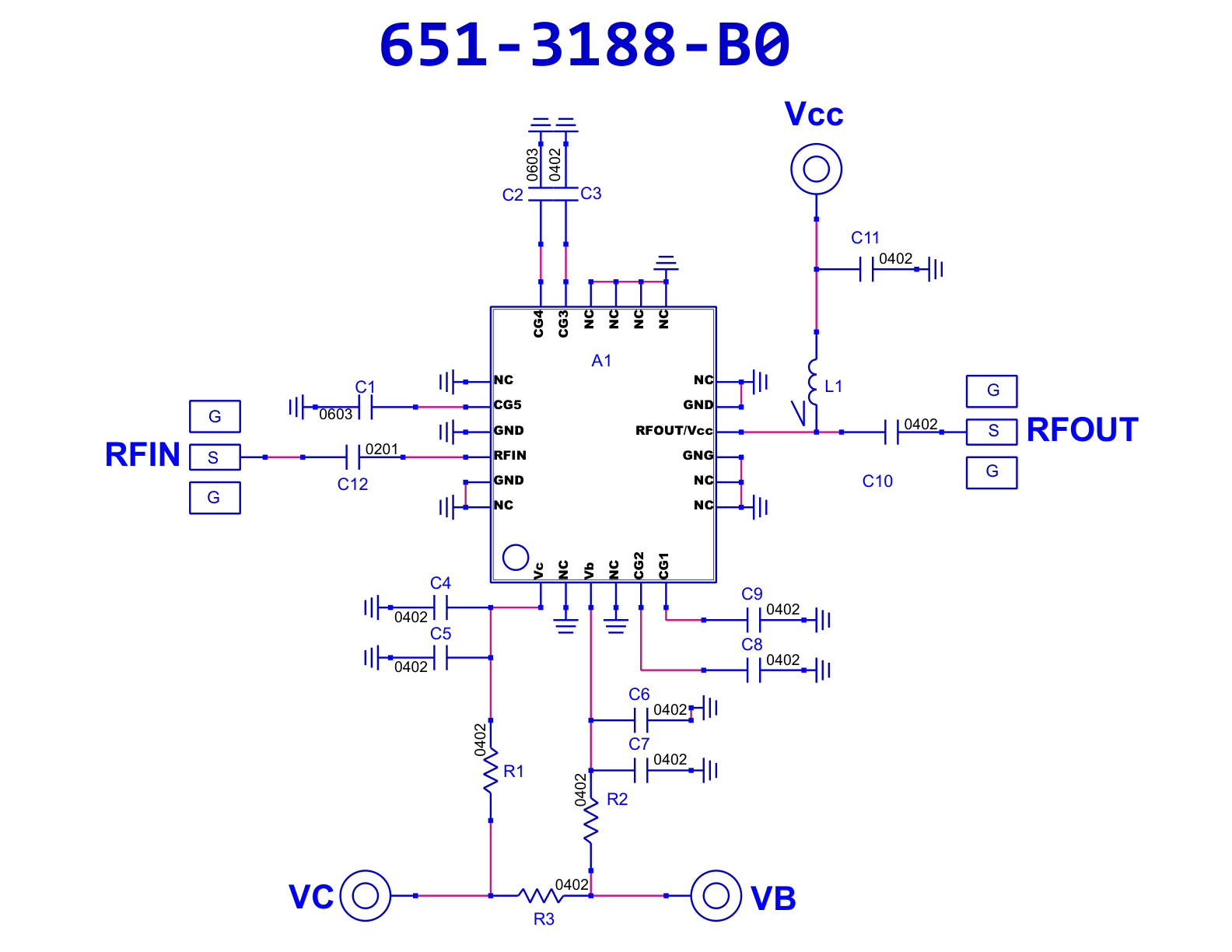

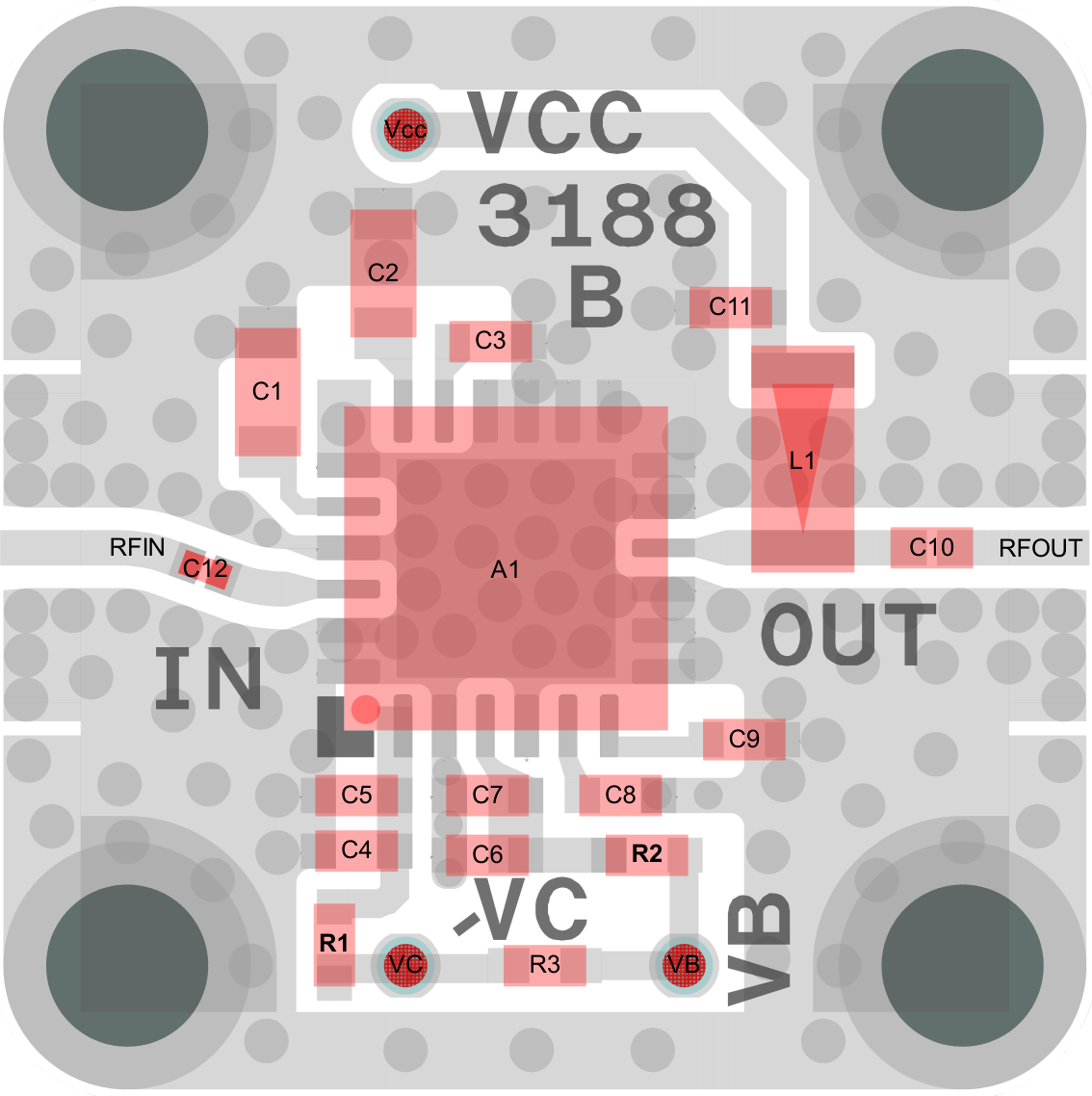

Amplifier, LVA-273PN+ [PCB: 3188]
Recommended Bias Controller: XM-C743-0404D-SP
Product Page |
N/A Mini-Circuits |
Spec Sheet |
N/A
LVA-273PN+ |
Low Freq |
N/A 10 MHz |
High Freq |
N/A 26500 MHz |
Gain |
N/A 17.2 dB |
NF |
N/A 3.7 dB |
P1dB |
N/A 18 dBm |
IP3 |
N/A 28 dBm |
Voltage |
N/A 5.0 V |
Current |
N/A 85 mA |
Part Number |
N/A XR-D8J1-0404D ROHS |
