XM-D7B5-0404D
XR-D7B5-0404D ROHS

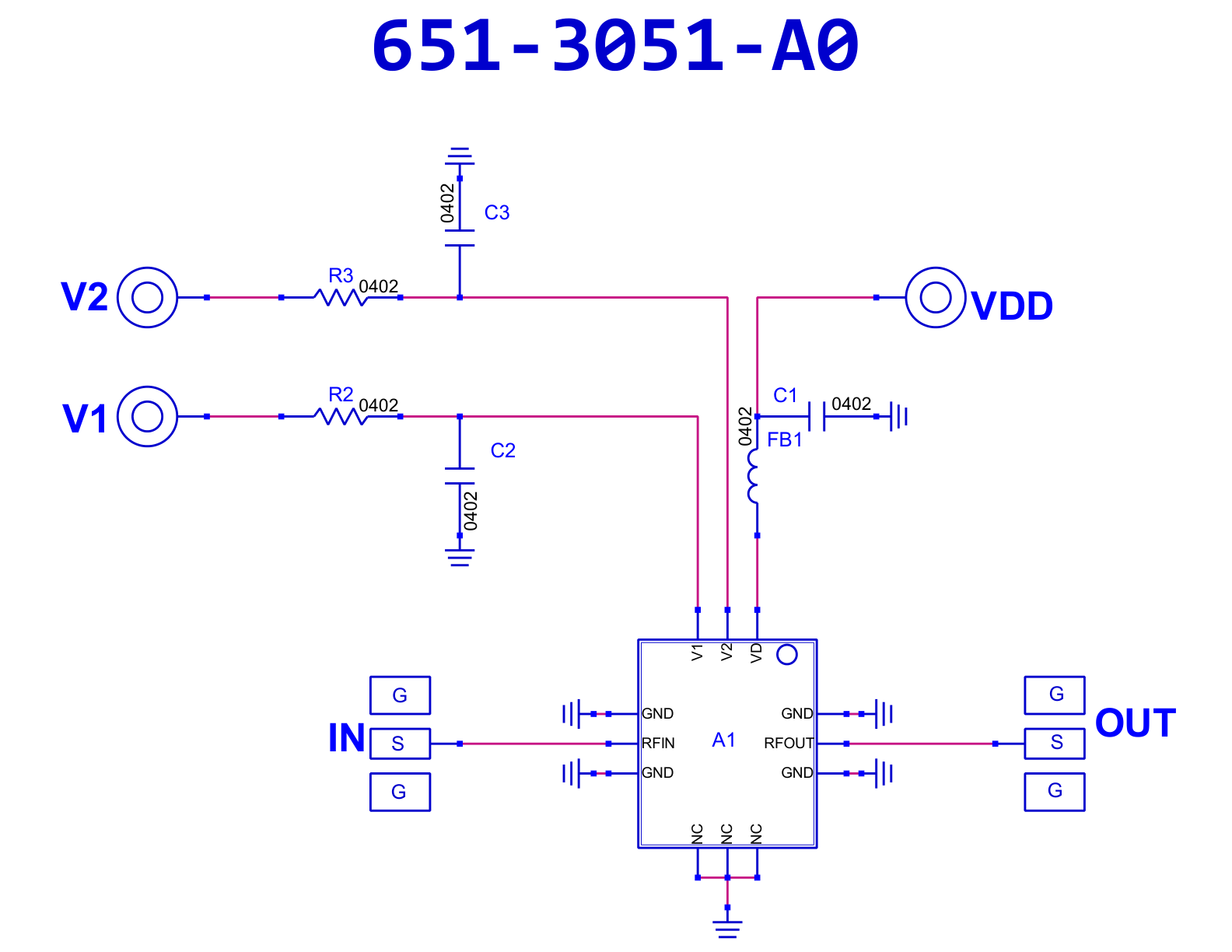

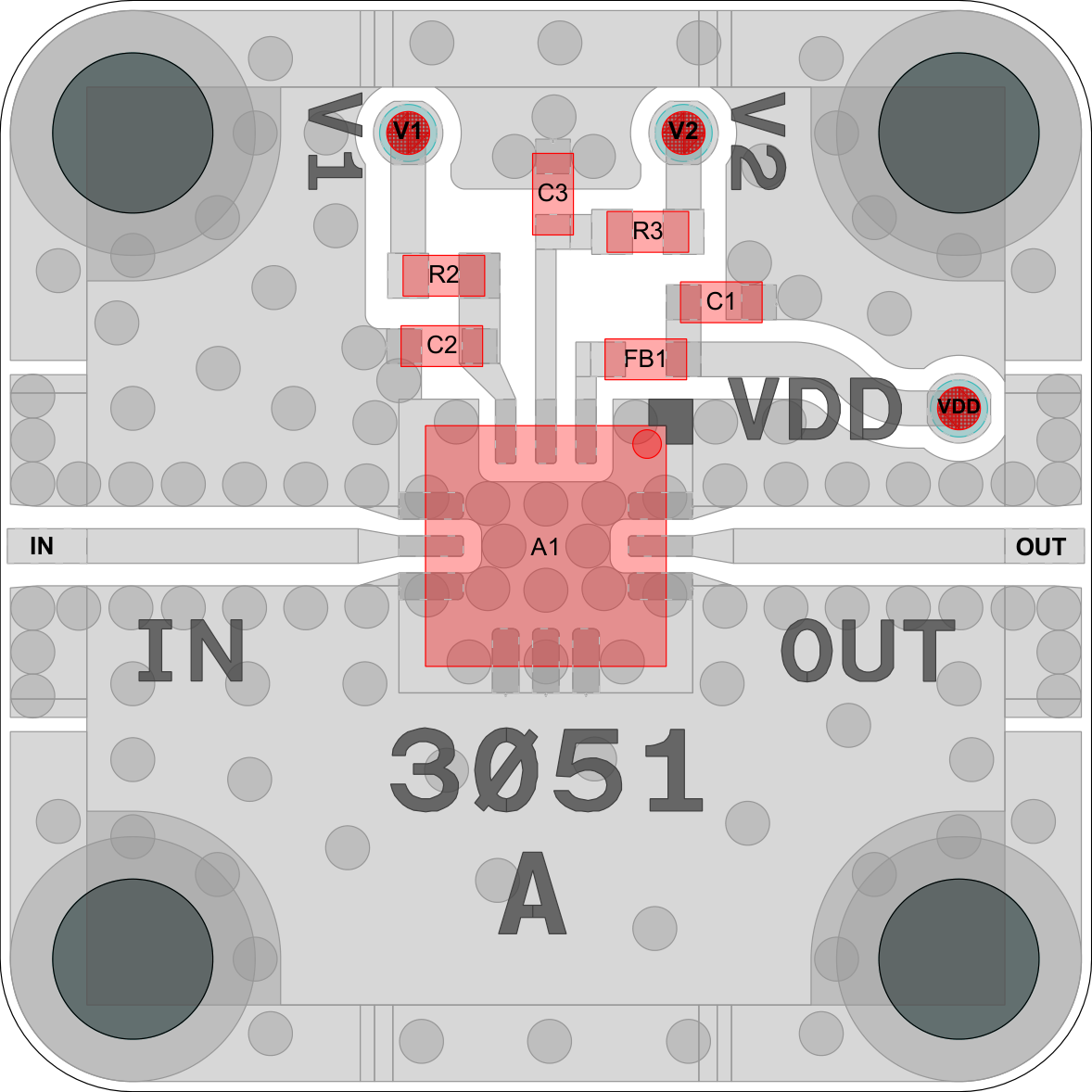

Amplifier, AM1145 [PCB: 3051]

Product Page

 N/A Atlanta Micro

Spec Sheet

 N/A AM1145

Low Freq

 N/A 2000 MHz

High Freq

 N/A 18000 MHz

Gain

 N/A 9.5 dB

NF

 N/A 4 dB

P1dB

 N/A 16.4 dBm

IP3

 N/A 28 dBm

Voltage

 N/A 3.3 V

Current

 N/A 60 mA

N/A

Bias Instruction

 N/A

Note: *V1,V2 = 0,0; 0,3.3; 3.3,0; 3.3,3.3 = 2dB; 2.7dB; 3.1dB; 3.7dB Gain Slope, respectively

Power-up Sequence
1. Apply VDD = +3.3V
Verify ID ~60mA
2. Set V1,2
3. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust V1,2 to 0V
2. Adjust VDD to 0V

Part Number

 N/A XR-D7B5-0404D
