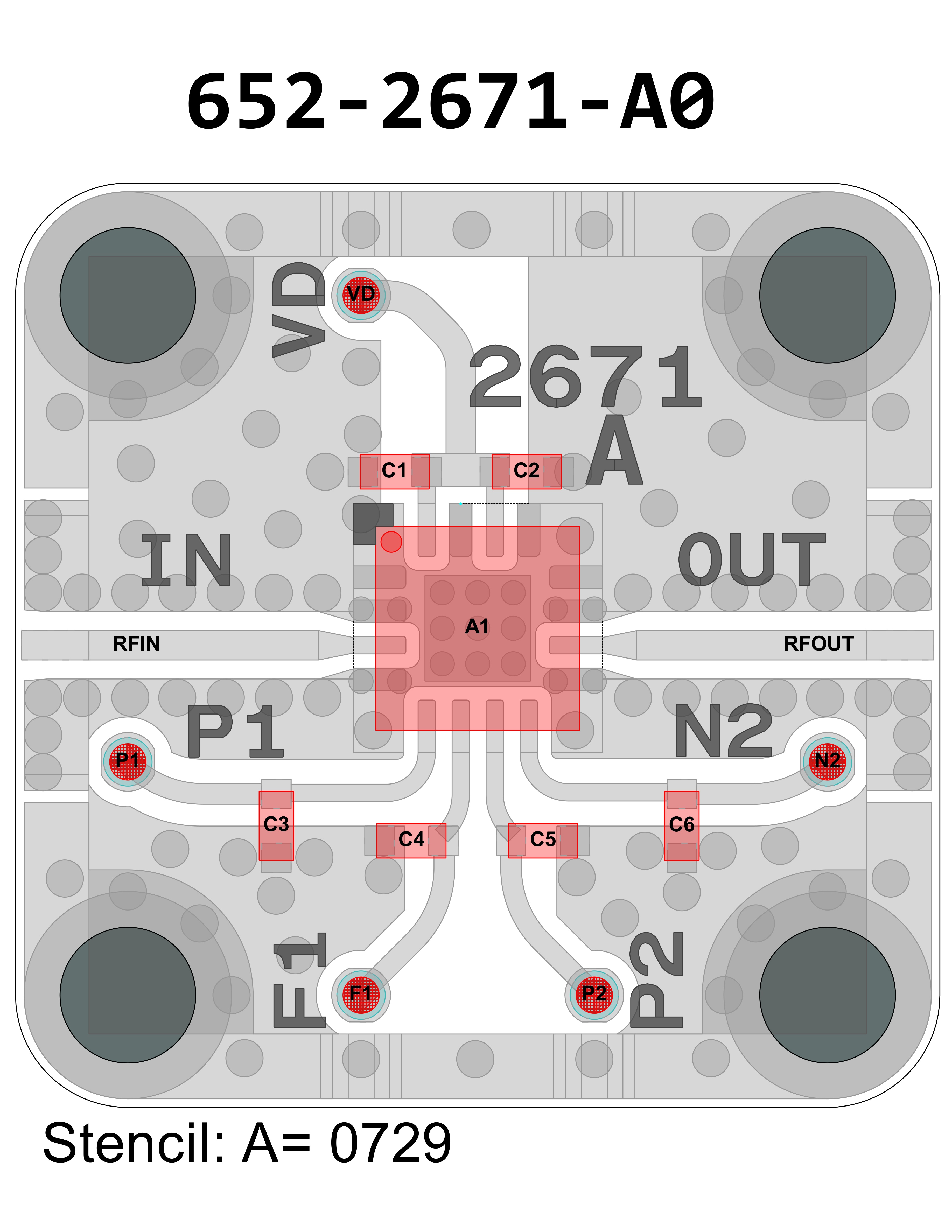

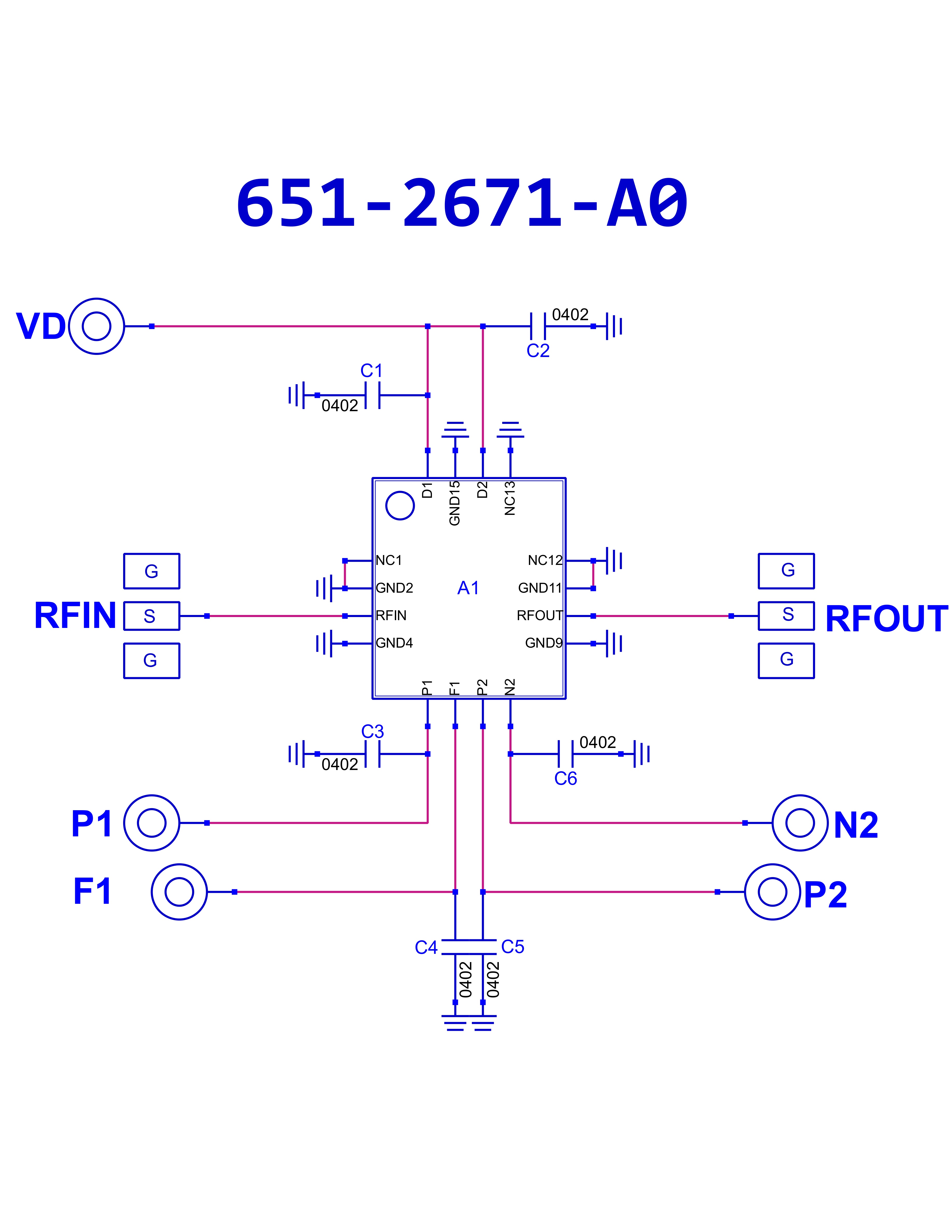

Amplifier, CHA3397-QDG [PCB: 3046]

Product Page

 N/A UMS

Spec Sheet

 N/A CHA3397-QDG

Low Freq

 N/A 36000 MHz

High Freq

 N/A 40500 MHz

Gain

 N/A 21 dB

NF

 N/A 7 dB

P1dB

 N/A 18 dBm

IP3

 N/A 29 dBm

Voltage

 N/A 4 V

Current

 N/A 200 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG ~ -1V
2. Apply VD = +4V
3. Adjust VG more positive until ID reaches 200mA
Note: -0.4 typ.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to ~ -1V
3. Adjust VD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-D785-0404D
