XM-D783-0404D
XR-D783-0404D ROHS

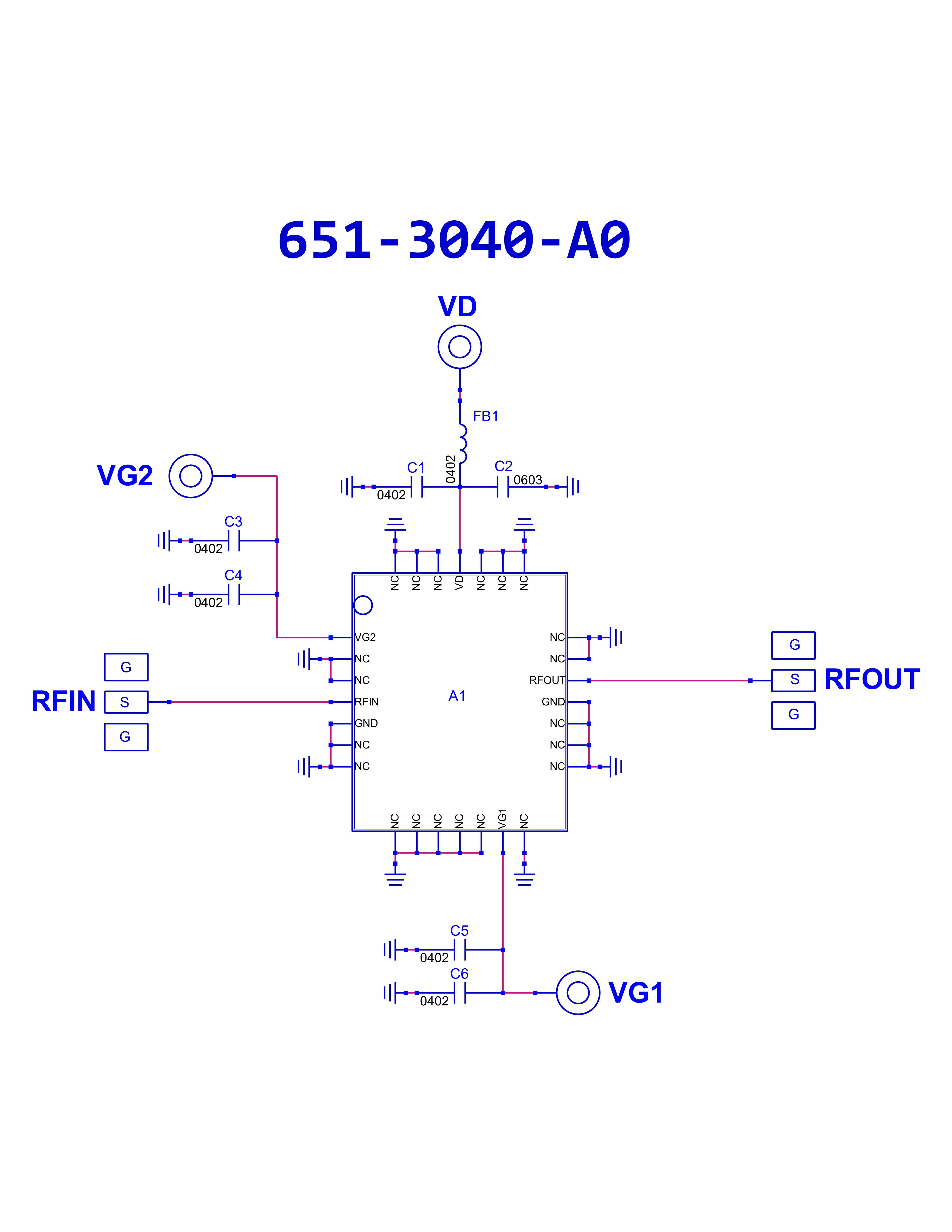

Amplifier, CHA2595-QDG [PCB: 3043]

Product Page

 N/A UMS

Spec Sheet

 N/A CHA2595-QDG

Low Freq

 N/A 27500 MHz

High Freq

 N/A 43500 MHz

Gain

 N/A 19.5 dB

NF

 N/A 2.3 dB

P1dB

 N/A 11 dBm

IP3

 N/A 20 dBm

Voltage

 N/A 3.3 V

Current

 N/A 61 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1=2=3 = -1V
2. Apply VD = +3.3V
3. Adjust VG1=2=3 more positive until IDQ reaches 60mA
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1=2=3 to -1V
3. Adjust VD to 0V
4. Adjust VG1=2=3 to 0V

Part Number

 N/A XR-D783-0404D
