XM-D781-0404D
XR-D781-0404D ROHS

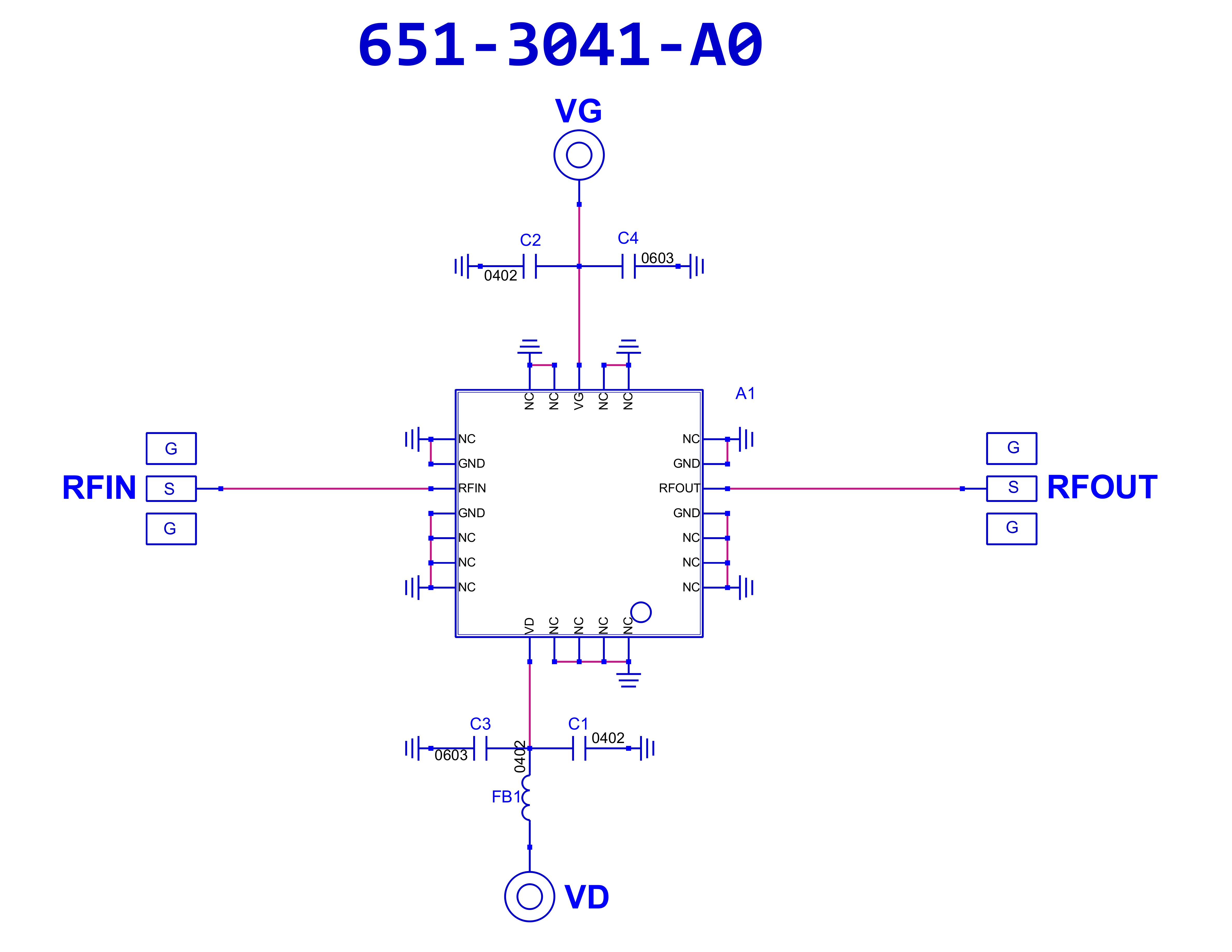

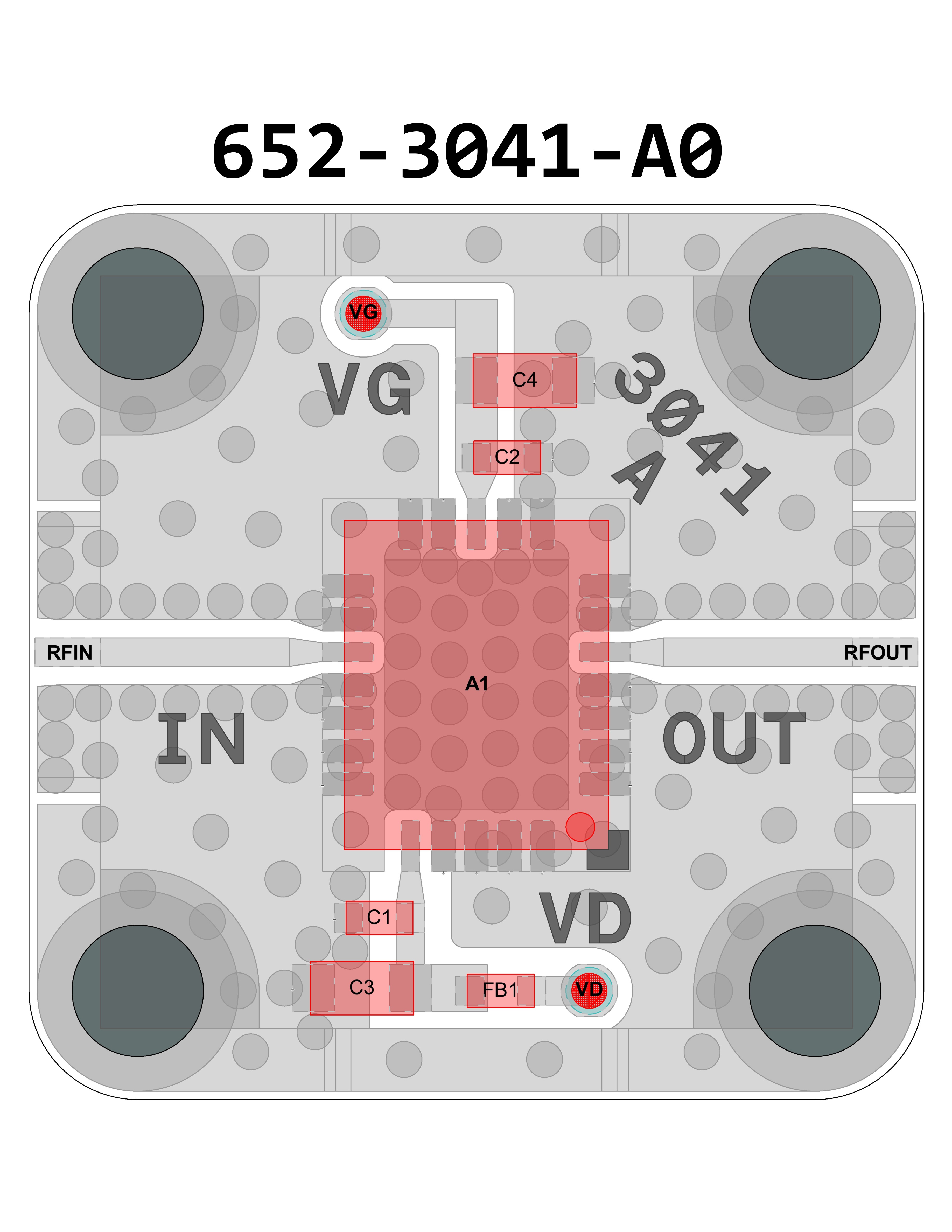

Amplifier, CHA2110-QDG [PCB: 3039]
Recommended Bias Controller: XM-E2R3-0404D-SP

Product Page

 N/A UMS

Spec Sheet

 N/A CHA2110-QDG

Low Freq

 N/A 7000 MHz

High Freq

 N/A 12000 MHz

Gain

 N/A 19 dB

NF

 N/A 1.2 dB

P1dB

 N/A 10 dBm

IP3

 N/A 21 dBm

Voltage

 N/A 4 V

Current

 N/A 45 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +4V
Verify ID ~45mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D781-0404D
