XM-D6C7-0304C-01
XR-D6C7-0304C-01 ROHS

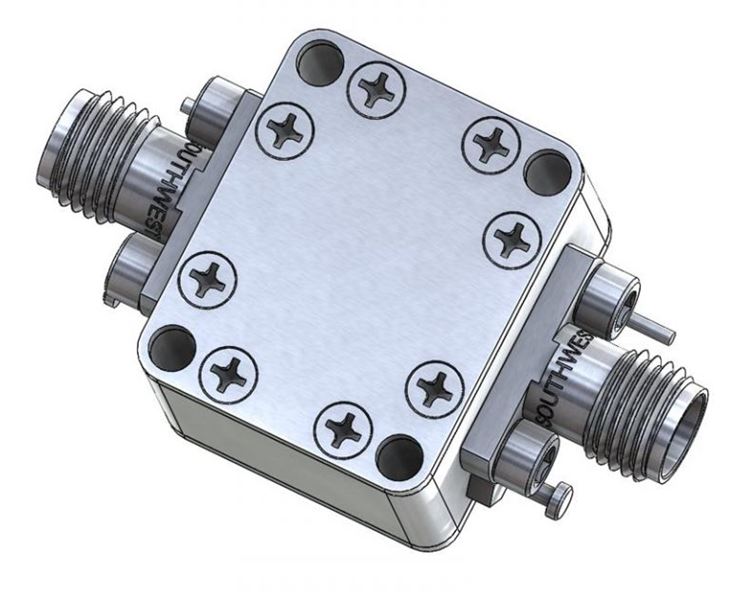

Amplifier, AGLNA145245 [PCB: 2869]
Connectorized Housing

Product Page

 N/A AmpliTech

Spec Sheet

 N/A AGLNA145245

Low Freq

 N/A 17000 MHz

High Freq

 N/A 22000 MHz

Gain

 N/A 23 dB

NF

 N/A 1.2 dB

P1dB

 N/A -4 dBm

Voltage

 N/A 0.5 V

Current

 N/A 36 mA

Connector Series

 N/A SuperSMA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply +VIN = +2V min.
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust +VIN to 0V

Part Number

 N/A XR-D6C7-0304C-01
